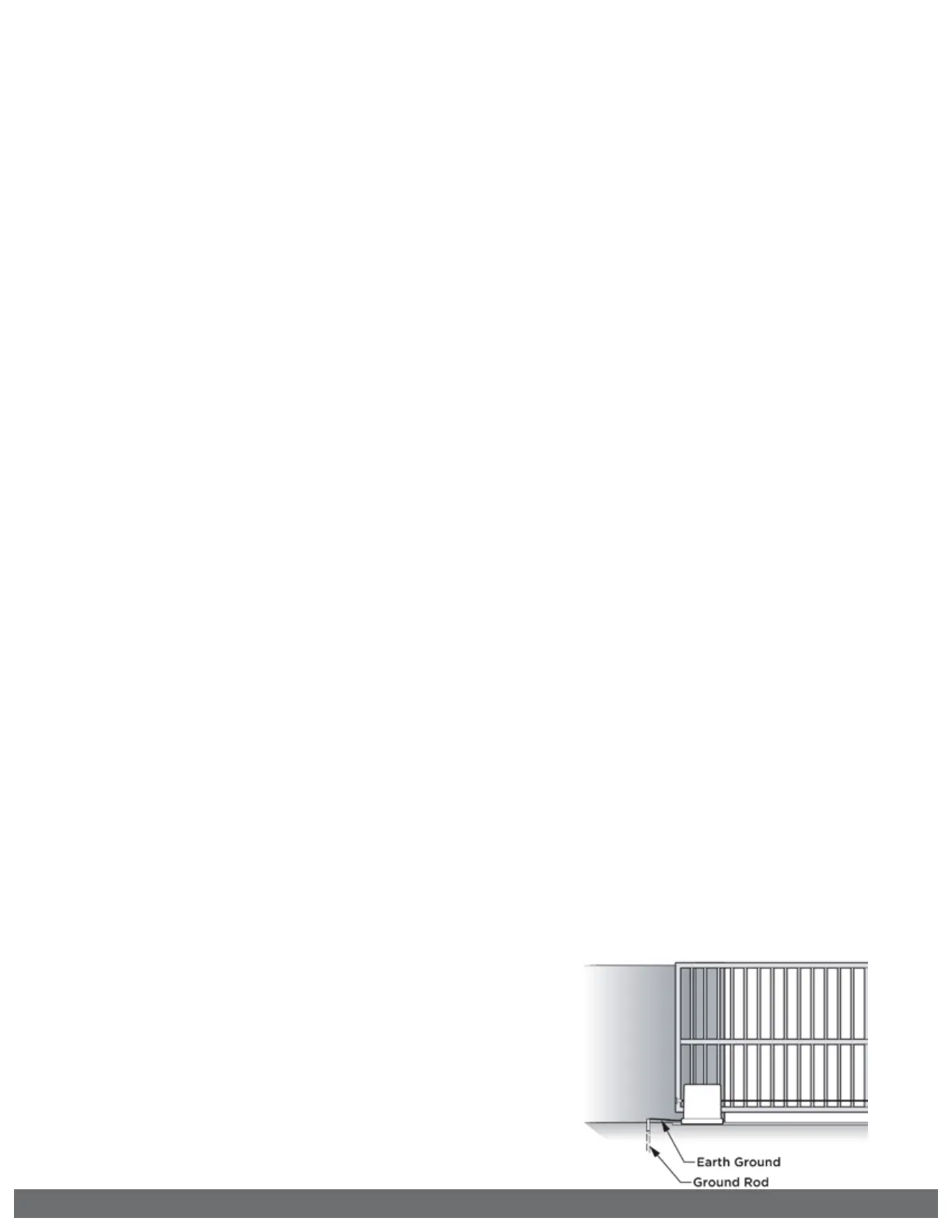

Tips for proper ground installation:
•
Use a ground rod to provide a ground reference.
•
Consult your city code and be aware of under-ground
services in the site of the gate operator to prevent
inconveniences.
•
Always use a single bonding point for grounding.
•
All ground wires must be as short and as thick as
possible.
•
Prevent unnecessary turns or loops in all ground
wires.
Solar Panel Safety Precautions
! Installation must be performed by a qualified technician.
•
Before installing your system, contact local authorities and determine the
necessary permit, installation and inspection requirements.
•
Follow all local codes and guidelines.
•
To reduce the risk of electrical shock or burns, the solar panel must be covered
with an opaque material during installation.
•
Do not touch live terminals with bare hands as they can present a risk of electrical
shock, burn or fire.
ELECTRICAL INSTALLATION
Solar Panel Care and Location
•
Where it will receive maximum sunlight throughout the year.
•
Avoid trees and buildings or obstructions, which could cast shadows on the panel.
•
South facing and tilted at an inclined angle that is equal to latitude.
•
If dirt build-up becomes excessive, clean the glass with a soft cloth using a mild
detergent and water.
•
Install solar panels in the following conditions:
•
Operating temperature: -40°F to 185°F
•
Humidity: Below 85RH%
•
Wind pressure: Below 50.12lb / ft² (2400Pa)
•
Snow load pressure: Below 112.76lb / ft² (5400Pa)
•
DO NOT install the solar panel near open flames or flammable materials.
•
DO NOT install the solar panel where there is a risk of being immersed in water or
continually exposed to water from a sprinkle, fountain, etc..
Solar Panel Installation (per article 690 of ANSI/NFPA 70)
•
Use appropriate methods to mount the solar panel. Fall of the panel from high
places will cause death, injury or damage.
•
The solar panel must be mounted on a post with a supporting structure to support
wind and snow loads rated for use by the appropriate local or civil codes.
•
Use stainless steel washers between the panel and the supporting frame to prevent
electrolysis corrosion.
•
Use conduit and the appropriate wire type for outdoor applications.
•
Properly ground solar panel and operator according to NEC code.
•
Use the appropriate wire size according to distance and the maximum power
(Watt) rating of the solar panel, or panels combined.
•
Use at least 16 AWG photovoltaic cable or 90°C, sunlight and moisture resistant
direct burial cable or better.
•
WARNING - This charge controller must be used with an external GFDI device as
required by article 690 of the National Electric Code for the installation location.
To Next Page
