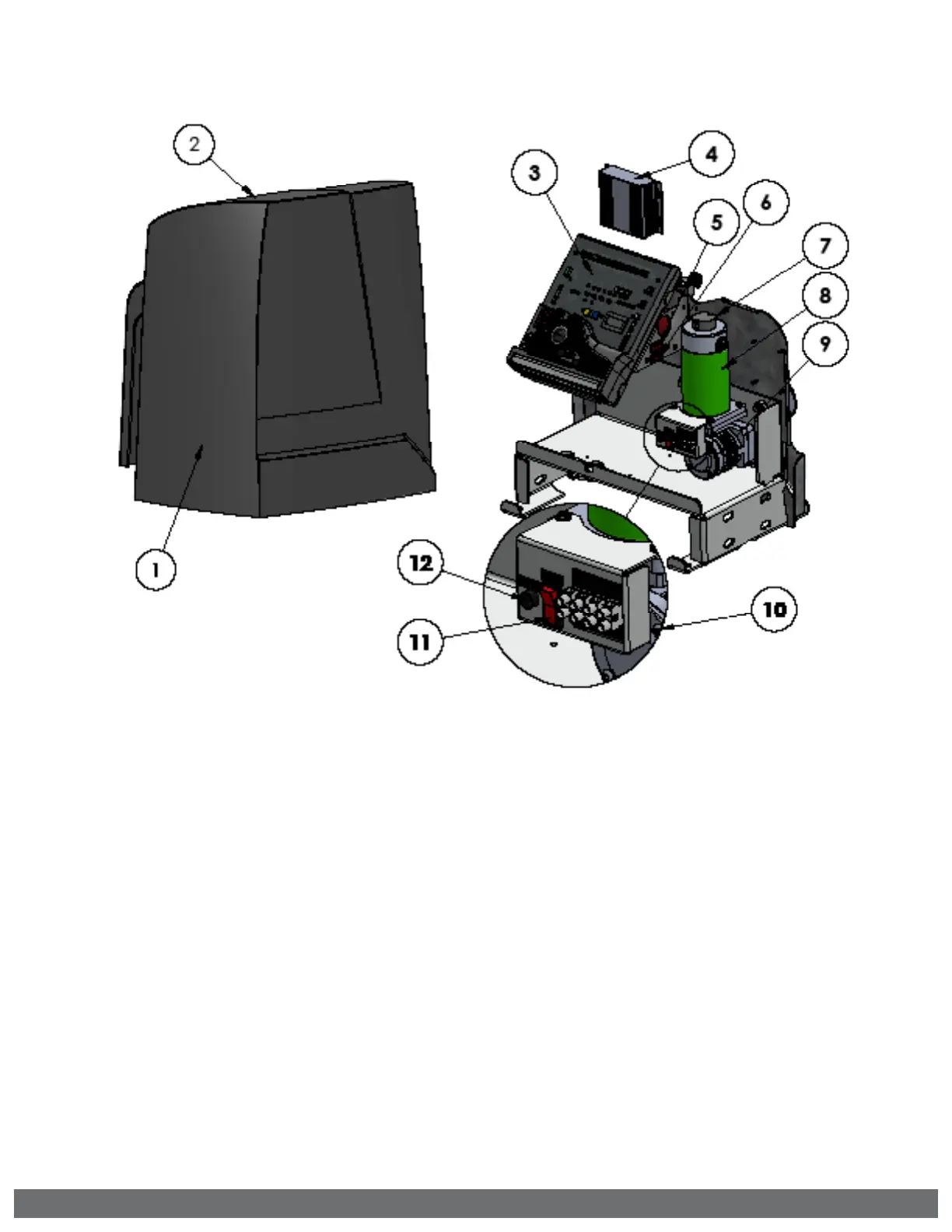

OPERATOR REFERENCES:
1.
OPERATOR COVER
2.
COVER LOCK
3.
SOLAR CONTROL BOARD
4.
SOLAR CHARGER
regulates and distributes solar power
5.
MANUAL RELEASE/MOTOR SWITCH
discontinues power to the motor and allows for
manual operation of the gate
6.
POWER SWITCH
discontinues all power to the control board
7.
EPS (ELECTRONIC POSITIONING SENSOR)
sensor for the digital limits
8.
MOTOR
9.
GEAR BOX
10.
SOLAR TERMINAL BLOCK ASSEMBLY
connections for solar panels and battery
11.
SOLAR PANEL SWITCH/BREAKER
discontinues power from the solar panels to the
Solar Charger
12.
BATTERY BREAKER
resettable breaker protects the battery circuit
