IMPORTANT SAFETY INFORMATION
Secondary Entrapment Protection Requirements
IMPORTANT: SECONDARY PROTECTION MUST BE INSTALLED
•
REQUIRED BY UL 325, an approved MONITORED secondary entrapment
protection sensor is REQUIRED to be installed in all areas accessible to potential
entrapment and pinch points.
•
The installed sensor MUST be “10K Resistor Based”.
•
At least ONE monitored sensor MUST be connected.
•
You may connect up to FOUR monitored sensors, wired parallel.
•
Failure to install an approved monitored secondary entrapment protection
sensor will render the gate operator INOPERABLE until one is installed.
•
Consult the installation manual of the sensor for detailed information about the
usage, installation and maintenance.
•
This type of installation will only reverse the gate approximately 12” in the opposite
direction it was traveling when the sensor is triggered.
•
This type on installation is to protect against entrapment only and DOES NOT
reverse the gate all the way back to its limits when the photo beam is obstructed.
•
The following devices comply with UL 325 and have been tested for use with Viking
Access Systems gate operators.
Photoelectric Beam (non-contact sensor)
MILLER EDGE: 10K Resistor based model IG2
Edge Sensor (contact sensor)
MILLER EDGE: 10K Resistor based models ME110 through ME117, ME120 and ME123
! WARNING! Not Following these instructions may cause severe injury or death.

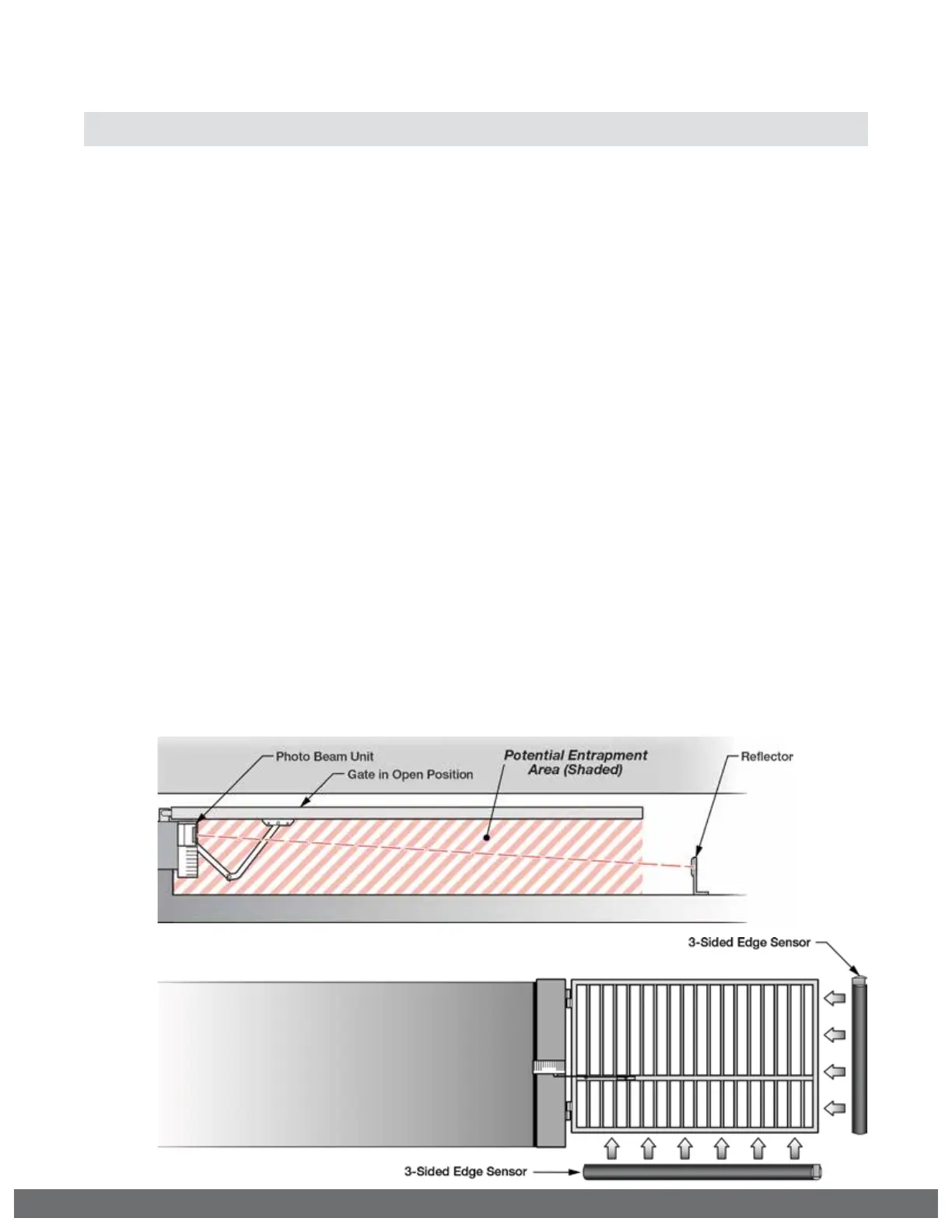

Photo Beam (non-contact sensor)
Edge Sensor (contact sensor)
