Motor Cable - Master (Single)
NOTE:
The Single Electronic Control Unit (VA-ECUSNX) is equipped to operate a single
gate motor only, and does not include a Slave Module. The steps described on page 23
do not apply for this type of application.
ELECTRICAL INSTALLATION
do not apply for this type of application.
3b
3a

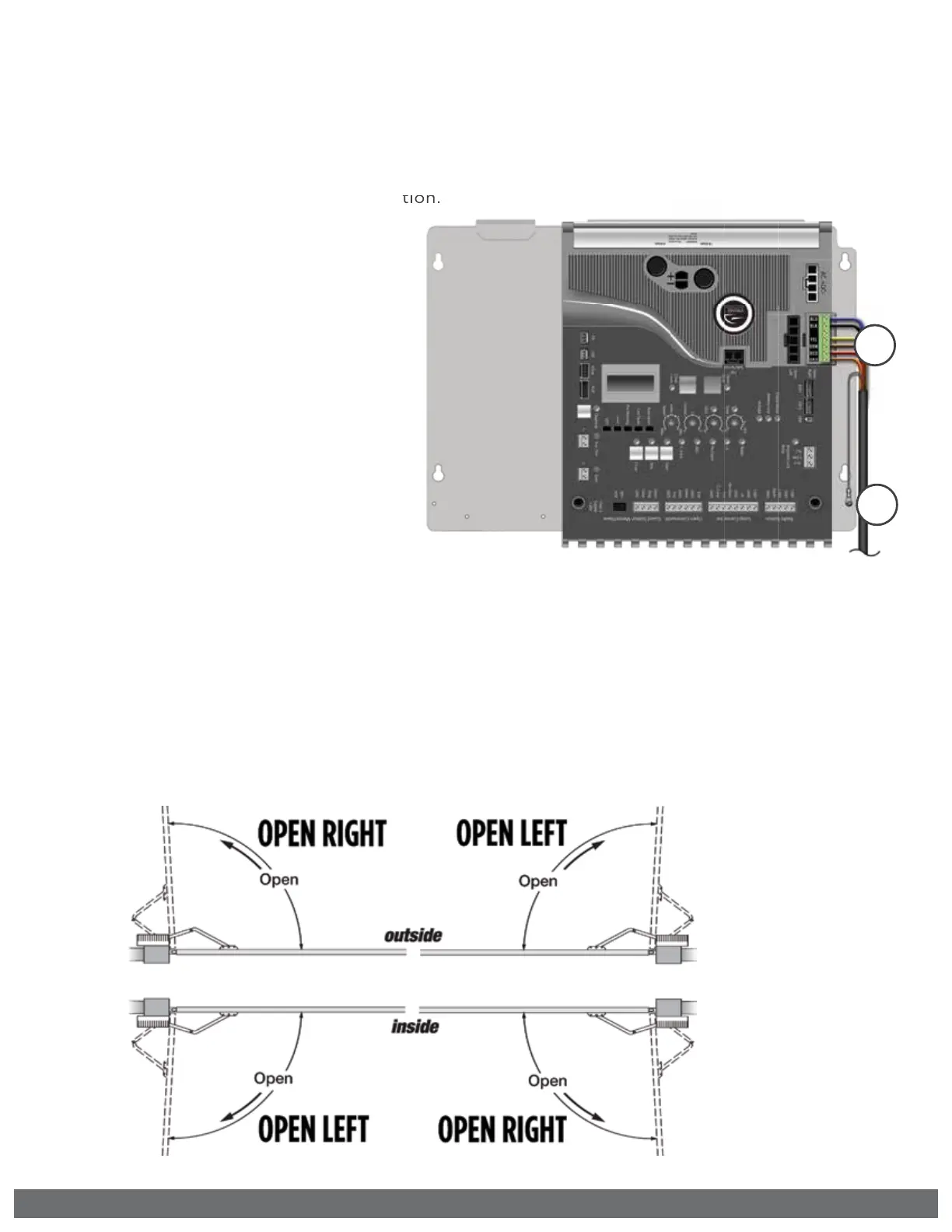

STEP 3
Master Motor:
a.
Connect motor cable to the Motor
Connector at the Master Control
Board as illustrated, according to
the printed color code.
b.
Attach the grounding wire, non
insulated, to the Board Mounting
Plate using the screw provided.
STEP 4
Master Open Left or Open Right:
Place the terminal block in the proper location for the gate opening direction.
•
“OPEN RIGHT” Connector if the gate opens Inside to the Right or Outside to the Left.
•
“OPEN LEFT” Connector if the gate opens Inside to the Left or Outside to the Right.
To Next Page
