Initial Settings
NOTE:
Installing a shunt, or jumper, on the pins will activate the feature.

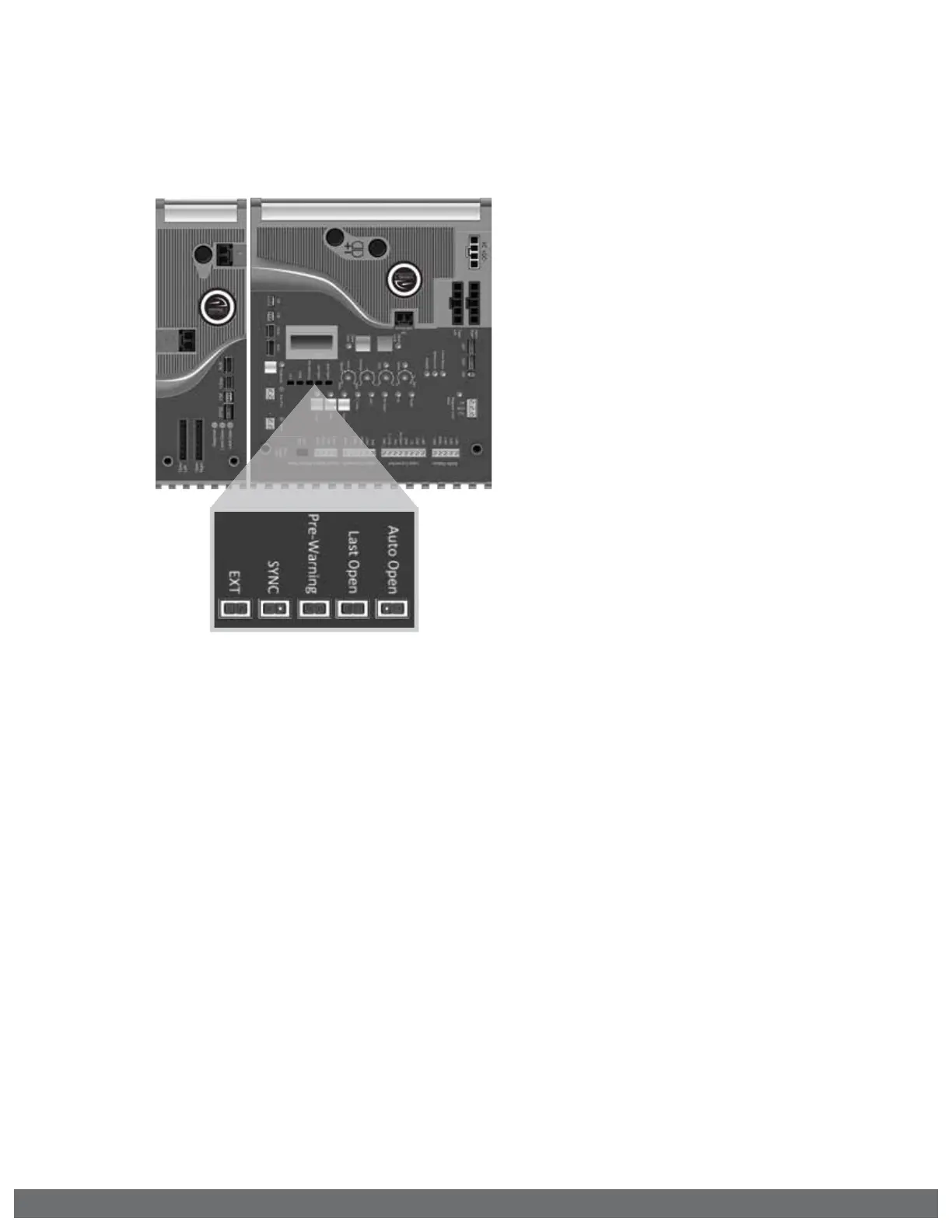

CONTROL BOARD SETUP
“Sync” Used only in conjunction with
the Viking Barrier gate operator model
B-12. Activating this feature allows for
synchronized operation with the B-12
operator. See page 35.
“Auto Open” - Power Failure Option
Opens the gate automatically during
power failure. Resumes normal operation
when power is restored.
“Pre-Warning” Initiates two options for an
audio or visual warning 3 seconds prior to
gate motion and will continue:
1.
Until gate reaches closed limit:
“Magnetic Lock” terminals provide a
contact between “COM” and “N.O.”.
2.
While gate is moving:
“AUX. PWR” terminals provide 24VDC.
“EXT” Available for future developments.
“Last Open” - Power Failure Option
Opens the gate automatically when the
battery backup voltage is critically low.
