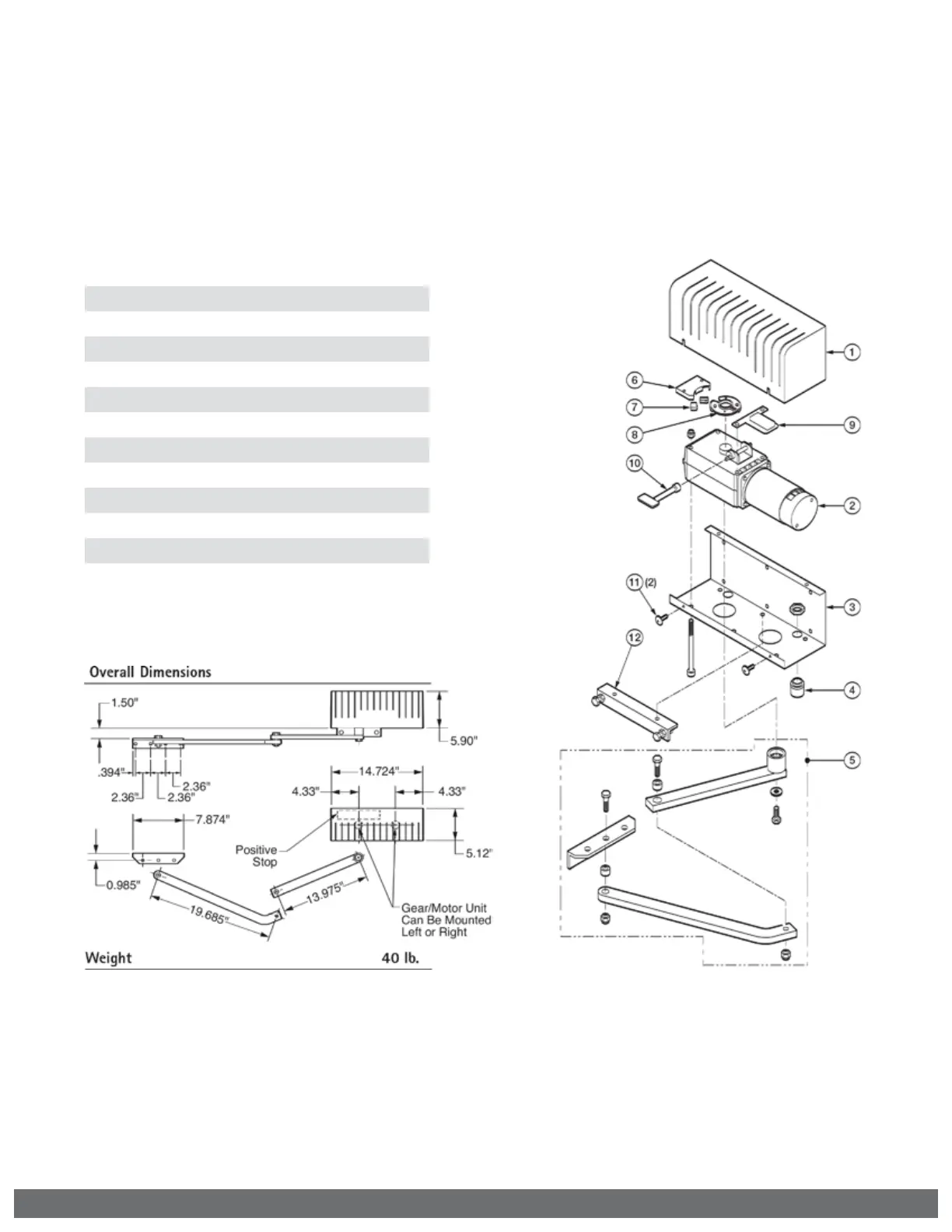

PARTS DIAGRAM - OPERATOR:
Item Description Part No.
1 Cover VAX9PC
2 Motor/Gear Assembly VX9MOSLR
3 Chassis VAX9CH
4 Strain Relief (X-9) VAX9ST
5 Arm Assembly, articulated VAX9AA
6 Limit Switch Holder VAX9LSH
7 Limit Switch (2) VAX9LS
8 Limit Cam & Holder VAX9LCS
9 Terminal Block (Motor) VAX9TB
10 Key Release VAX9KR
11 Cover Screw (2) VAX9CS
12 Positive Stop Extension VAX9PSE
