20

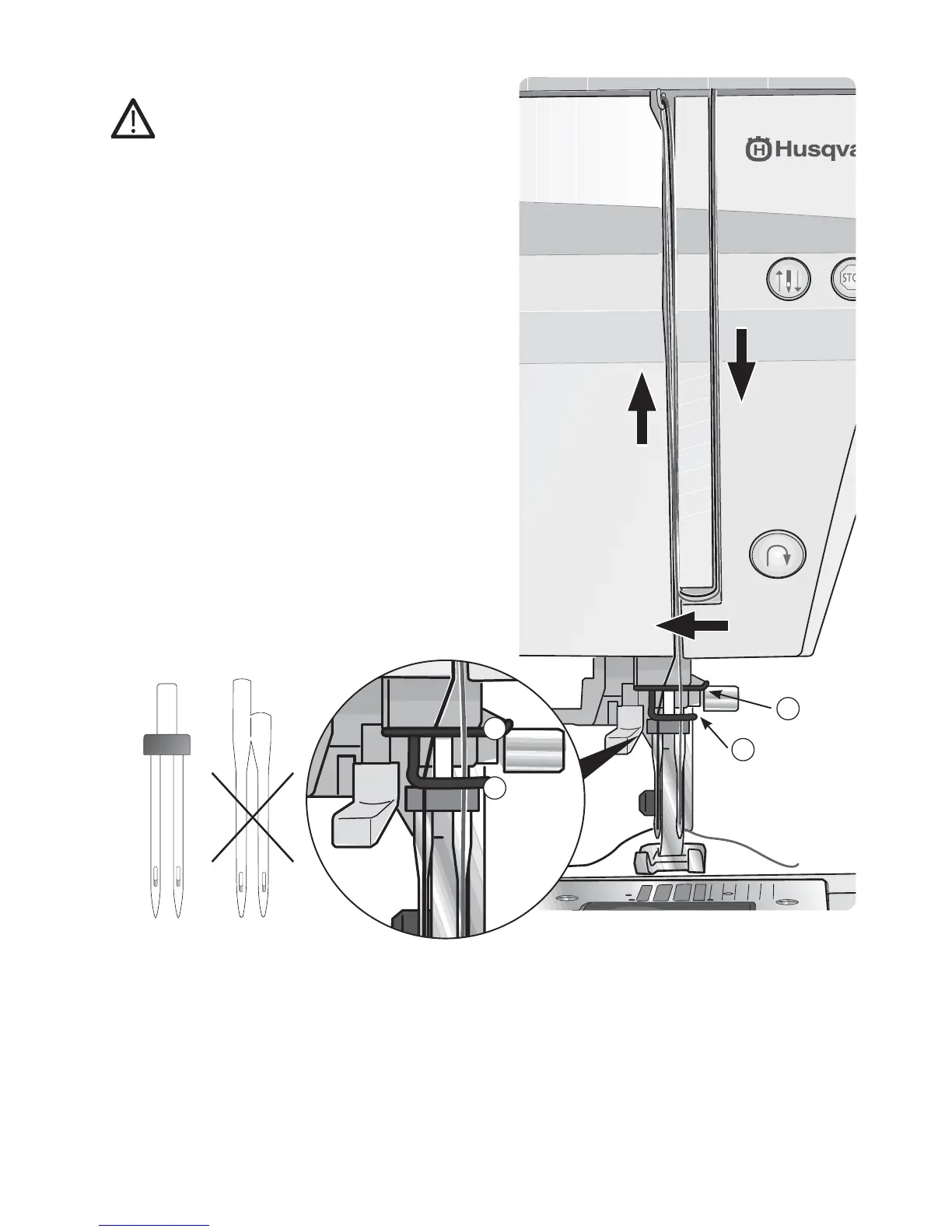

Threading for Twin Needle
Turn off the main switch
1. Insert a twin needle.
2.
LEFT NEEDLE: Thread the machine as
explained on page 18 and thread the left
needle.
3. Pull up the vertical spool pin and place a
spool cap on the spool pin. Place a thread
spool or wind a bobbin with the thread
you are going to use as the second upper
thread.
4.
RIGHT NEEDLE: Thread the machine as
before but this thread should lie outside
the upper needle thread guide (A) and
behind the lower needle thread guide (B).
Thread the right needle manually.
Note: The maximum twin needle width to be used on
this machine is 2.5mm.
Note: Only use symmetrical twin needles (C). Do not
use this type of twin needle (D), since it may damage
your sewing machine.
CUTTING THE THREAD
Once you have fi nished sewing you can cut
the thread by raising the presser foot and draw
the threads to the left side of the machine and
cut them using the thread cutter.
A
B
DC
A
B
