10. EXAMPLES OF TYPES OF INSTALLATION
10.1 Radio transceiver base station + Radio relay actuator

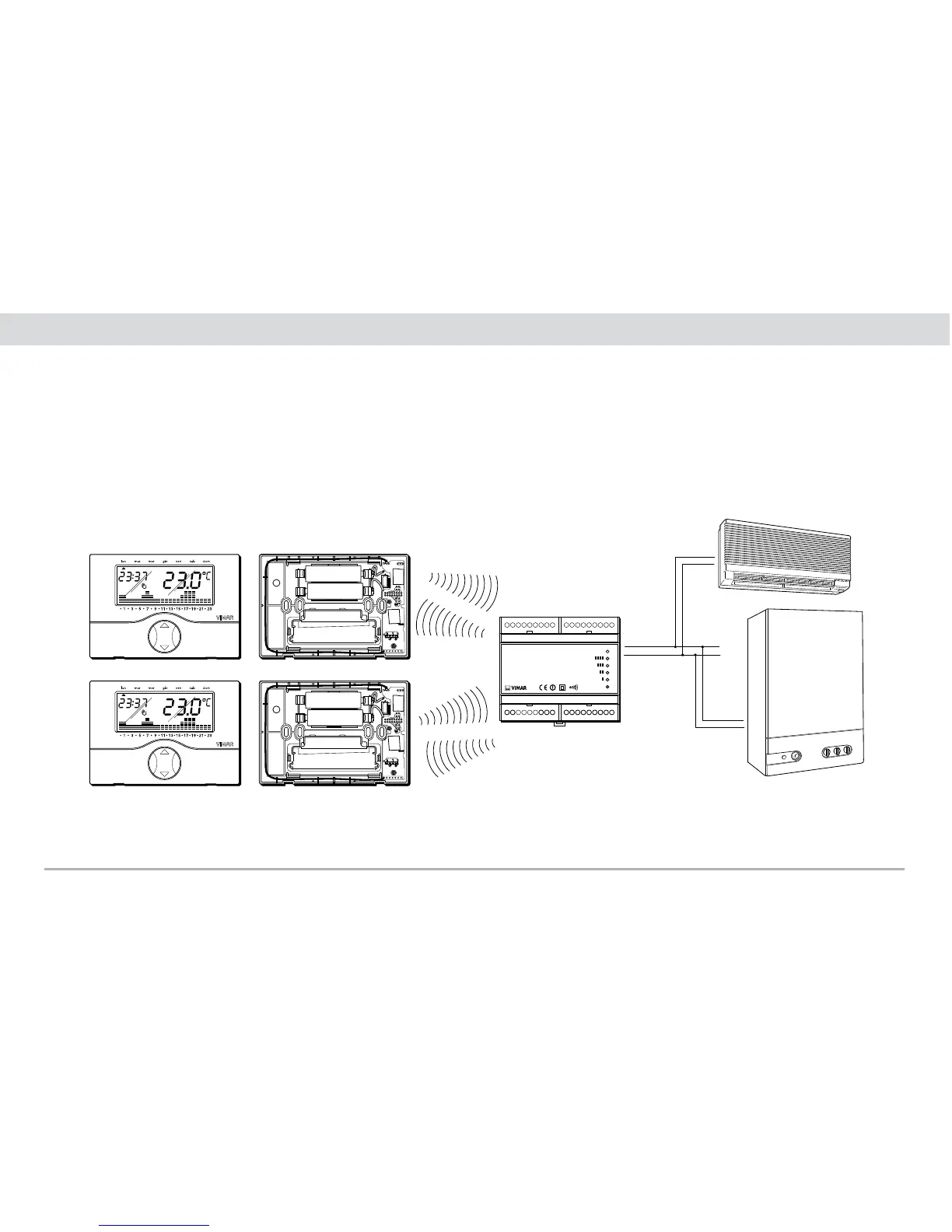

10.1.1 Block diagram
C
NO NC
C
NO
L
N NC
C
NO NC
C
NO NC
out 2out 1 out 3 out 4
ON
P
01934 ATTUATORE RF 4 CANALE
SUPPLY:
230 V~
50-60 Hz
4 OUTPUTS:
1B
6(2) A 250 V~
Programmable thermostat + Radio transceiver base station
Radio relay actuator
4-channel
Climate control system
Wired
connection
Radio
connection
Fig. 10.1.1
