DEUTSCH - 19
10. BEISPIELE ZU INSTALLATIONSARTEN
10.1 Zweiweg-Funkeinheit + Funkfrequenz-Relaiszuschalter

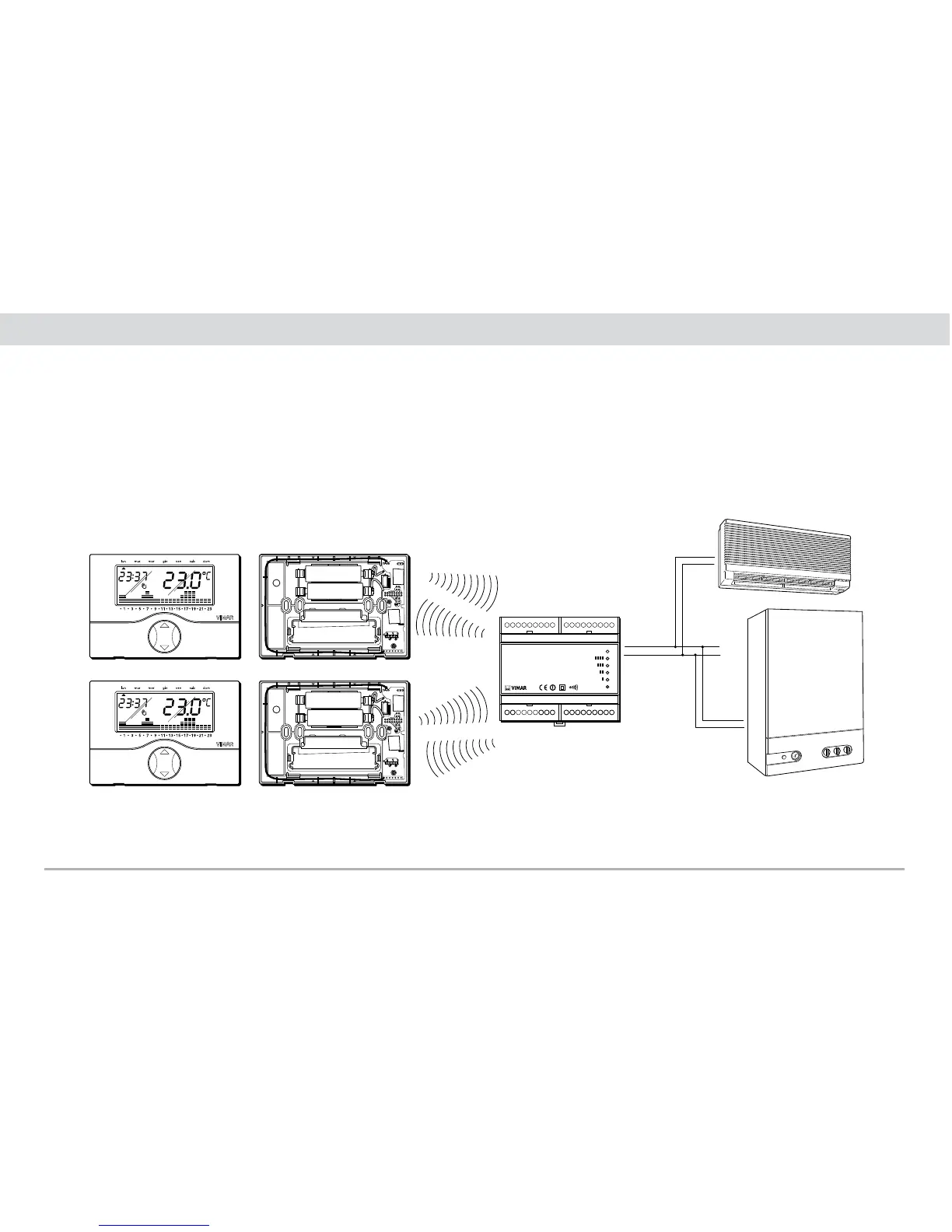

10.1.1 Funktionsschema
C
NO NC
C
NO
L
N NC
C
NO NC
C
NO NC
out 2out 1 out 3 out 4
ON
P
01934 ATTUATORE RF 4 CANALE
SUPPLY:
230 V~
50-60 Hz
4 OUTPUTS:
1B
6(2) A 250 V~
Chronothermostat + Zweiweg-Funkeinheit
Funkverbindung
mit 4 Kanälen
System zur Klimatisierung.
Verdrahtung
Funkfrequenz-
Relaiszuschalter
Fig. 10.1.1
