Viofo A329 - Product Diagram

7
6
5
4
3
1
2

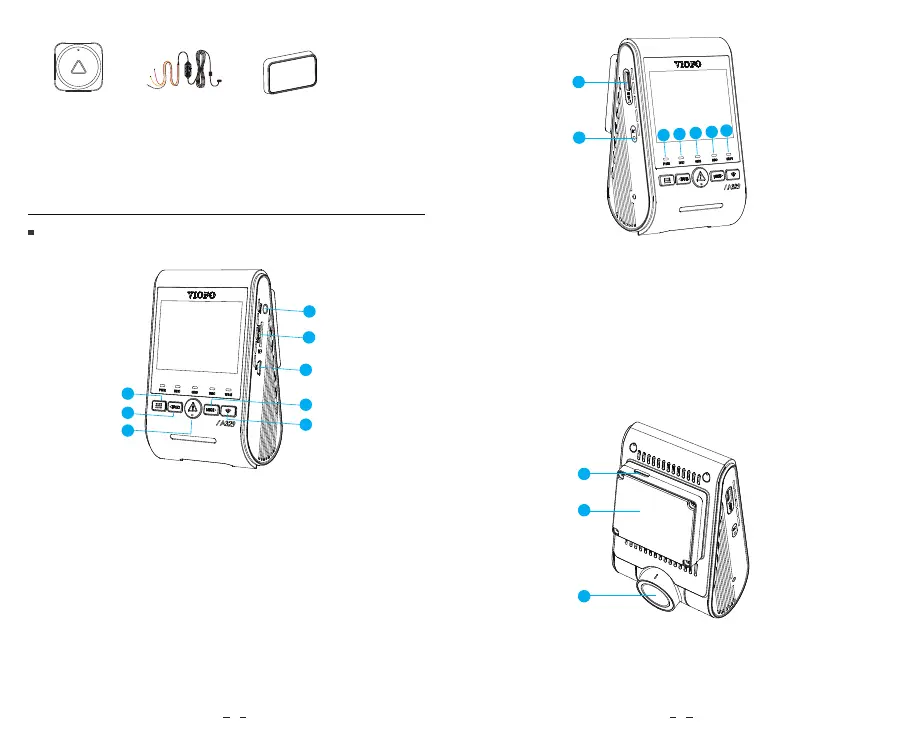

Product Diagram
1 - Menu / Power On|Off
2
- Menu Up / Recording Start | Stop
3
- Menu Confirm / Video Protect / Playback
4
- Menu Down / Microphone On | Off
5
- Wi-Fi On | Off
6 - Rear Camera Port
7 - Memory Card Slot
8 - Micro HDMI Port
1 - Power In (not support parking mode via a hardwire kit) /
Data Cable Port / SSD Connection Port
2 - Reset Button
3 - Power Status Indicator
4 - Recording Status Indicator
5 - GPS Status Indicator
6 - Microphone Status Indicator
7 - Wi-Fi Status Indicator
1 - USB Power Port
2 - Mount (GPS Module)
3 - Lens
Front Camera (Main Unit)
1
2
3
2 3
1
2
3
5
4
7
Bluetooth
Remote Control
HK4
Hardwire Kit
CPL for
Rear Camera
6
8
