Viper 3000 Installation Guide

16
©
2005
Directed Electronics, Inc.
Optional Sensors, 4-Pin White Plug
There are two optional sensor input ports. Optional sensors which can be used are field, tilt, ultra-
sonic, or glass breakage. Alarm trigger inputs shorter than 0.8 seconds will trigger the Warn Away
®
response, while inputs longer than 0.8 seconds will trigger full alarm sequence and report Zone 4
or Zone 7 for multiplex input.
NNOOTTEE::
The ground for the optional sensors is now controlled by the GWA.
Programming Jumper
Parking Light
Flash Jumper
+
-
Access Panel

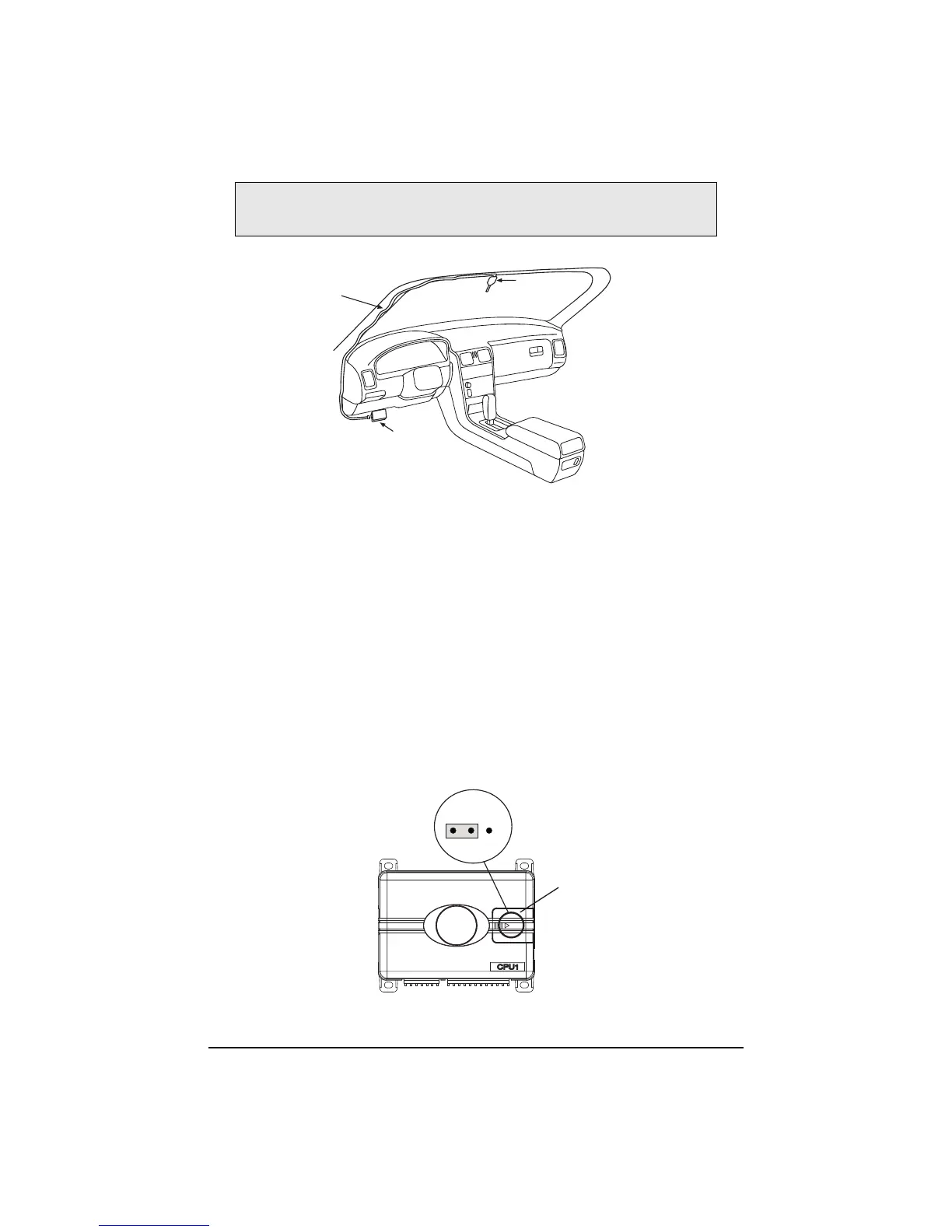

TRANSCEIVER/
ANTENNA
CONTROL
MODULE
TRANSCEIVER/ANTENNA
CABLE
IMPORTANT! To achieve the best possible range, DO NOT leave the antenna cable
bundled under the dash. Always extend the cable full length during installation,
regardless of the antenna mounting location.

Viper 3000 Specifications

General

Model	Viper 3000
Category	Car Alarm
Remote Control	Yes
Number of Remotes Included	2
Door Lock Control	Yes
Trunk Release	Yes
Panic Mode	Yes
Valet Mode	Yes
Remote Start Ready	Yes
Range	1/4 Mile
