2005
Directed Electronics, Inc.
39

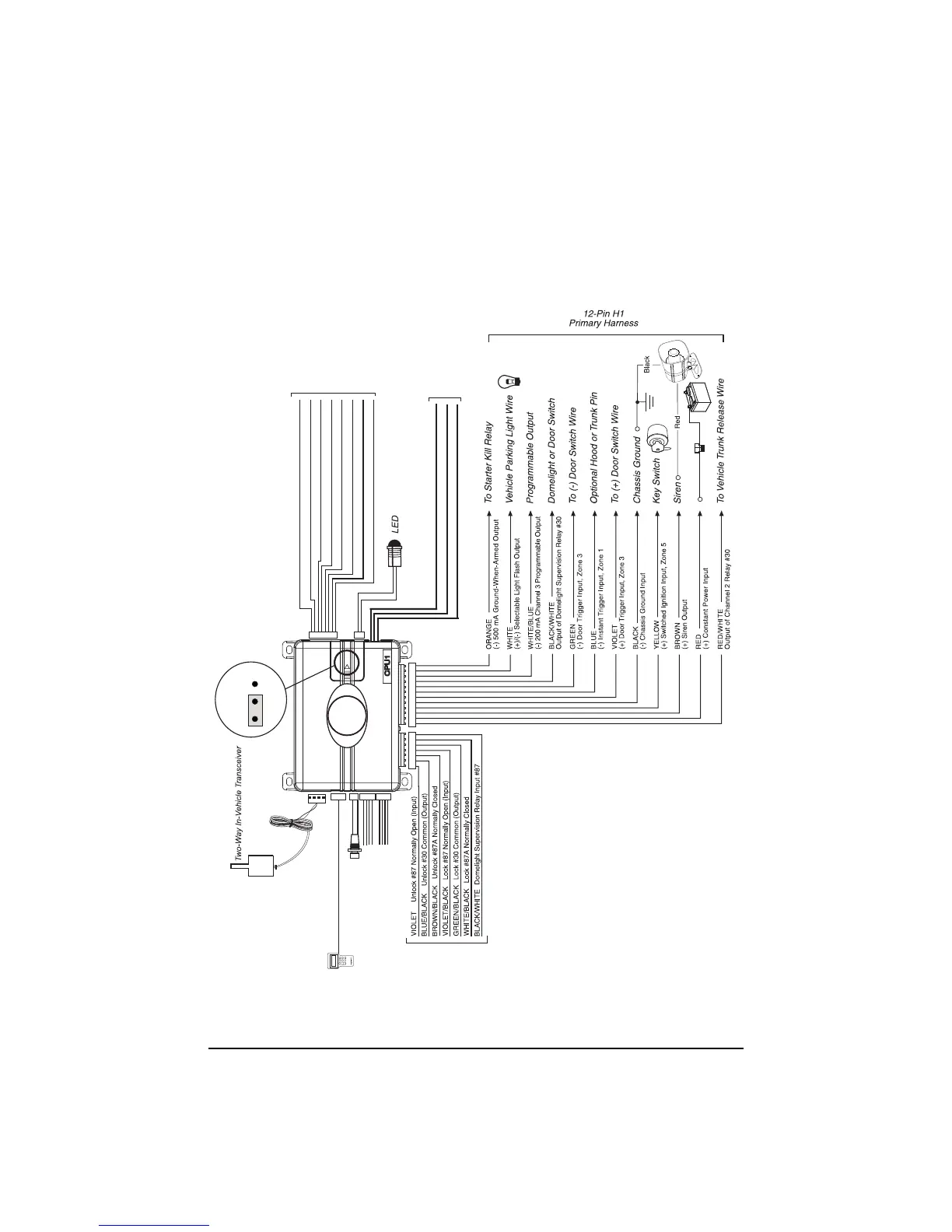

Wiring Quick Reference Guide
GREEN/WHITE (30) Starter Wire Common
GREEN (87) Starter Wire Normally Open
GREEN/BLACK (87A) Starter Wire Normally Closed
LIGHT GREEN/BLACK (-) Factory Disarm Output
LIGHT BROWN (-) Horn Honk Output
VIOLET/BLACK (-) CH4 Output
WHITE/BLACK (-) CH5 Output
GRAY/BLACK (-) CH6 Output
ORANGE/BLACK (-) Retained Accessory Output
GREY (-) Hood Pin Input (Zone 6)
LIGHT BLUE (-) Second Unlock
Valet/Program Button
Sensor 2
Sensor 3
998T Bitwriter
®
Parking Light
Flash Jumper
+
-
8-Pin H2
Auxiliary Harness
Immobilizer
7-Pin H3
Door Lock Harness
