9.8 REGULATING THE REAR OUTPUTS EQUALIZER (EXT. OUT EQUALIZER
function)
The instrument is equipped with an internal equalizer, to adjust the sound of the internal speakers of the
organ, and also with external equalizer, each one dedicated to one of the output of the rear connection panel.
Adjusting the parameters of each output separately makes the simulation of real wind chests even more
realistic and accurate. These equalizers work in real time and can be adjusted anytime and quickly. For more
sound controls and panning see par. 9.11 and 9.10.
To access this menu, select the EXT. OUT EQUALIZER field under the SET-UP menu.

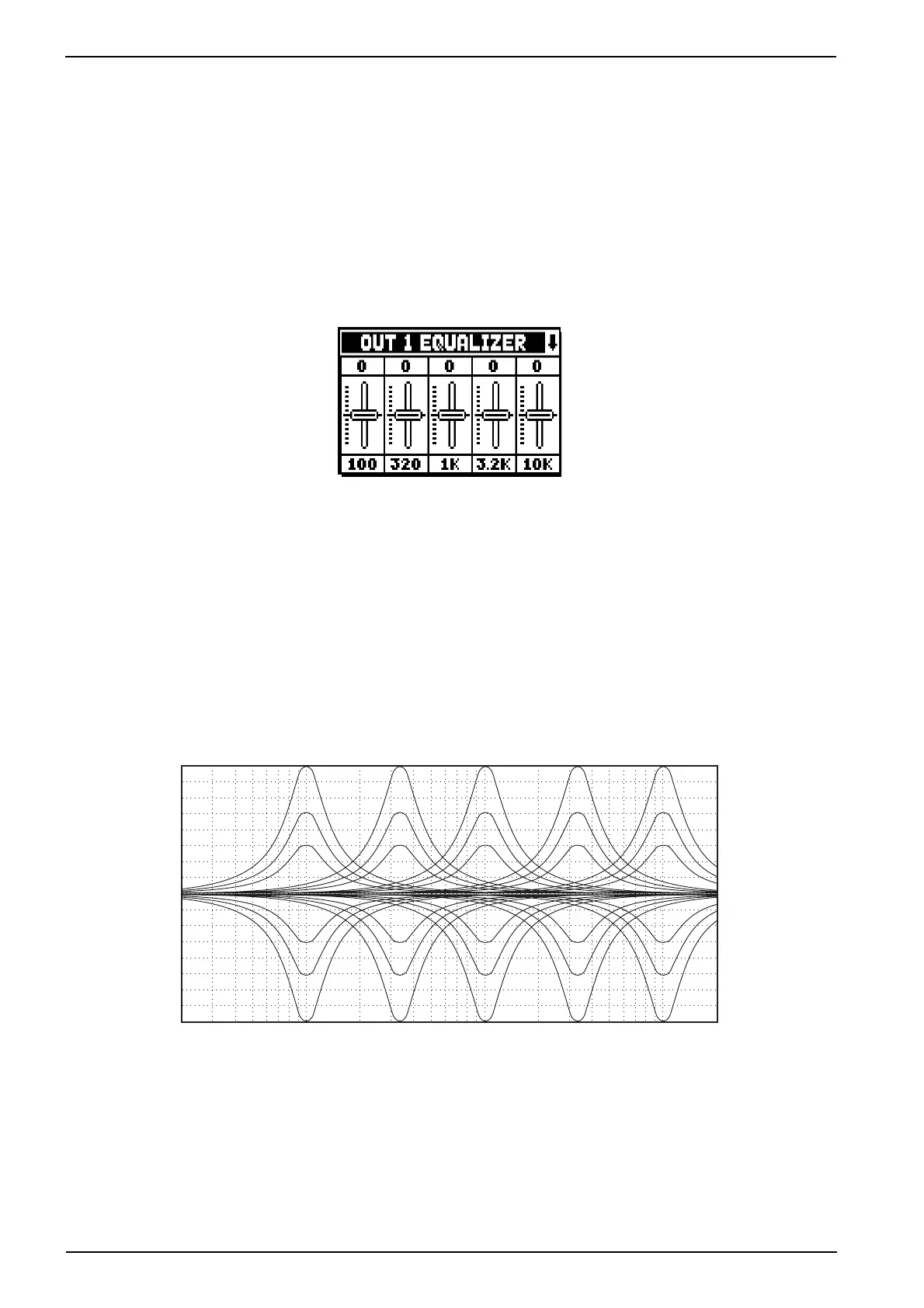

The screen looks like the one of the internal equalizer (see par. 9.3), with the only difference that on the top
of the display will appear the name of the output that you are setting.
To select a different external equalizer use the [VALUE +] and [VALUE -] buttons, when this field is selected.
In the lower part of the screen you will see the frequencies of the equalizer’s five bands. To move the cursor
from one band to the other, press the [FIELD ] and [FIELD ] buttons.
On the top of the screen the gain value of the selected band is displayed. The bands can be adjusted from +8
dB to -8 dB.
The following graph shows the equalizer functioning.
