Viscount UNICO 800 Reference Manual

53
Viscount Physis OrgansReference Manual
9.12 CONFIGURING THE AUDIO OUTPUTS ON THE REAR
(EXT. OUT CONFIG function)
Thanks to this function, the PROGRAMMABLE OUTPUTS can be configured, so as to manage the
Antiphonal signal (controlled through the AMPLIFICATION tabs), the general signal or just the reverberated

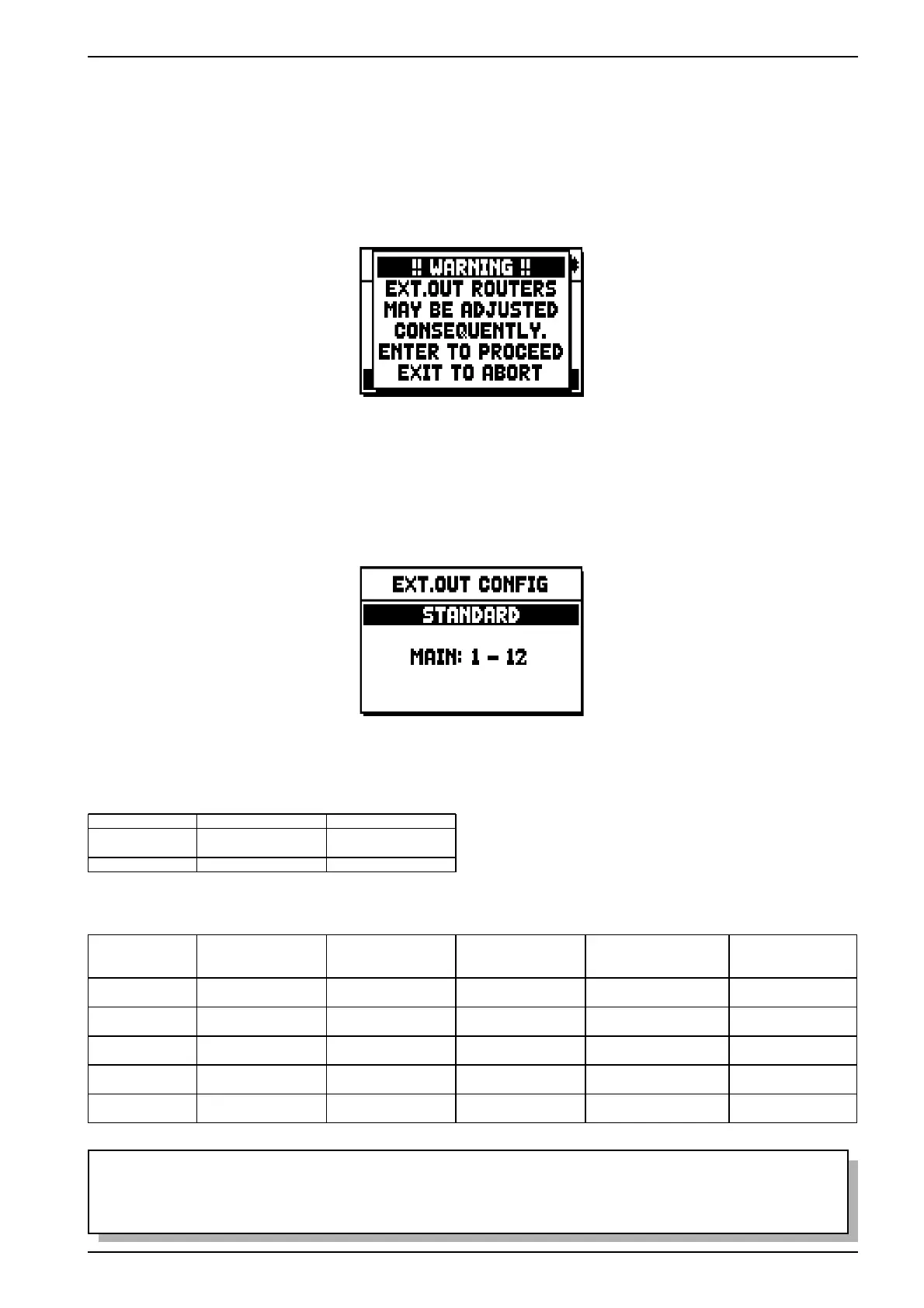

signal of the instrument. Select the EXT. OUT CONFIG. field under the SET-UP menu. The following
pop-up message will appear:
which means that the external panning (see par- 9.10) of certain stops might be modified automatically. Stops
placed between outputs [2] and [3] (in organs equipped with 4 outputs), [8] and [9] (in organs equipped with
12 outputs) or between [16] and [17] (in organs equipped with 20 outputs), will be automatically set as Mono
on the first output of the previously configured panning. Press [EXIT] to abort the automatic panning
adjustment and return to the SET-UP menu. Press [ENTER] to confirm - the display will show:
Functioning of different modes is described in the tables below.
Models equipped with 4 audio outputs:
Models equipped with 12 or more audio outputs:
NOTE
In the models equipped with 4 audio outputs, it is not possible to configure the registers output
router in the EXTERNAL OUT ROUTER function selecting the GENERAL+REVERB outputs mode.
MODE
OUTPUTS 1-8
(or 1-16)
OUTPUTS 9-10
(or 17-18)
OUTPUTS 11-12
(or 19-20)
TAB AMPLIFICAT.
[CONSOLE ON]
(if present)
TAB AMPLIFICAT.
[EXT. SPEAKER ON]
(if present)
STANDARD
As set in Ext. Router
Conf. function.
As set in Ext. Router
Conf. function.
As set in Ext. Router
Conf. function.
Internal amplification Outputs 1-12 (or 1-20)
GENERAL-REVERB
As set in Ext. Router
Conf. function.
General signal Reverberated signal only Outputs 1-8 (or 1-16) Outputs 9-12 (or 17-20)
ANTIPHONAL
As set in Ext. Router
Conf. function.
As set in Ext. Router
Conf. function.
As set in Ext. Router
Conf. function.
Outputs 1-8 (or 1-16) Outputs 9-12 (or 17-20)
GENERAL-ANTIPH.
As set in Ext. Router
Conf. function.
General signal
As set in Ext. Router
Conf. function.
Outputs 1-8 (or 1-16) Outputs 9-12 (or 17-20)
ANTIPH.-REVERB
As set in Ext. Router
Conf. function.
As set in Ext. Router
Conf. function.
Reverberated signal only Outputs 1-8 (or 1-16) Outputs 9-12 (or 17-20)
MODE OUTPUTS 1-2 OUTPUTS 3-4
STANDARD
As set in Ext. Router
Conf. function.
As set in Ext. Router
Conf. function.
GENERAL-REVERB General signal Reverberated signal only
