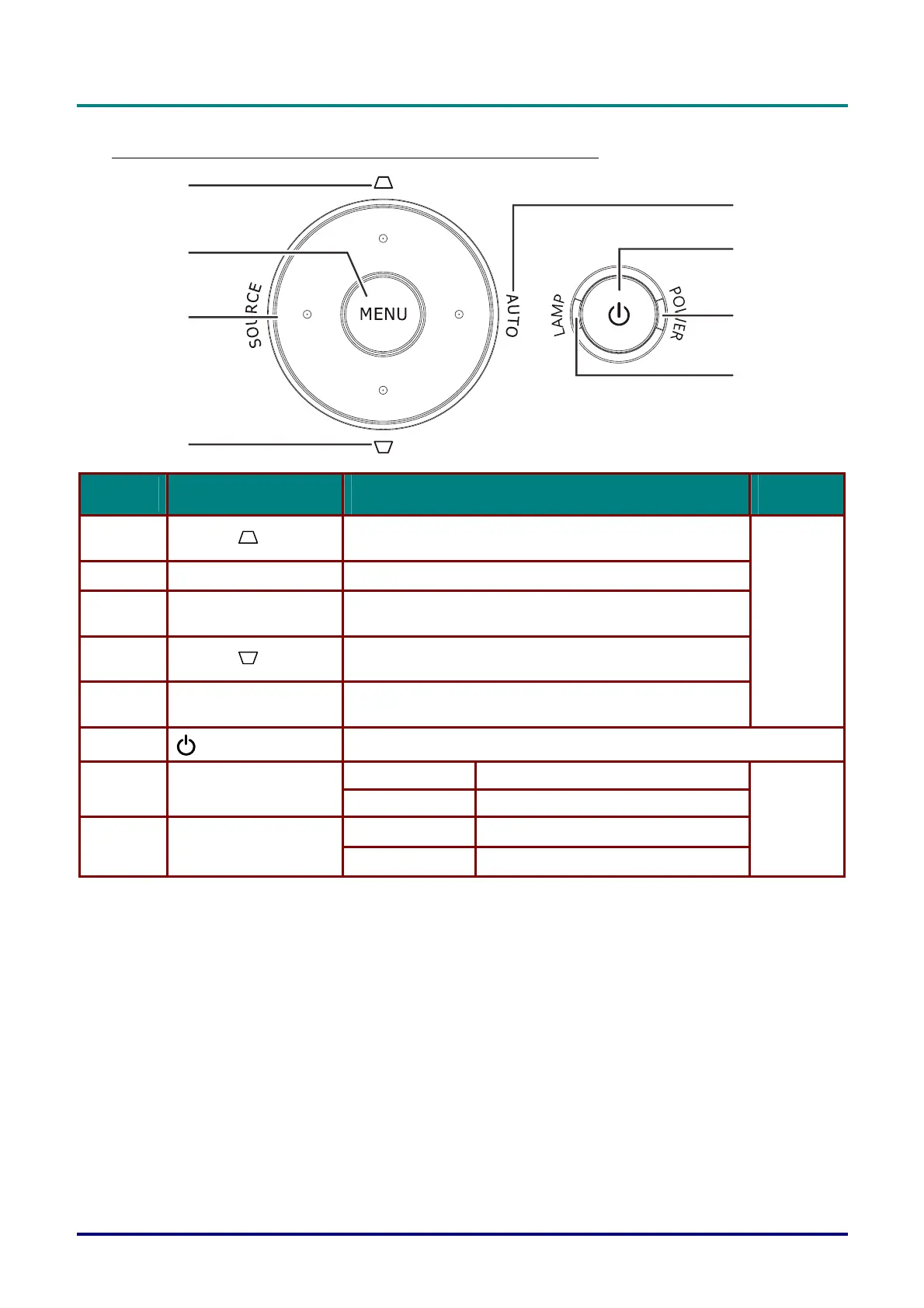

Top view—On-screen Display (OSD) buttons and LEDs
1
2
3
4
5
6
7
8
ITEM LABEL DESCRIPTION SEE PAGE
1.
Keystone
Navigates and changes settings in the OSD
Quick Menu – For Keystone
2.
MENU Opens and exits OSD menus
3.
SOURCE
Navigates and changes settings in the OSD
Enter the Source menu
4.
Keystone
Navigates and changes settings in the OSD
Quick Menu – For Keystone
5.
AUTO
Navigates and changes settings in the OSD
Optimizes image size, position, and resolution
15
6.
(Power button)
Turns the projector On or Off.
Solid Blue Power On , Standby, Lamp Lit
7.
POWER LED
Flashing Blue System Initialized / Cooling / Error code
Solid Red Lamp Fail.
8.
LAMP LED
Flashing Red Error code
40
