7.
Reverse steps 1 to 6 to install
the new lamp module.
While installing, align the
lamp module and ensure it is
level to avoid damage.
Note:
The lamp module must sit
securely in place before
tightening the screws.
The lamp connector must be
connected properly and place
as drawing before Lamp
compartment cover
installation back.
Warning:

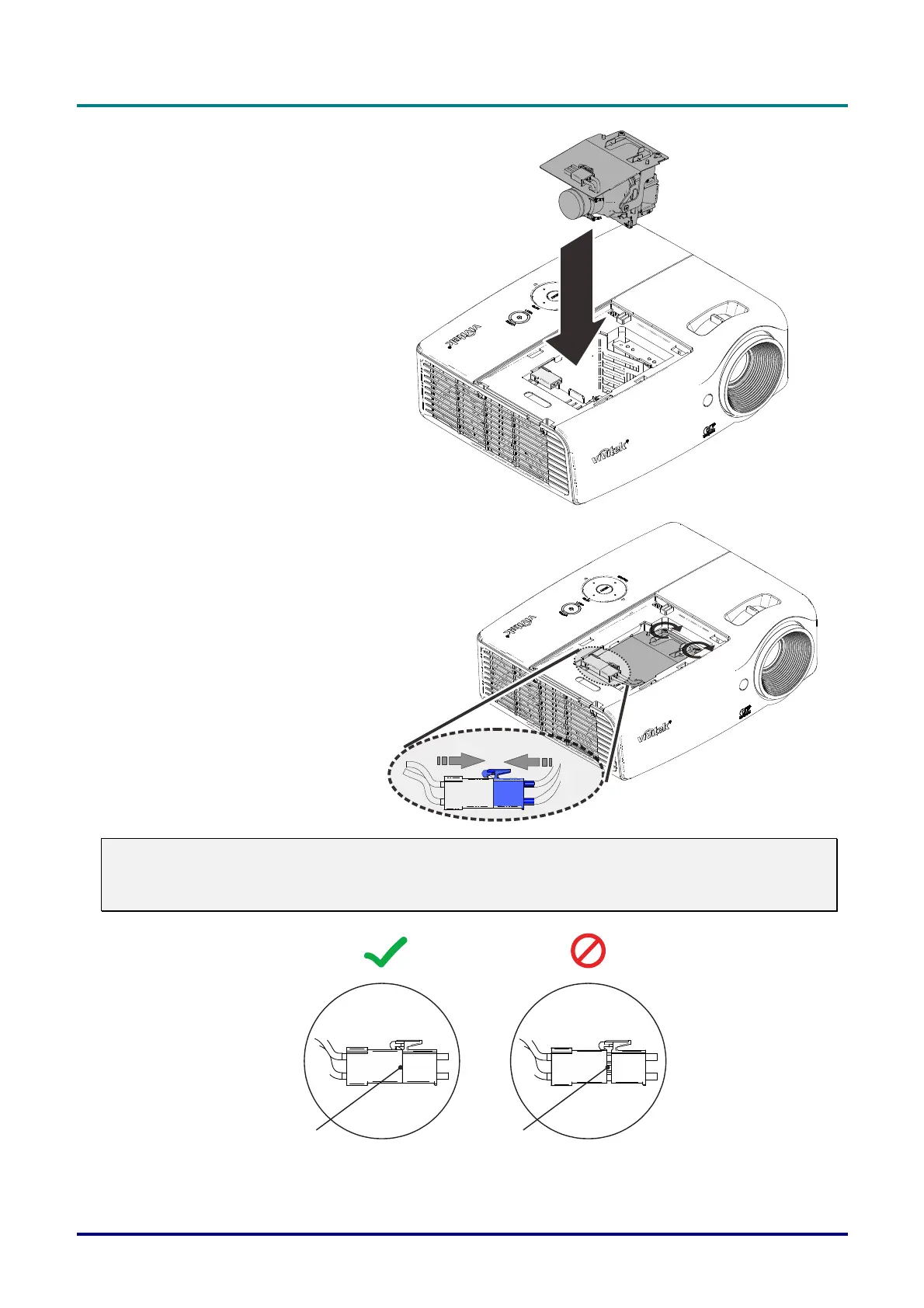

Lamp Connector must be installed flush with the connector base as shown in the image below.
A gap between the Lamp Connector and the connector base will cause damage to the projector.
The following images illustrate correct and incorrect Lamp Connector installations.
No Gap
Gap
rr
In
rr
– 35 –
