DLP Projector—User’s Manual

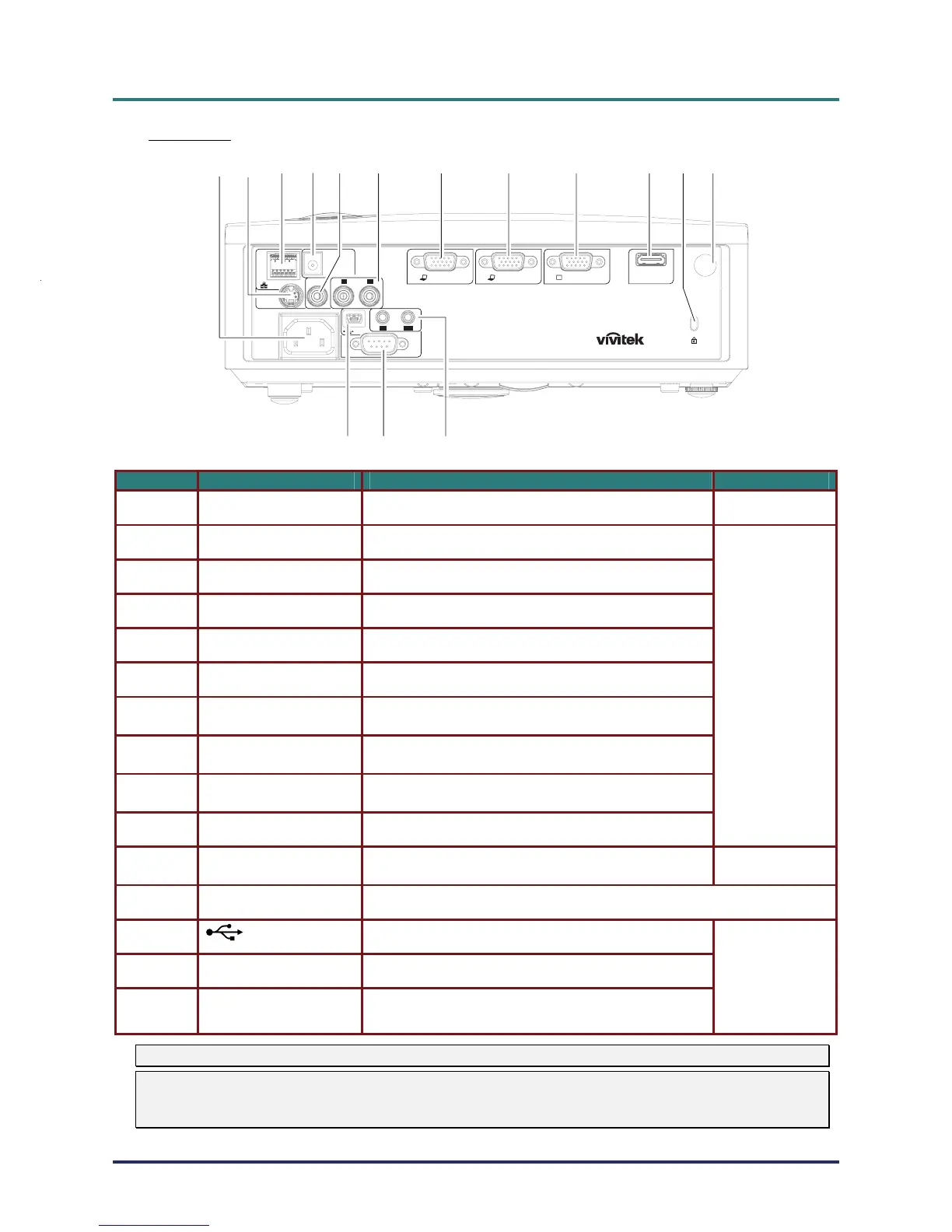

Rear view
USB
HDMI
S-VIDEO IN
LAN
RS-232C
VIDEO IN AUDIO IN
AUDIO
L
IN
R
OUT
12 V TRIGGER
VGA OUTVGA IN-1VGA IN-2
14 15
13
213
4
57689101112
ITEM LABEL DESCRIPTION SEE PAGE:
1. AC IN Connect the POWER CABLE 11
2. S-VIDEO IN Connect the S-VIDEO CABLE from a video device
3. LAN (*) Connect a LAN CABLE from Ethernet
4. DC 12V Connect the 12V OUT
5. VIDEO IN Connect the COMPOSITE CABLE from a video device
6. AUDIO IN (L and R) Connect the AUDIO CABLES from a audio device
7. VGA IN – 2
Connect the RGB CABLE from a computer and
components
8. VGA IN – 1
Connect the RGB CABLE from a computer and
components
9. VGA OUT
Connect the RGB CABLE to a display
(Loop Thru only for VGA IN-1)
10. HDMI (*) Connect the HDMI CABLE from a HDMI device
10
11. Kensington Lock
Secure to permanent object with a Kensington® Lock
system
44
12. IR receiver Receive IR signal from remote control
13. (USB) Connect the USB CABLE from a computer
14. RS-232C Connect RS-232 serial port cable for remote control
15.
AUDIO IN
AUDIO OUT
Connect an AUDIO CABLE from the input device
Connect an AUDIO CABLE for audio loop through
10
Note: (*) For D837 only
Note:
If your video equipment has both S-VIDEO and RCA jacks (composite video) connect to the
S-VIDEO connector. S-VIDEO provides a better quality signal.
– 4 –
