Vivitek DS262 - Page 25

23

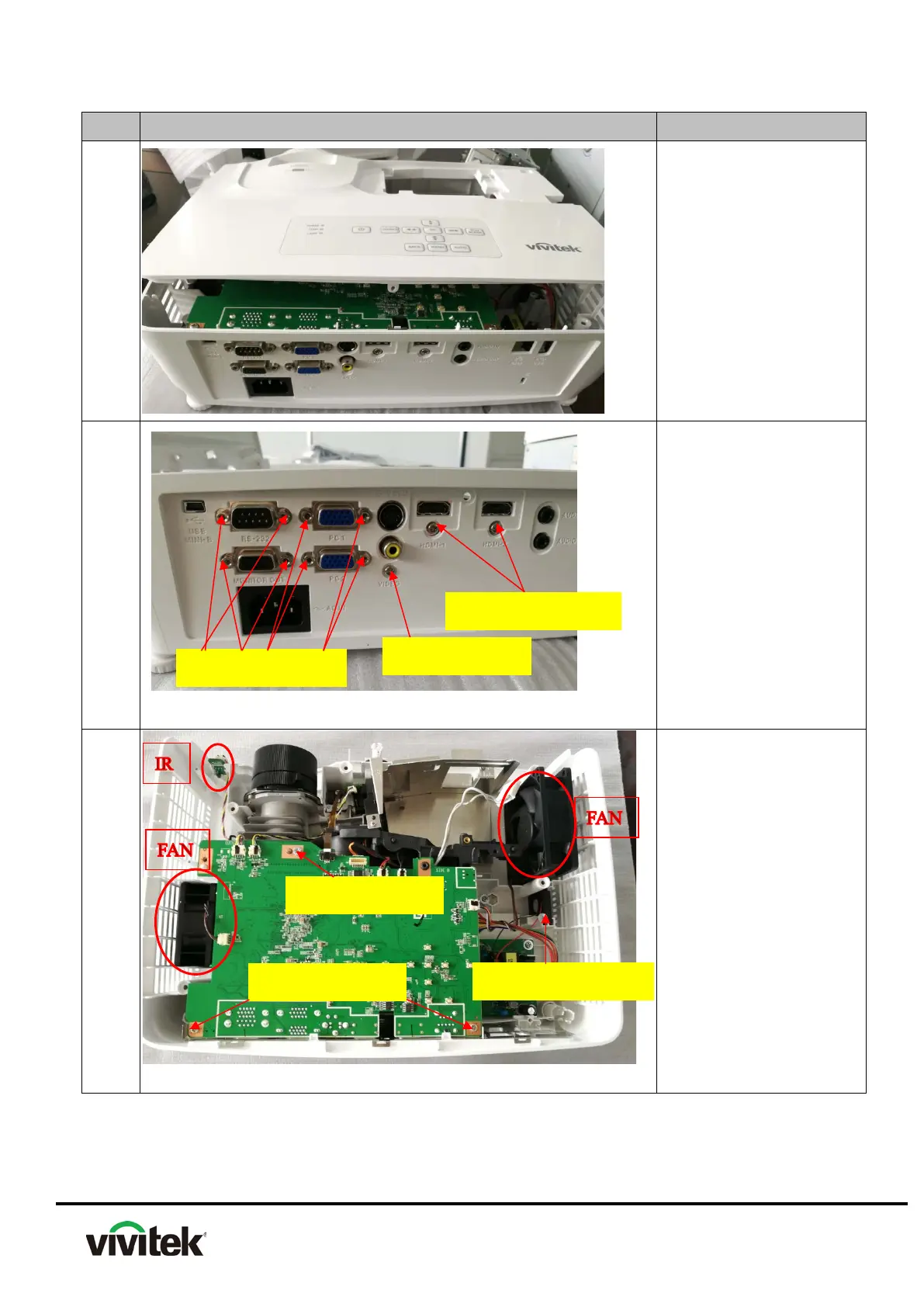

Step
Figure
Description
7
Lift up the Top cover
tardily
8 Unscrew all screws as
shown
9
1.
Remove all screws on
the Main Board
2. Disconnect all wires
gently.(Don’t ignore
the connector of back)
3. Remove the two fan
modules
and the Main
Board.
4.Remove the screw on
speaker,then take out
the speaker,
5.Take out the IR board
SCREW:P0P35-2500-00
SCREW:P2535-7300-00
SCREW: J1635-B854-00
SCREW:J1635-3670-01
SCREW: J1635-3670-01
SCREW: PHA35-3720-0A
