Internet connection via PPPoE (Point-to-Point over Ethernet)
Choose this connection type if you are connected to the Internet via a DSL Line� Please refer to
PPPoE on page 37 for details�

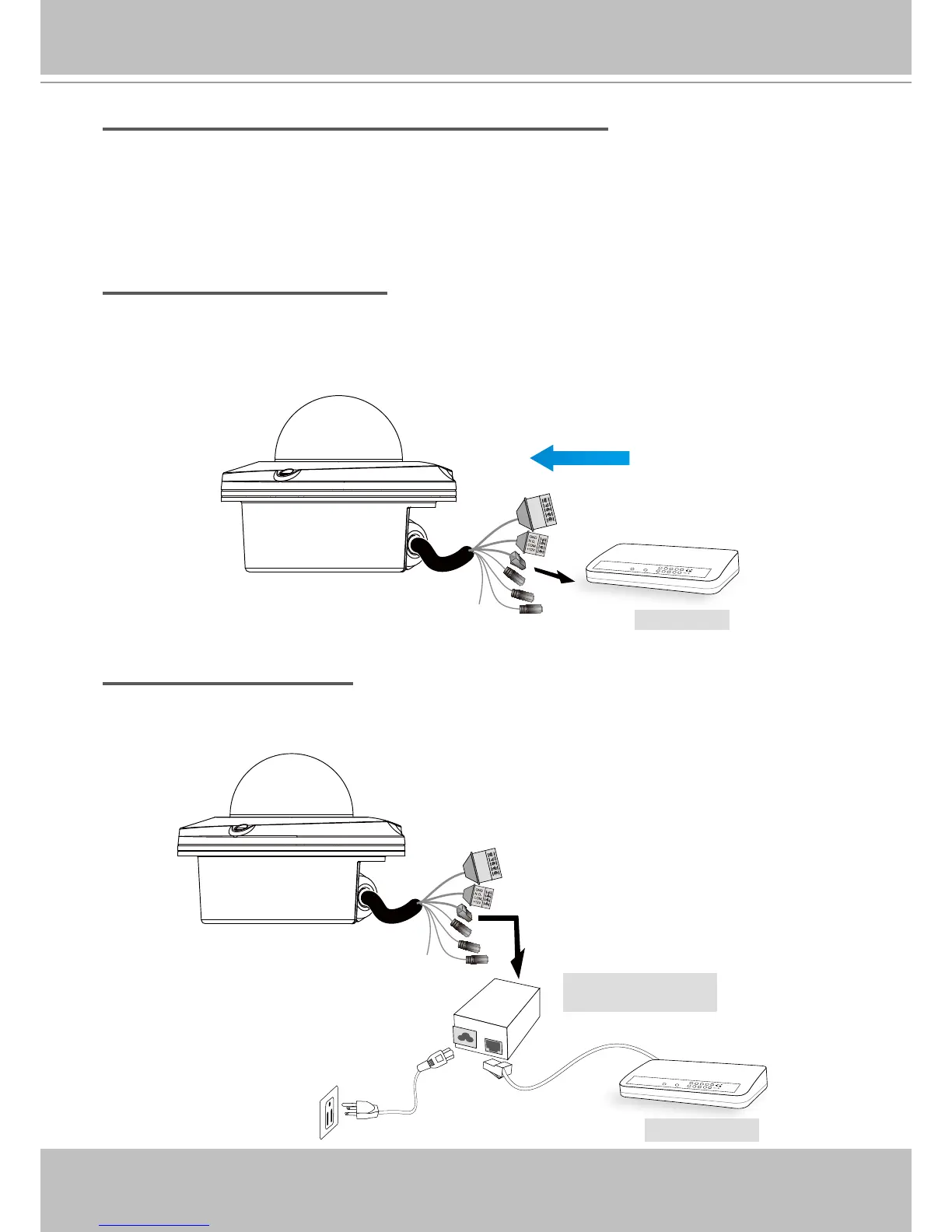

Set up the Network Camera through Power over Ethernet (PoE)
When using a PoE-enabled switch
The Network Camera is PoE-compliant, which allows it to be powered via a single Ethernet
cable� If your switch/router supports PoE, refer to the following illustration to connect the
Network Camera to a PoE-enabled switch/router via an Ethernet cable�
When using a non-PoE switch
If your switch/router does not support PoE, use a PoE power injector (optional) to connect
between the Network Camera and a non-PoE switch/router�
PO WER
COLLISION
LINK
RECE IV E
PARTIT ION
1
2
3
4
5
N.C.
N.C.
N.C.
AC24V
AC24V
power + data transmission
PoE Switch
PO WER
COLLISIO N
LINK
RECE IV E
PARTI TION
1
2
3
4
5
N.C.
N.C.
N.C.
AC24V
AC24V
Non-PoE Switch
PoE Power Injector
(optional)
