VIVOTEK
14 - User's Manual

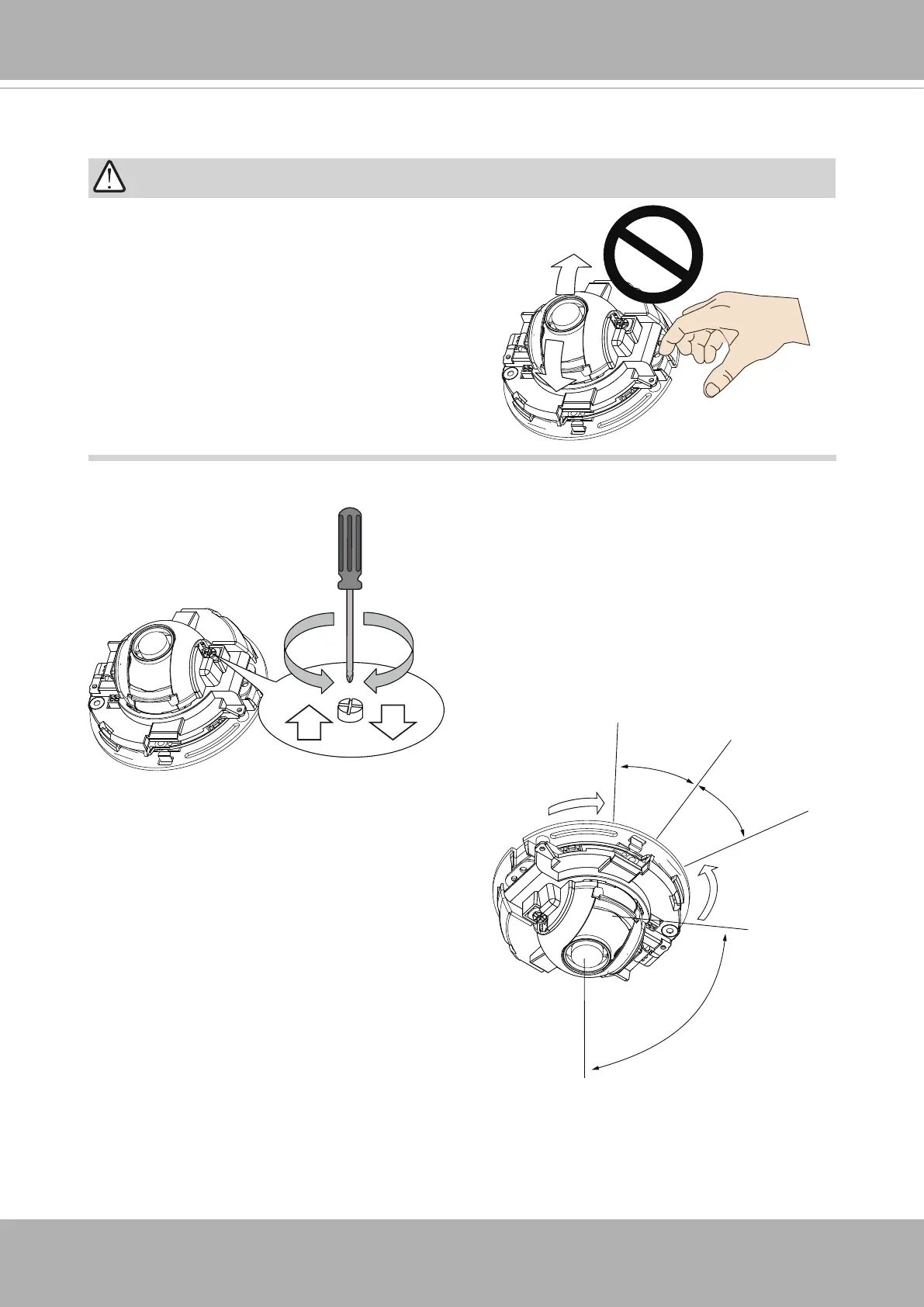

Adjusting the Lens
WARNING!
Do not use your hands to tune the lens module's
tilt angle� Doing so will damage the delicate tilt
mechanism�
1� There is a tilt adjustment screw near the
lens module� Use a #0, #1, or #2 Phillips
screwdriver to turn the screw and the lens
will move upwards or downwards�
3� Tighten the camera's mounting screws
after you change the horizontal shooting
direction�
Lens UP Lens DOWN
2. You may also tune the camera's horizontal
orientation by turning it along its curved
screw slots�
25°
25°
57°
