User's Manual - 49
Media > Video

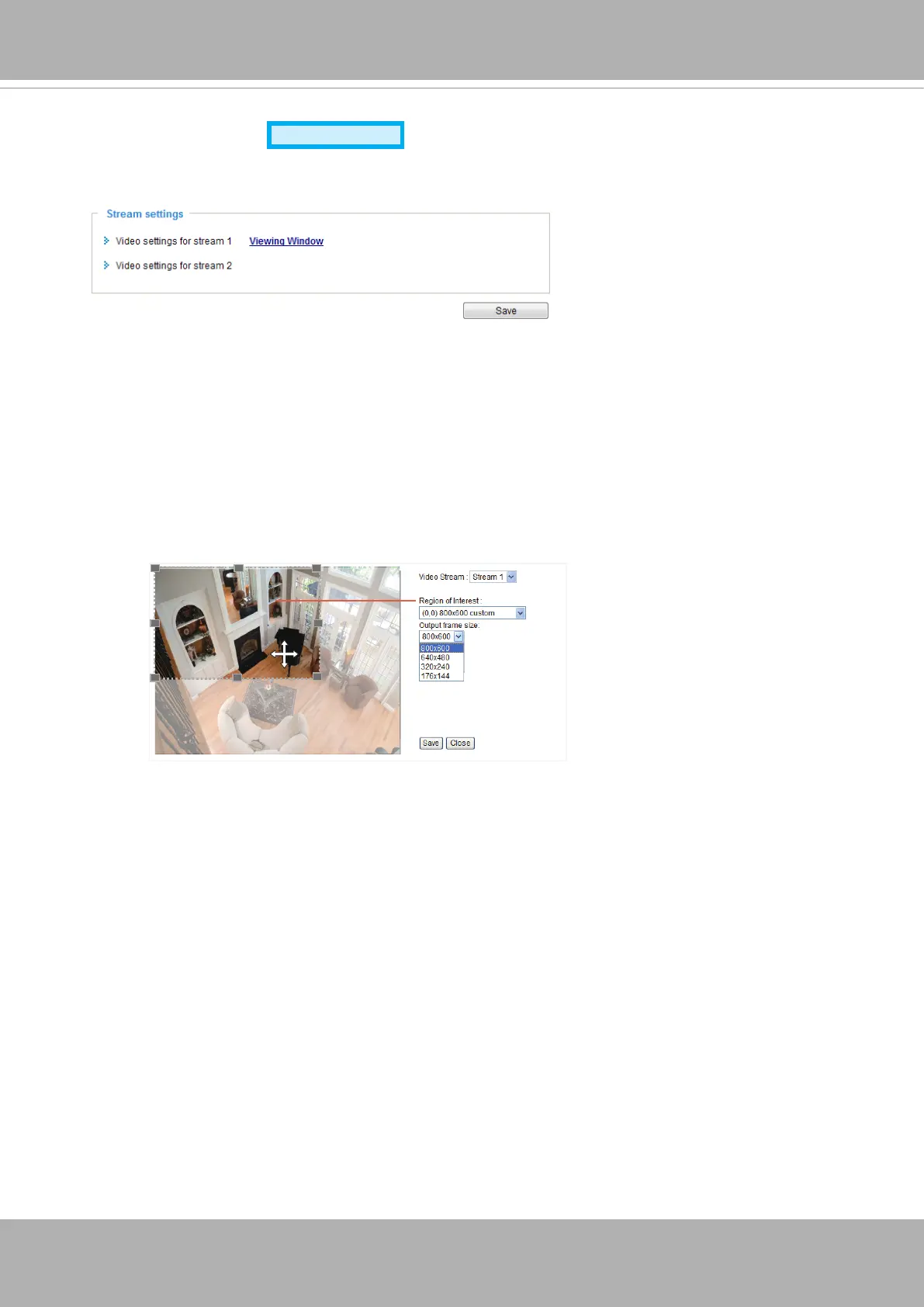

Stream settings
This Network Camera supports multiple streams with a frame size ranging from 176 x144 to 1280 x
800�
The denition of multiple streams:
■ Stream 1: Users can define the "Region of Interest" (viewing region) and the "Output Frame
Rate" (size of the live view window).
■ Stream 2: Stream 2 does not support the "Region of Interest" conguration.
Click Viewing Window to open the viewing region settings page� On this page, you can set the
Region of Interest and the Output Frame Size for stream 1�
Please follow the steps below to set up those settings for a stream:
1� Select a stream for which you want to set up the viewing region�
2� Select a Region of Interest from the drop-down list. The oating frame, the same as the one
in the Gloabl View window on the home page, will resize accordingly. If you want to set up a
customized viewing region, you can also resize and drag the oating frame to a desired position
with your mouse�
3� Choose a proper Output Frame Size from the drop-down list according to the size of your
monitoring device�
Advanced Mode
