Vivotek ND9541P User Manual

VIVOTEK - Built with Reliability
42 - User's Manual
10:32:56
2015.09.22 1x
2016.05.16
03 - Camera 03
17:15:41
1x
2016.05.16
01 - Camera 01
17:15:41
1x

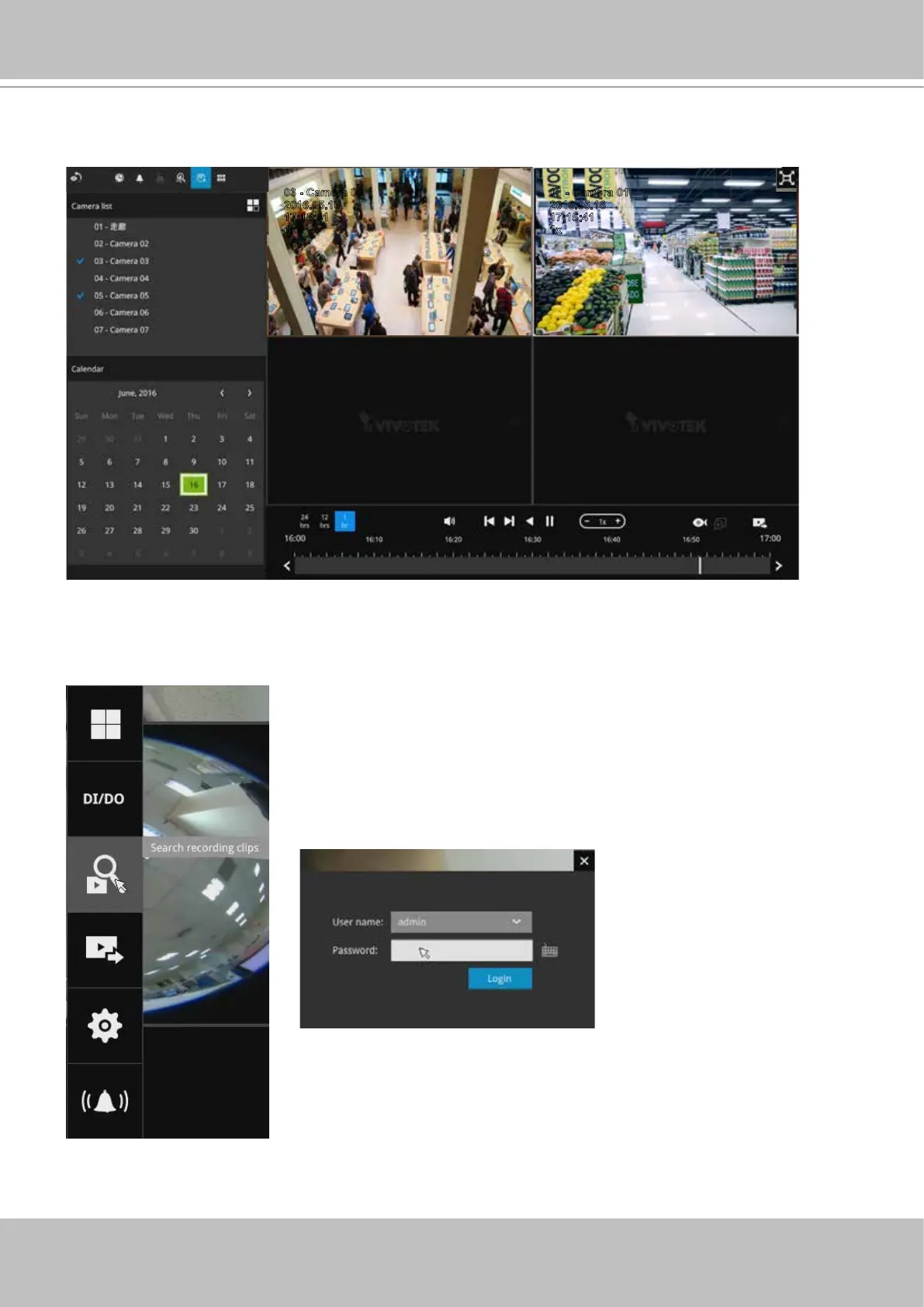

The Playback window will prompt, and a playback begins from the point in time you selected,
e.g., 30 seconds ago. This function allows you to quickly review what has just happened.
3-2. Another way to access past videos is to open the Search recording clips window. Move
your mouse cursor to display the Conguration Portal (without selecting any view cell).
Click on the Search recording clips button. Please refer to page 55 for more information
about the search functions.
You will be prompted for User name and Password, enter admin
and admin (the default user name and password) and click Login.
It is highly recommended to change the password after you log in.

Vivotek ND9541P Specifications

General

PTZ control	Yes
Playback modes	Pause, Play, Speed Adjust, Stop
Internal memory	256 MB
Number of users	16 user(s)
Recording modes	Continuous, Event, Manual, Schedule
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Internal memory type	Flash
Throughput data rate	96 Mbit/s
Video input channels	32 channels
Alarm output channels	4
Supported resolutions	2560 x 1920, 1920 x 1080, 1280 x 720, 720 x 480
Audio formats supported	G.711, G.726
Video formats supported	H.264, H.265, MPEG
Operating system installed	Embedded LINUX
Resolution at capture speed	2560x1920@30fps, 720x480@960fps, 1280x720@240fps, 1920x1080@120fps
Minimum RAM	4 GB
Browser supported	Internet Explorer 10 (32 bit) or above
Mobile operating systems supported	Android, iOS
HDD capacity	- GB
HDD interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Maximum storage capacity	8 TB
Number of HDDs installed	-
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Power over Ethernet (PoE) power per port	160 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
Product color	Black
LED indicators	HDD, Network, Status, Y
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Cables included	SATA

Weight and Dimensions

Depth	400 mm
Width	430 mm
Height	44.5 mm
Weight	4500 g
