VIVOTEK - Built with Reliability
User's Manual - 71

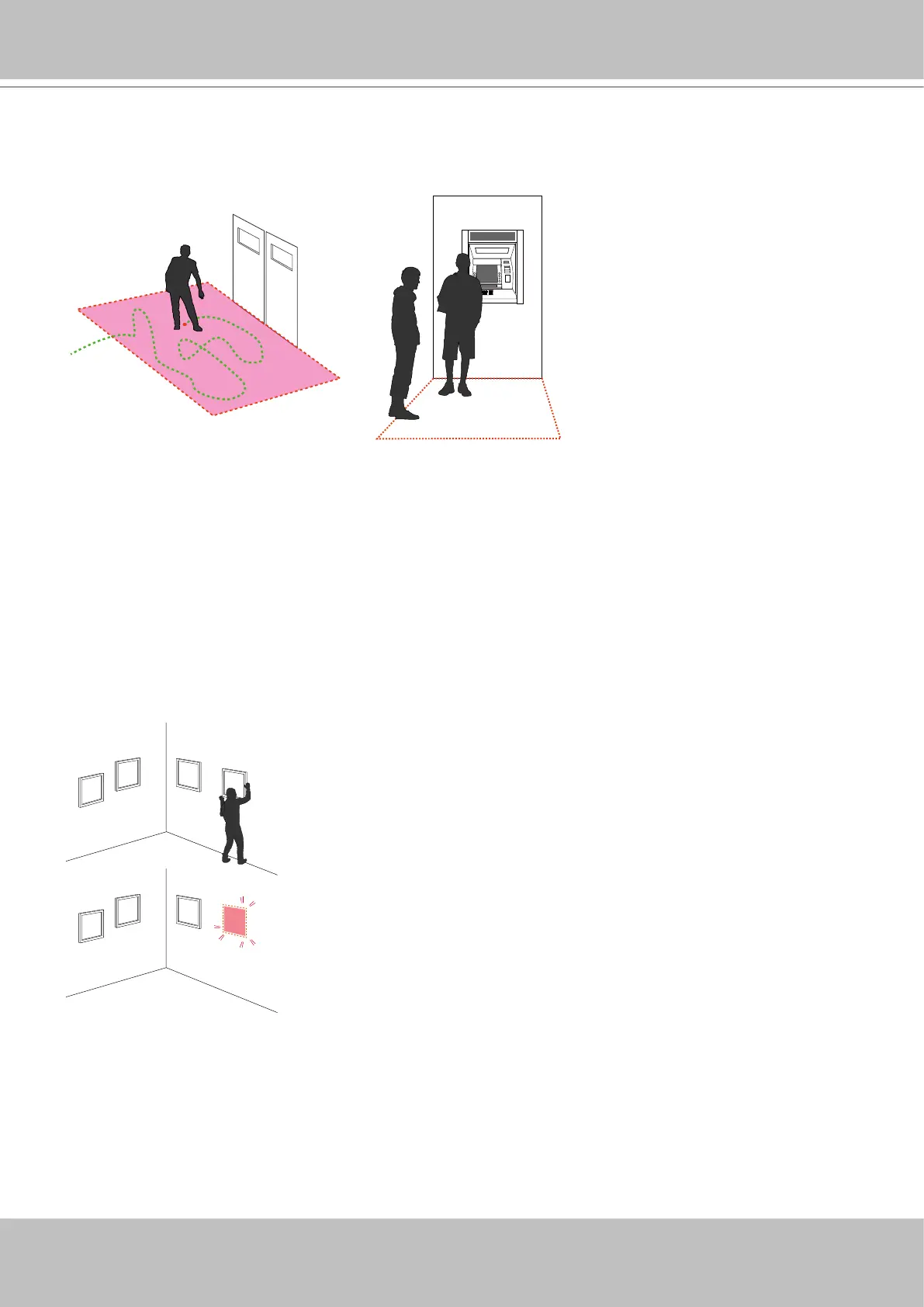

Loitering Detection
The Loitering detection can be used to detect a person of a group of people lingering in an area
for longer than a preset time threshold.
ATM
The applicable scenarios of this feature can be:
* Detects when a pserson is loitering at a walk-up of ATM lane.
* Detects when a person is loitering in a high-theft area of a store, or to prevent vandalism and
break-ins.
* Detects when a person is loitering in an area that is normally not an access for visitors.
Missing Object Detection
The Missing Object detection can be used to detect the removal of a predened asset from a
surveillance scene.
The applicable scenarios of this feature can be:
* In a campus setting, the Missing Object feature can be used to monitor high-risk areas for
theft, such as the administrative o󰀩ces, computer labs, or science laboratories.
* Detects when theft occurs in storage areas or warehouses. It is helpful when there are security
personnels monitoring the scene, yet their attention went down through time.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Vivotek ND9541P and is the answer not in the manual?

Vivotek ND9541P Specifications

General IconGeneral
PTZ controlYes
Playback modesPause, Play, Speed Adjust, Stop
Internal memory256 MB
Number of users16 user(s)
Recording modesContinuous, Event, Manual, Schedule
Maximum resolution2560 x 1920 pixels
Alarm input channels8
Internal memory typeFlash
Throughput data rate96 Mbit/s
Video input channels32 channels
Alarm output channels4
Supported resolutions2560 x 1920, 1920 x 1080, 1280 x 720, 720 x 480
Audio formats supportedG.711, G.726
Video formats supportedH.264, H.265, MPEG
Operating system installedEmbedded LINUX
Resolution at capture speed2560x1920@30fps, 720x480@960fps, 1280x720@240fps, 1920x1080@120fps
Minimum RAM4 GB
Browser supportedInternet Explorer 10 (32 bit) or above
Mobile operating systems supportedAndroid, iOS
HDD capacity- GB
HDD interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-A
Maximum storage capacity8 TB
Number of HDDs installed-
Networking standardsIEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity2
Ethernet LAN data rates10, 100, 1000 Mbit/s
Supported network protocolsIPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)260 W
Power over Ethernet (PoE) power per port160 W
CertificationCE, LVD, FCC, VCCI, C-Tick, UL
Product colorBlack
LED indicatorsHDD, Network, Status, Y
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95 %
Cables includedSATA
Weight and Dimensions IconWeight and Dimensions
Depth400 mm
Width430 mm
Height44.5 mm
Weight4500 g
