□ Route the negative battery cable from the relocated battery
location and follow the positive battery cable. Continue routing
until under the fan shroud and in such a way it will remain clear
of the crank pulley and any other sharp or moving objects.
□ Remove the OEM negative battery block bolt attaching the OEM
negative battery cable located beside the engine side coolant
OEM quick connect (Figure 3.4).
For ease of removal the OEM negative battery block bolt
should be removed with the engine side coolant hose
disconnected. Figure 3.4 shown with coolant hose
connected to illustrate the OEM negative battery bolt
location.

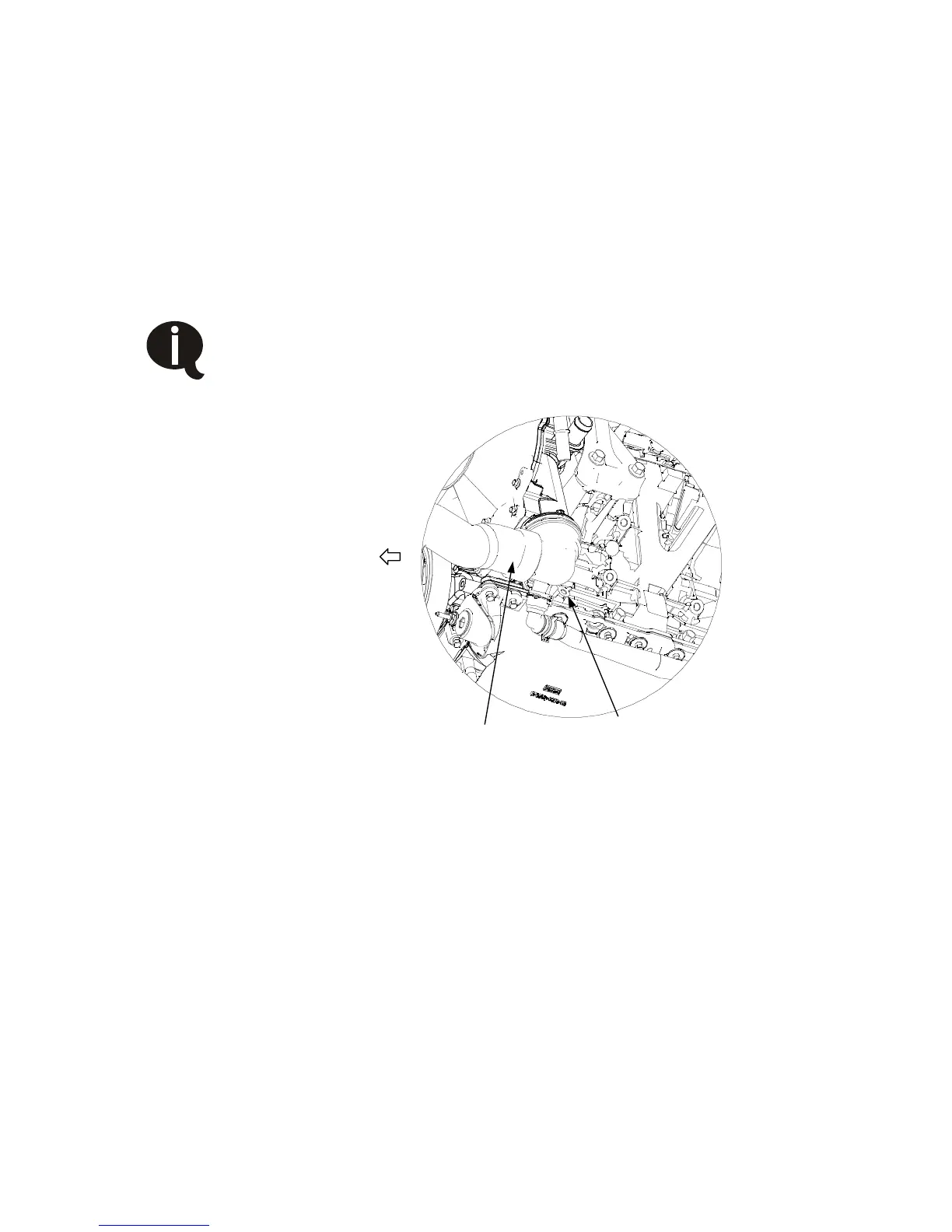

Figure 3.4
□ Install the supplied negative battery cable lug on top of the
existing OEM negative battery cable lug. Orientate the cable so
that it travels down and under the existing vehicle battery tray
facing the front of the vehicle towards the fan shroud. Reuse the
existing OEM negative battery bolt.
□ Secure battery cables with tie-straps as required as to clear the
crank pulley and other moving parts.
