6.3 Setup, Performance Testing and Adjustments
This system has been adjusted at the factory for general operation. If
your tests indicate that adjustment is necessary, refer to the owner’s
manual for specific instructions on how to adjust the system.
You can test the system operation using the tools that will be
operated by the system or you can test operations using an orifice in
the outlet to simulate tool use (Figure 6.1).

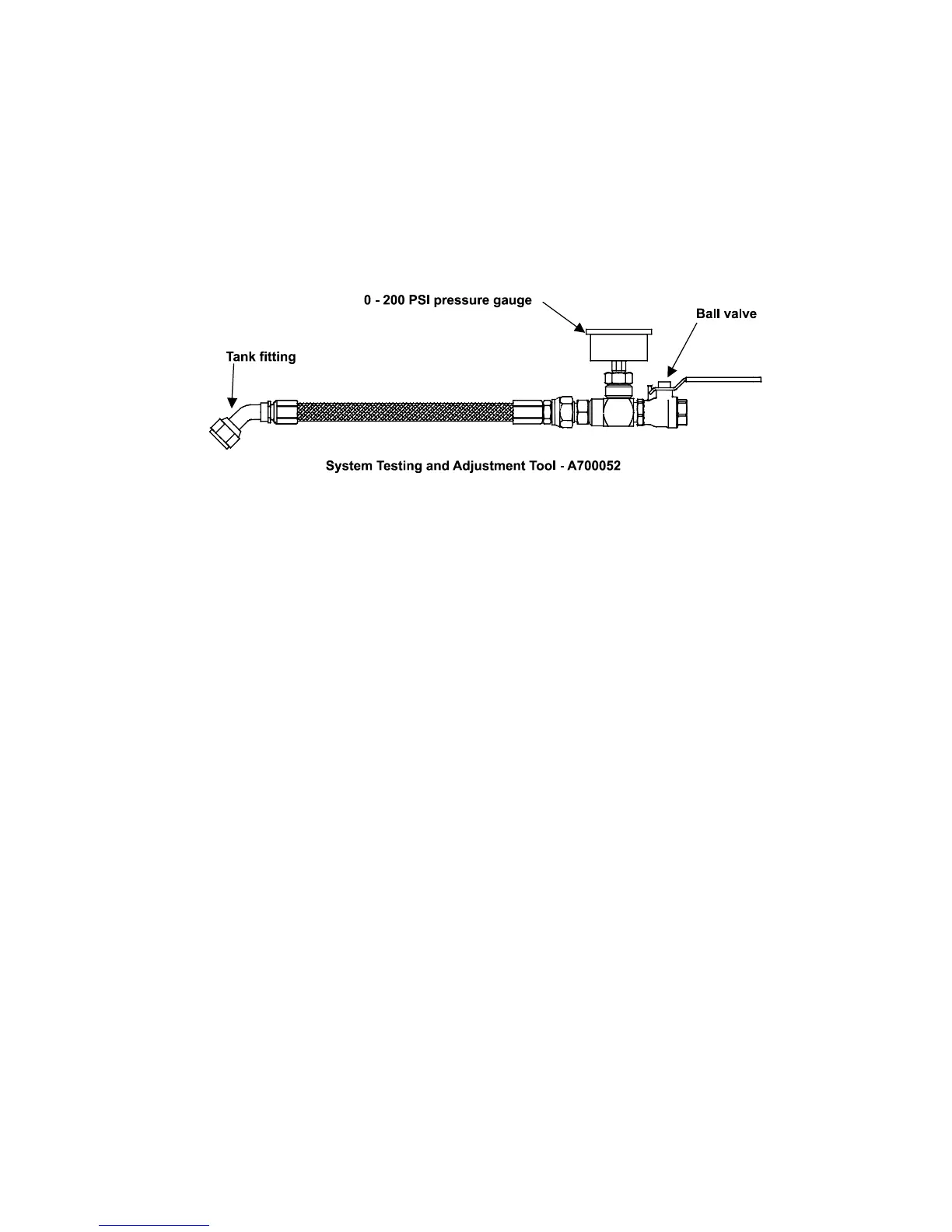

Figure 6.1
□ Install the test tool in the tank outlet fitting.
□ Make sure that the ball valve is closed.
□ Place the manual transmission in NEUTRAL or the automatic
transmission in PARK and fully apply the park brake.
□ Allow the vehicle to run until the engine is at operating
temperature.
□ Operate the air compressor system until the oil is warm.
□ Observe the pressure gauge. Pressure should be approximately
150 psi.
