3.7 Air Filter Box

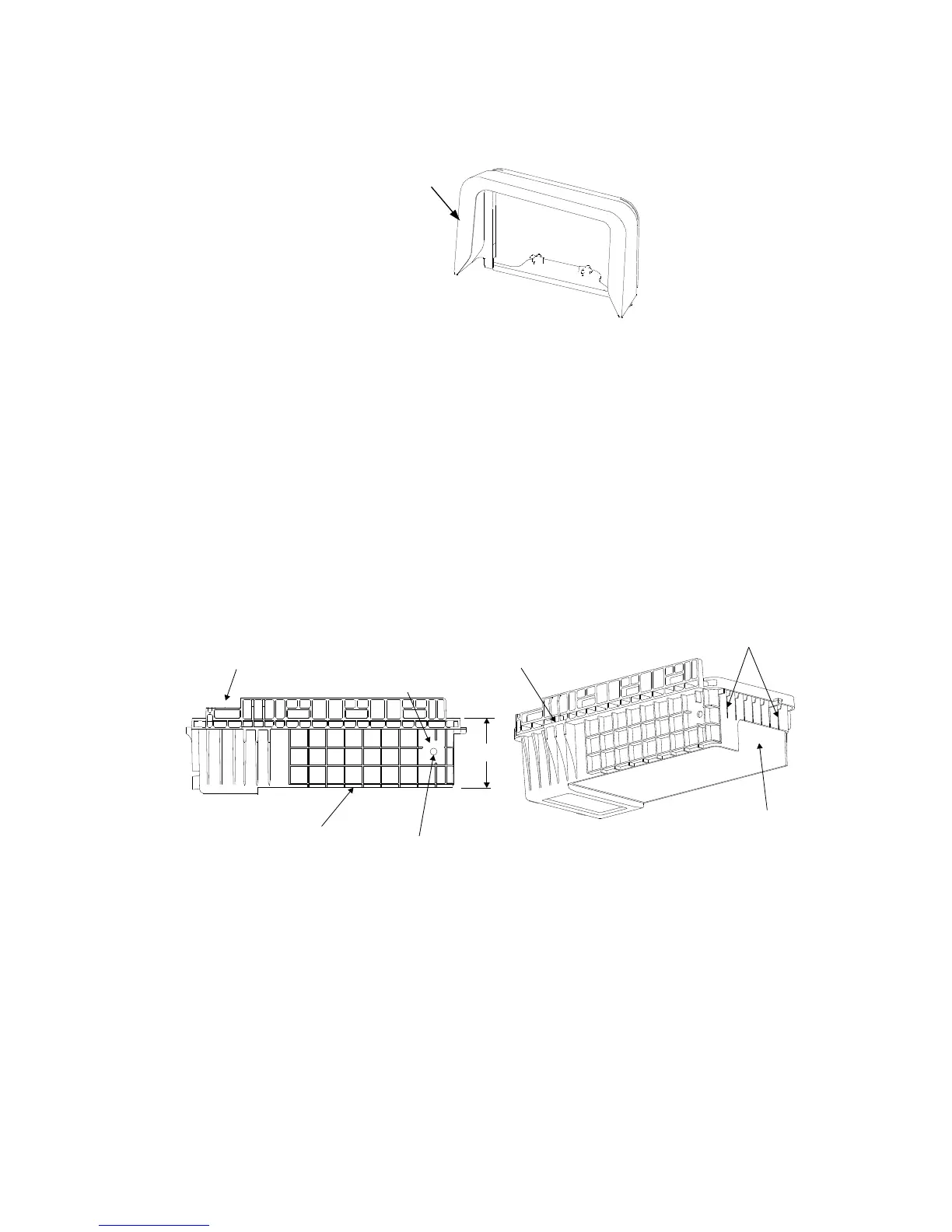

□ Remove rubber intake sleeve from side of OEM air box (Figure
3.27).
Rubber Sleeve
Figure 3.27
□ Cut OEM lower air filter box as seen in Figure 3.28. Cut at 3.75”
below top (just above the radius). Cut away main filter section
leaving the foam filter section. Leave the divider intact between
the two sections.
□ Cut tab (with bolt hole in it) off flush on the side of the filter box,
(Figure 3.28).
□ Cut corner off air filter box as dimensioned, (Figure 3.28).
3-3/4"
Cut Corner Off - 1-3/4" Wide X 3/8" Tall
Cut Tab Off Flush
Cut Line
Trim Ribs Off Flush
Cut To Match Opening
After Installing Steel
Bottom Box.
Match-Drill 3/8" Hole
With Hole in Steel
Bottom Box.
Trim Ribs Around Hole
Figure 3.28
□ Cut foam section of air filter 1” below ridge that secures it in the
plastic air filter box (Figure 3.29).
