3.3 Continuing Oil Cooler Installation
Do not strike the impact sensor as this could cause the
airbags to actuate. (Figure 3.5)
□ Position the cooler in the center of the cross-member so that it is
just above the sway bar with the oil ports facing up (Figure 3.5).

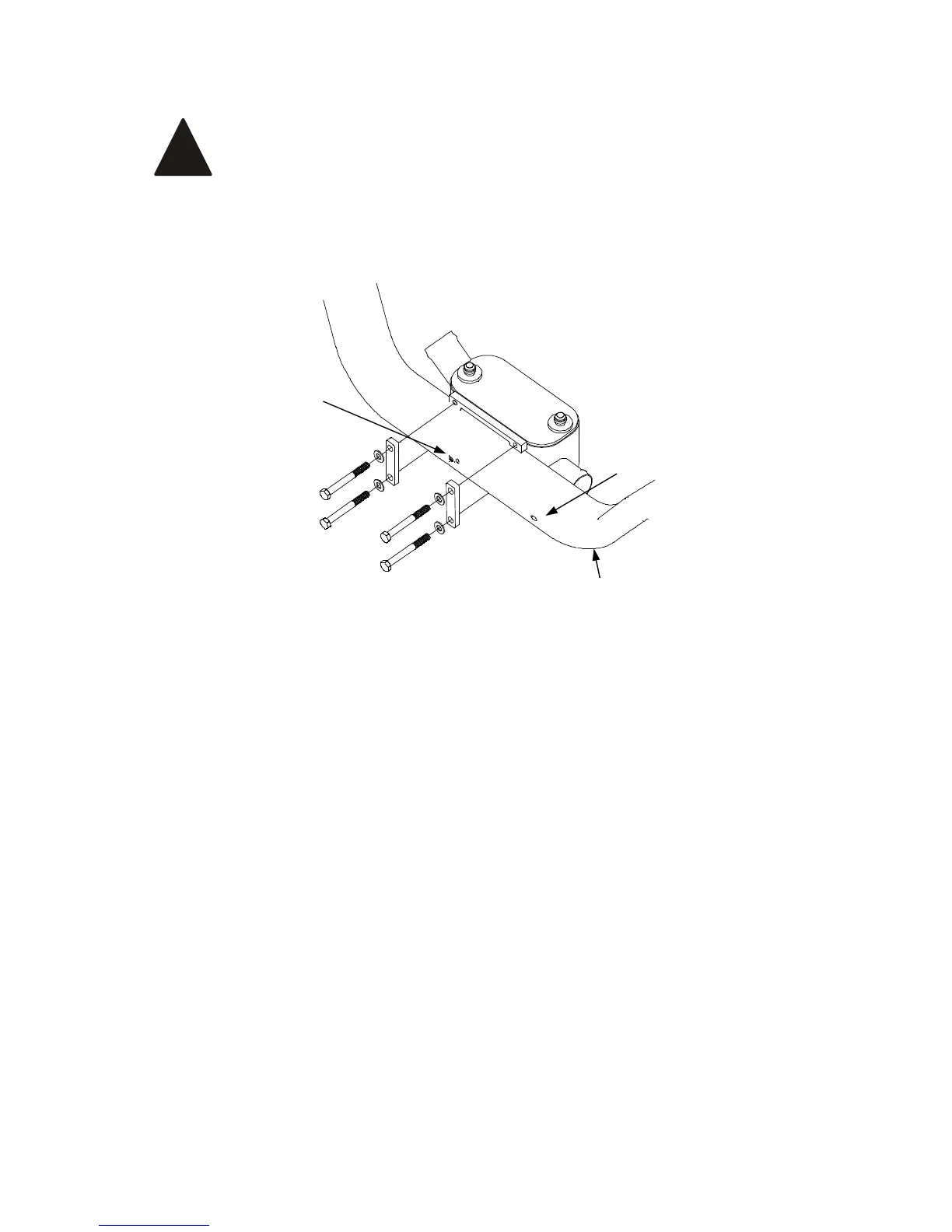

Figure 3.5
□ Apply Loctite then install bolts through the flat mounting strap
and place them on the front of the cross member on each side of
the impact sensor. Note the impact sensor is located in the
center of the cross-member; the driver side wire connection is for
the fog lights if equipped (Figure 3.5).
□ Thread the bolts into the matching holes on the cooler mounts
hand tight only, this will allow the cooler to be repositioned if
necessary after the coolant hoses have been attached (Figure
3.5).
□ Install the radiator side coolant hose and secure with supplied
hose clamp (Figure 3.6).
