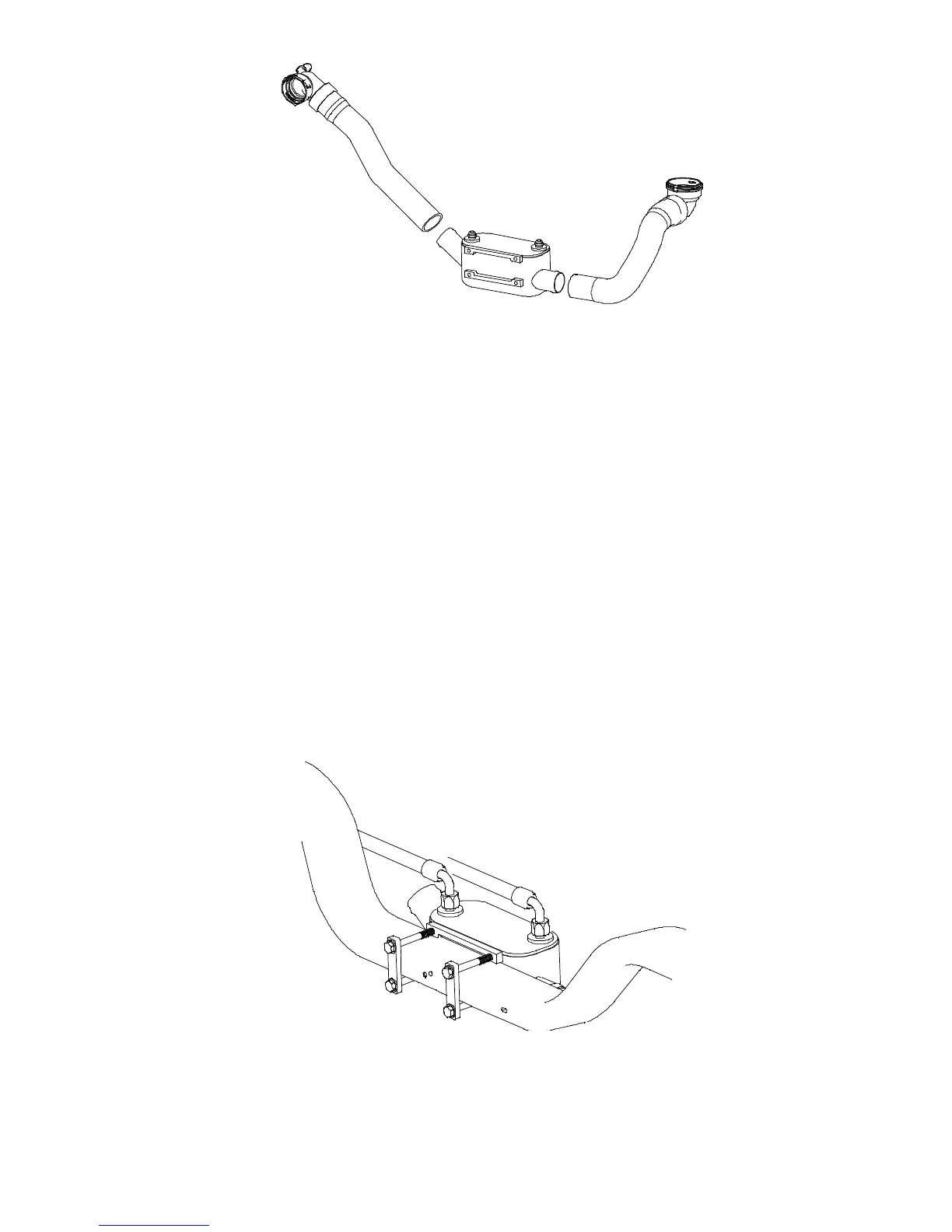

Figure 3.6
□ With the radiator side coolant hose secured tighten the cooler
mount bolts to specification.
□ Install the engine side coolant hose and secure with supplied
hose clamp (Figure 3.6). Note, it may be necessary to trim the
cooler end of the coolant hose, do so as required if any kinking
of the hose occurs.
□ Apply hose protection to 1/2" oil hoses.
□ Connect the shortest 1/2" hose to the passenger side of the
cooler and orientate as shown (Figure 3.7).
□ Connect the longest 1/2" hose to the driver side of the cooler and
orientate as show (Figure 3.7). (Note the cooler hoses must be
installed before the fan shroud is installed).
Figure 3.7
