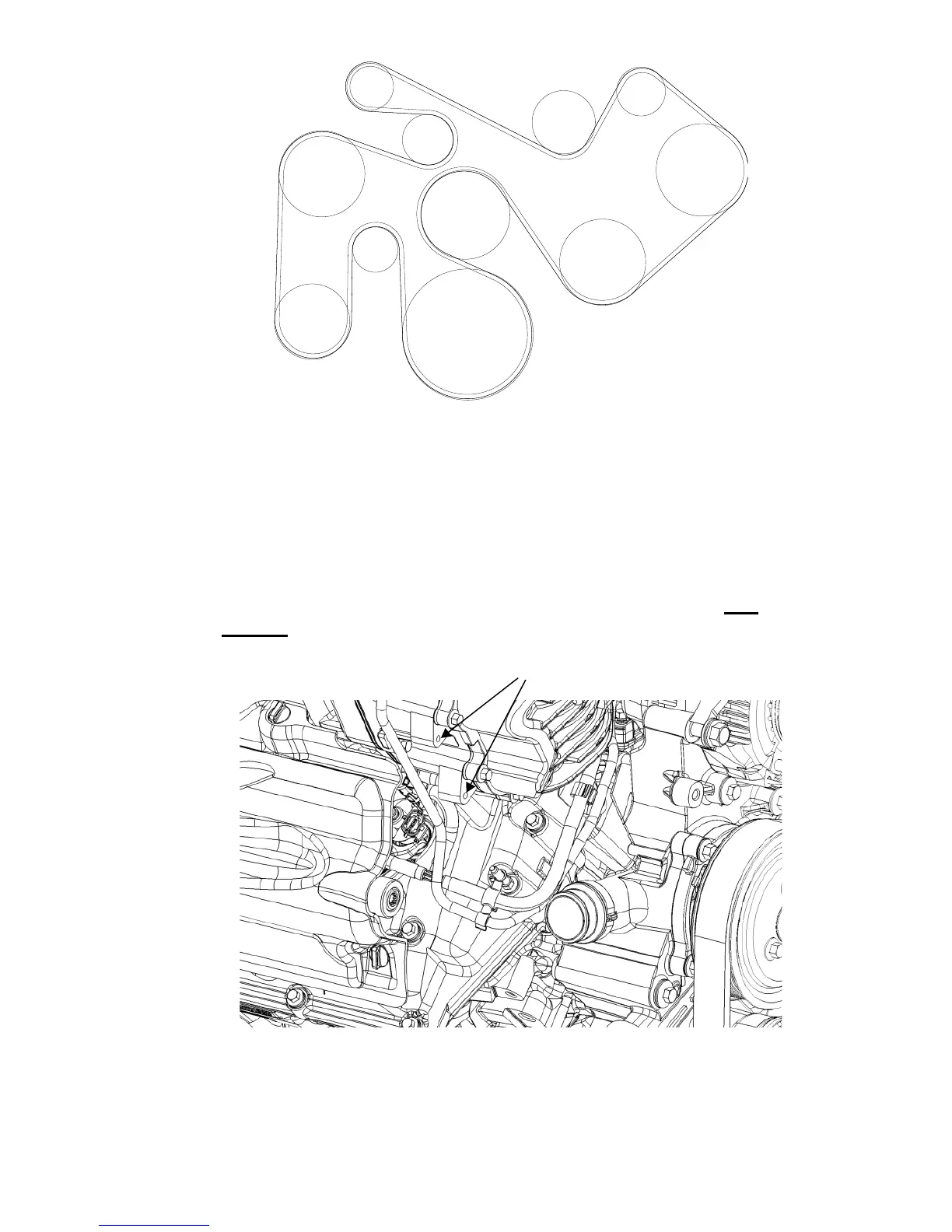

Figure 3.13 – OEM Belt Routing
□ Tighten crank pulley bolts an additional 90 degrees.
□ Remove lower portion of inlet brace from air end and install on
engine. It attaches to the front of the EGR where the wire guide
was previously removed, (Figure 3.14), (use OEM bolts, use
Loctite and torque to specifications).
