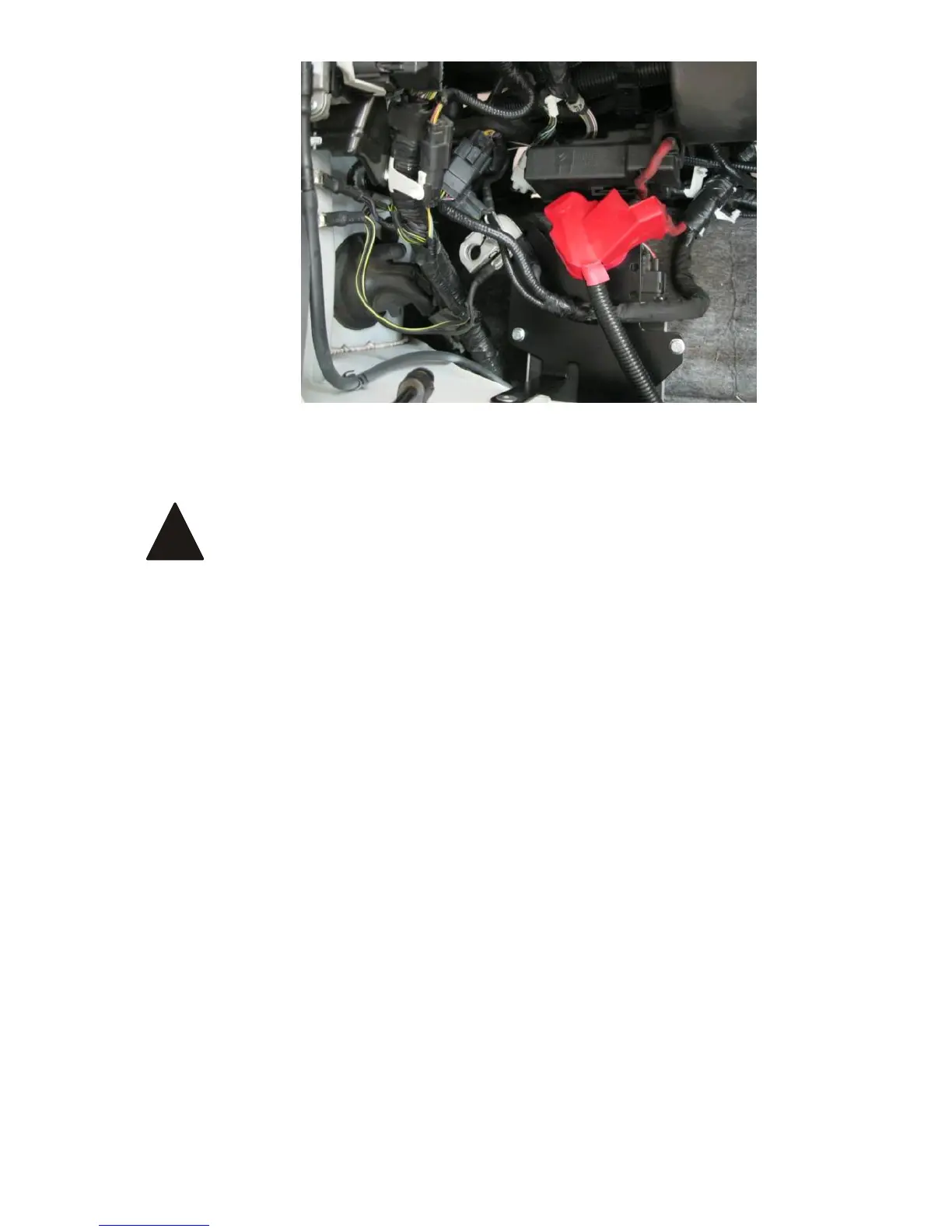

Figure 3.21
Use caution when modifying the battery cable ends. Use a
vice or other means to hold and support the cable end when
drilling. A ‘step drill’ is recommended.
□ Connect the supplied positive battery cable extension to the
positive terminal and secure down with lock nut. Connect OEM
battery clamp to positive post with the supplied nylock nut.
□ Using the supplied tie strap, attach the negative battery cable
harness to the glow plug module bracket.
□ Attach washer bottle pump extension cable to OEM plug. Route
cable down between radiator and frame so that the plug ends up
hanging down behind the bumper on the outside of the
passenger side frame (where the bumper support bracket is
attached).
□ The battery box will mount to the driver side frame rail behind the
suspension radius arm mount (Figure 3.22 & Figure 3.23).
