□ Install P-Clip to hold oil line going to cooler and use supplied M8
bolt to go through P-Clip (Figure 3.37).
□ Reinstall resonator attached to turbo inlet.
□ Position rubber elbow & hose clamps onto air filter box lid, do not
tighten.
□ Install new air intake tube into rubber elbow end at air box first
and then into rubber bellows for engine. (Figure 3.40).
Ensure air box is not pushed down and out of ‘Rear Spacer
Clamp’ (Figure 3.3).
Figure 3.40
Intake tube must be positioned as far from the intake tube
brace and the firewall connector as possible before
tightening the hose clamps.

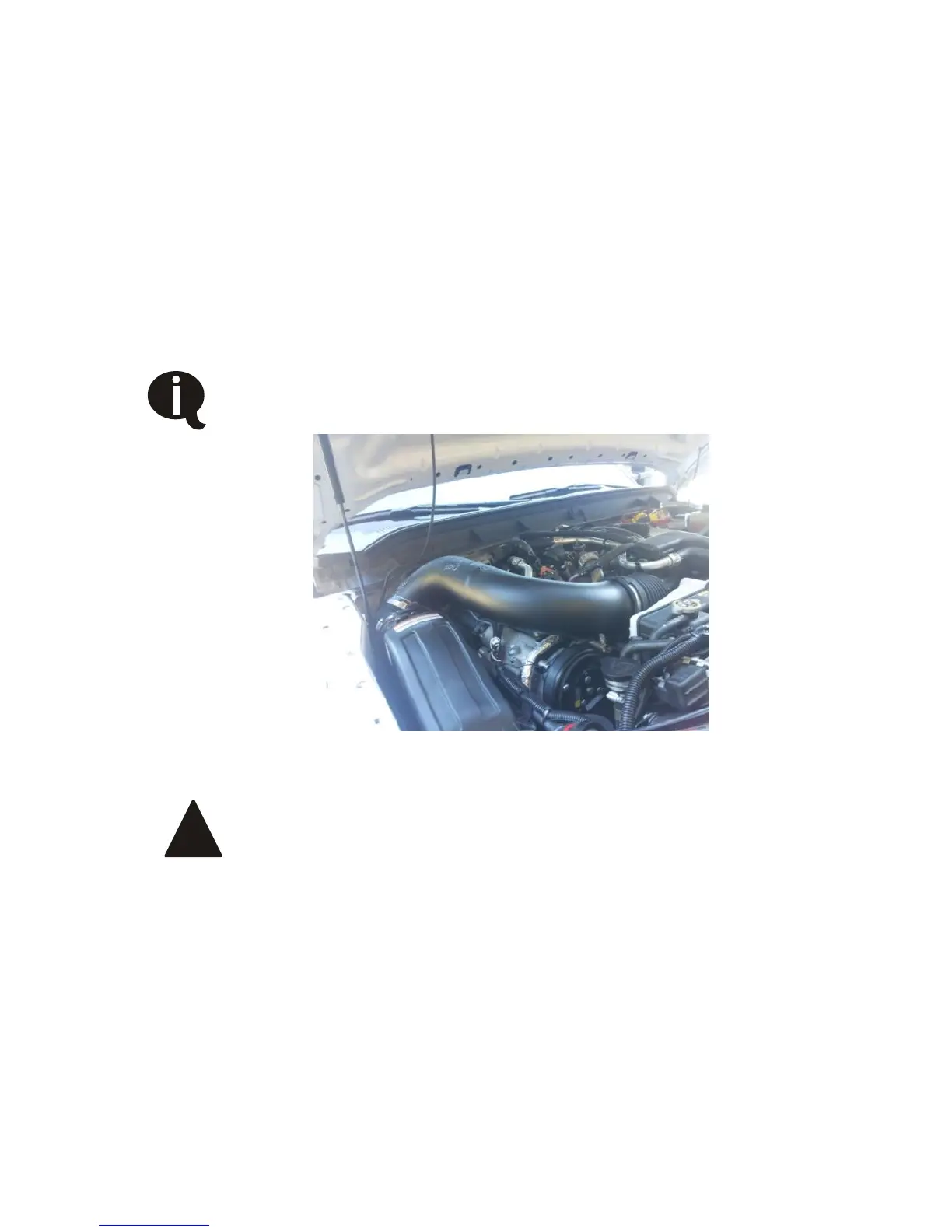

□ Position intake tube for best clearance to brace and to firewall
connector and tighten hose clamps. (Figure 3.41).
