10-6 10TA Service Manual
OPTIONS AND ACCESSORIES
Mitsubishi FX
1N
-24MR PLC and FX
2N
-8ER-ES/UL

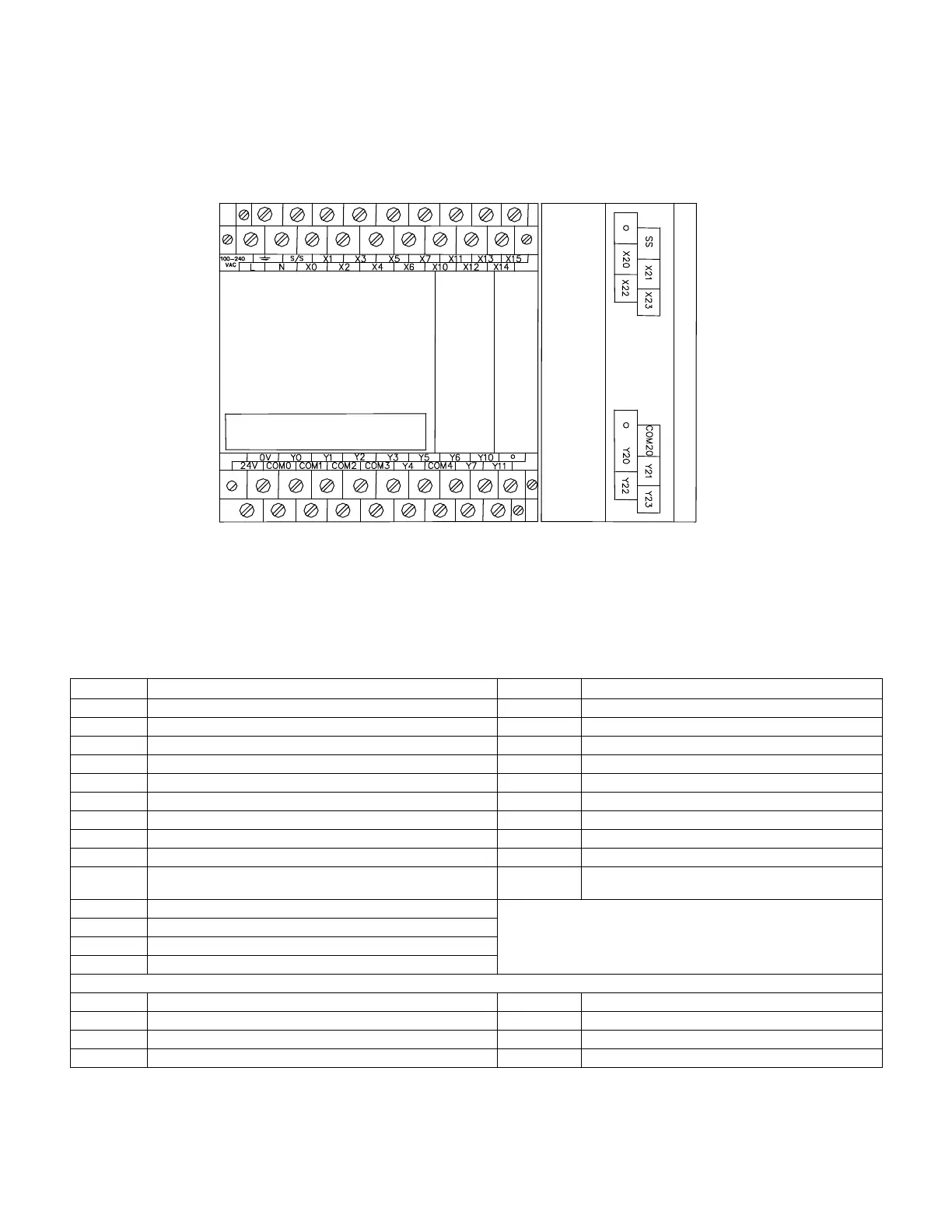

FIGURE 10-3
Mitsubishi PLC
Inputs
Description
Outputs
Description
0
Not used
0 Not used
1
Not used
1 High Side Control Interlock
2
Start / Manual Harvest Button
2 Conveyor Control Contact
3
Selector Switch (Clean position)
3 ET - Elapsed Timer
4
Selector Switch (Ice position) in series w/Bin control
4 Water Pump motor starter
5
Freezer Pressure switch
5 Alarm
6
Compressor overload for 4D & 6D without CoreSense
6 D-sol (defrost solenoid valve)
7
Cutter Motor overload
7 Not used
10
Pump Motor overload
10 Float switch / A-sol (liquid feed valve(s))
11
CoreSense (Oil press safety for comp without
CoreSense)
11
Cutter motor starter
12
High / Low pressure safety
13
Not used
14
Not used
15
Not used
Expansion Module
20
Not used
20 UN-sol (compressor unloader)
21
Not used
21 Not used
22
Not used
22
Not used
23
Not used
23
Not used
TABLE 10-2
PLC Input / Output Table
