10TA Service Manual
INSTALLING YOUR TUBE-ICE
®
MACHINE
4/14/14
3-4
PROVIDE
SUFFICIENT SPACE
40" MINIMUM CLEARANCE FOR CONDENSER CLEANING
1'-5 3/8"
11 1/4"
11 7/8"
7"
2 1/2" CONDENSER
WATER OUTLET
2" CONDENSER
WATER INLET
1" WATER TANK
DRAIN LOCATED
ON RIGHT SIDE
2'-4 3/4"
1'-1 1/2"
11 5/8"
10"
ICE DISCHARGE
1/2" MPT MAKE-UP WATER
CONNECTION
12" MINIMUM CLEARANCE FOR
INSTALLATION AND ACCESS
REAR LEFT SIDE FRONT
1'-3 1/8"
4'
5'
10'-4"
40" MINIMUM CLEARANCE FOR WATER TANK ACCESS
40" MINIMUM CLEARANCE FOR
COMPRESSOR ACCESS
6 3/8"

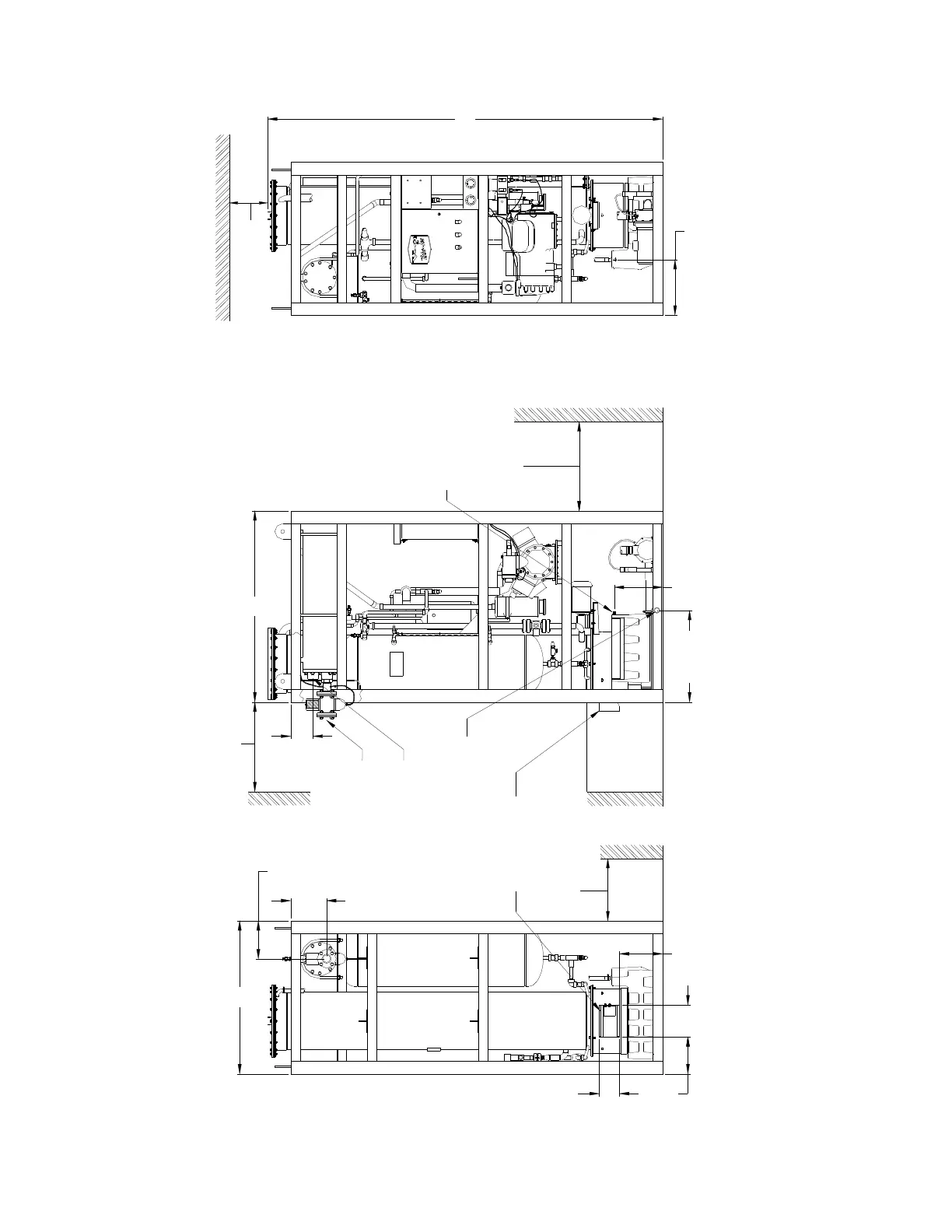

FIGURE 3-2B
Connections and Space Diagram (Water Cooled Machine)
