Livedrive V2
User Manual

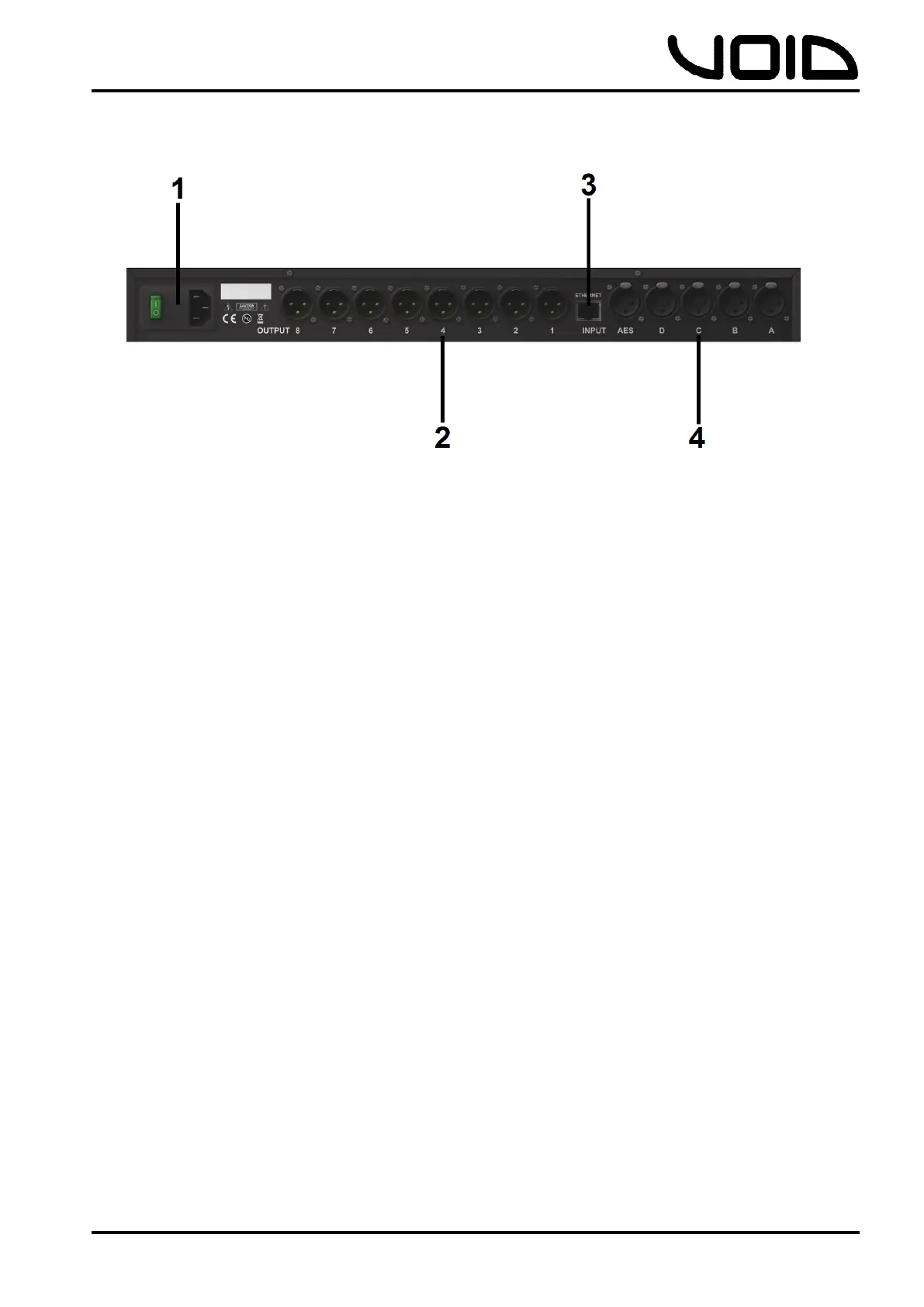

4.0 Rear Panel
1. Power Input – connects via a standard IEC socket.
2. XLR Output – Standard female XLR socket: pin 1: ground (shield), pin 2: +ve,
pin 3: -ve
3. Network Socket – Standard RJ45 female socket
4. XLR Input – Standard male XLR socket: pin 1: ground (shield), pin 2: +ve, pin
3: -ve
