Livedrive V2
User Manual
0.0 Quick Start
This quick start guide offers a simple way to set the Livedrive V2 up in a practical
application.
NOTE: Make sure you know the limitations of your loudspeakers before setting up a
system with the Livedrive V2. Ensure that the unit and all power amps are powered
off before making any connections to/from the Livedrive. Always make sure that
power amps are the last units turned on, and the first units turned off.
0.1 Connections
 Ensure power is off to the device and power amplifiers, connect the
output signal from the sending device (mixer) via XLR to input A (mono
signal), or input A+B (stereo signal).
 Connect appropriate connections from the output XLR connectors to
the power amplifier(s), depending on the routing configuration suitable
to the loudspeaker system. E.g.
 1-way – Outputs 1+2 (full range of frequencies)
 2-way – Outputs 1+2 (LF), Outputs 3+4 (HF)
 3-way – Outputs 1+2 (LF), Outputs 3+4 (MF), Outputs 5+6 (HF)
 4-way – Outputs 1+2 (VLF), Outputs 3+4 (LF), Outputs 5+6
(MF), Outputs 7+8 (HF)
NOTE: There are many more routing options other than the examples but these
options are basic configurations for beginners.

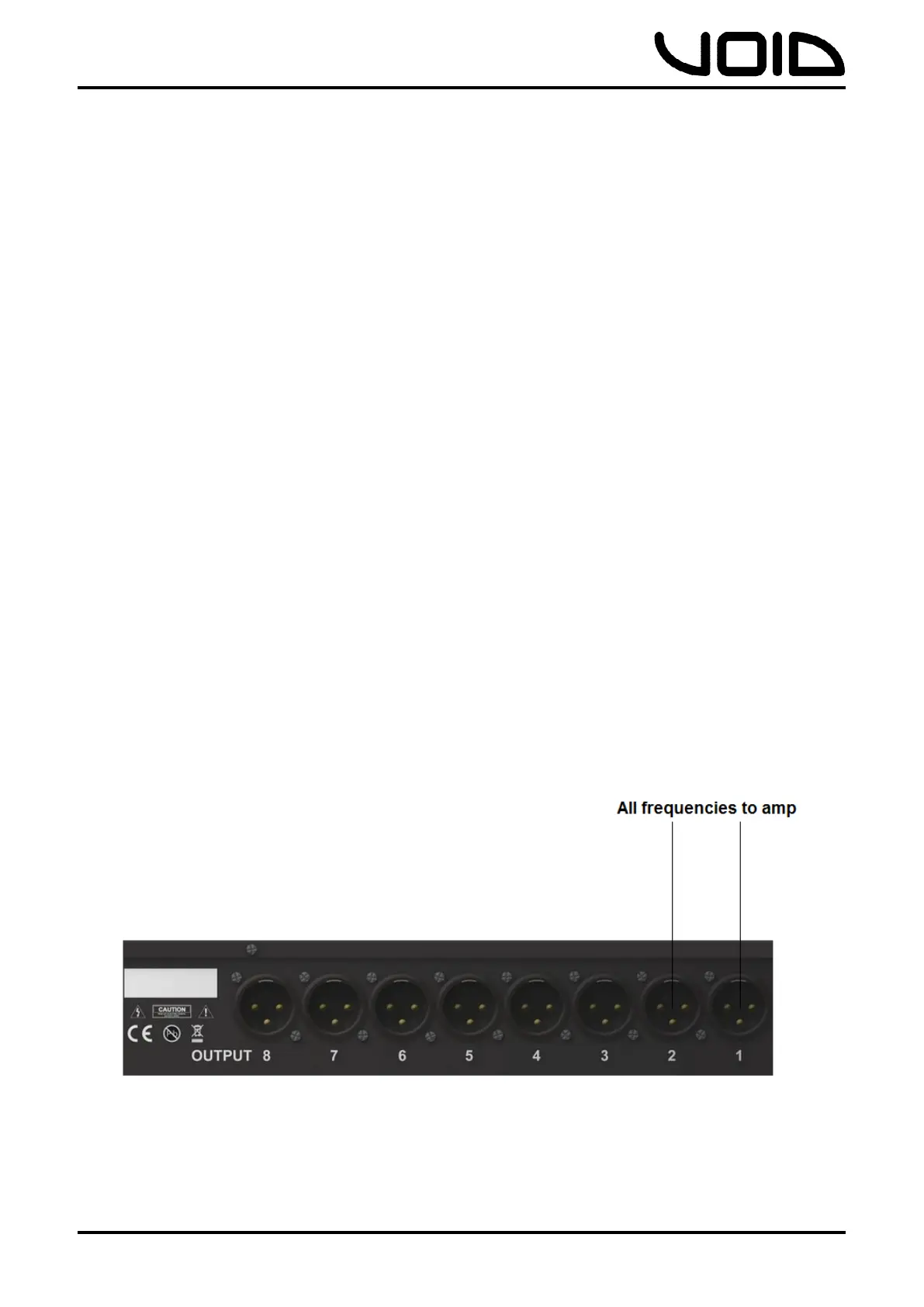

1-way
