18

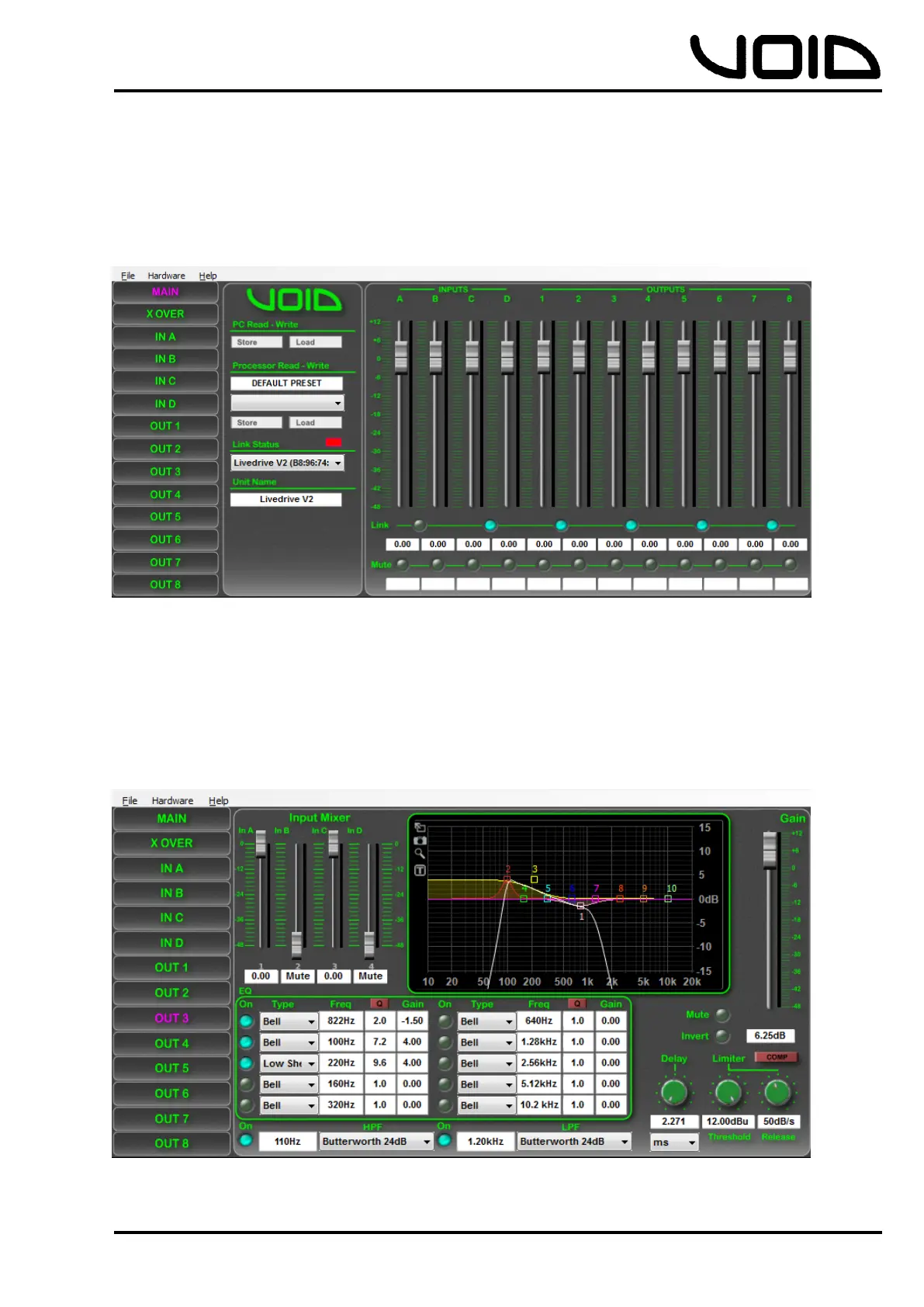

7.0 Live Link Control Interface
The Livedrive V2 is enhanced by the Live Link software for Windows and Mac OSX
which allows the user to have real-time, remote control via either USB or Ethernet.
Utilizing this software makes using the Livedrive V2 easier for the user to manipulate
and monitor the device, as it provides more accurate control over each parameter.
Users have separate tabs for each Input and Output channel, as well as a tab
specifically for the crossovers, which, with the Graphical User Interface (GUI) makes
it easier to physically see the changes in LPF/HPF or EQ. The limitation of 100
preset programs on the Livedrive V2 does not necessarily apply when using the Live
Link software, as more programs can be created and stored even when the device
isn’t connected. The device must be connected in order to write/modify programs on-
board.
