Product description
The multimeter (referred to as DMM in the following) indicates measured values on the digital display
together with the units and symbols. The measuring value display of the DMM comprises 11,000
counts (count = smallest display value).
If the DMM is not operated for approx. 15 minutes, it turns itself off automatically. This saves the bat-
teries and ensures longer operating time. This cut-off function can be deactivated manually.
The measuring device can be used for do-it-yourself or for professional applications.
For better readability, the DMM can also be mounted with the clip on the rear.

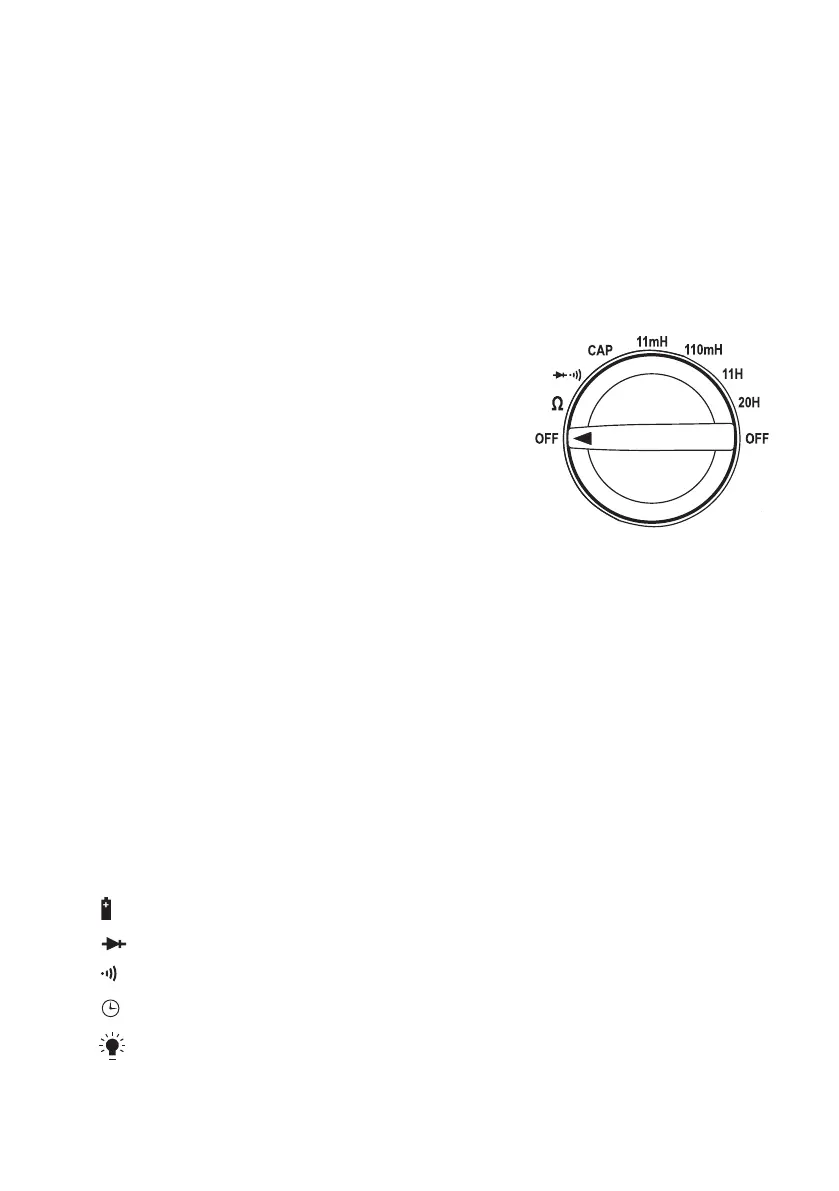

Rotary switch (5)
The individual measuring functions are selected via a rotary
switch. The automatic range selection “auto range” is active
with the measuring functions resistance and capacity. The
appropriate range of measurement is set for each application
individually.
The diode and continuity test range has a dual assignment.
These functions are switched with the button with the diode
symbol (4). Each press switches the function.
If the rotary switch is set to “OFF”, the measuring device is
switched off. Always turn the measuring device off when it is
not in use.
Display indications and symbols
This is a list of all possible symbols and statements on the DMM.
AUTO Automatic range selection is active
MANU Manual range selection is active
RANGE Button for switching the measuring range selection (only in auto range)
HOLD Data hold function is activated
OL Overload, the measuring range was exceeded
OFF Off position. The DMM is switched off.
Symbol for battery change
Symbol for the diode test
Symbol for the acoustic continuity tester
Symbol for active automatic cut-off (auto power off)
Symbol for display illumination
