Tipping
NOTE!
When dumping, machine speed should be below 10 km/h (6.2
mph). At higher speed the machine's load body cannot be
elevated.
When dumping, the following points should be observed:
stand the machine straight and with the load unit on a level,
solid ground surface
make sure that no persons are near the machine
If conditions permit, dumping may be carried out on the move.
Lower position with hold function = position 1
Used when lowering the body. The position has hold function on
the lever. When the body has reached its lowest position the lever
goes automatically to position 3.
End-position damping makes the load body stop smoothly against
the frame.
NOTE!
If the operator leaves the operator's seat, the dump lever
automatically goes to hold position.
Lowering position = position 2
Lowering position without hold function.
Hold position/Float position = position 3
Used to interrupt dumping or lowering movement. The load body
stops in the reached position. Goes automatically to float position
if the load body is in its lowest position. (See also position 1).
Float position shall be used for all operation with empty or loaded
load body.
The dump lever goes to position 3 if the operator leaves the seat
or turns off the machine with the ignition key.
Dumping position = position 4
Used when dumping. The load body has automatic end-position
damping. Can be activated/deactivated via the information
display unit, see page
62
.
Dumping against hard stop = position 5
End-position damping is deactivated if the lever is moved past the
dumping position when the load body approaches the upper end-
position. This is to enable shaking material loose from the load
body.
Max. dump height
Max. dump height can be adjusted. Can be used when the
machine is in areas with limited height. See page
52
.
Relative dump height
When dumping and the machine is leaning uphill, the max. dump
height is adjusted in relation to the inclination.

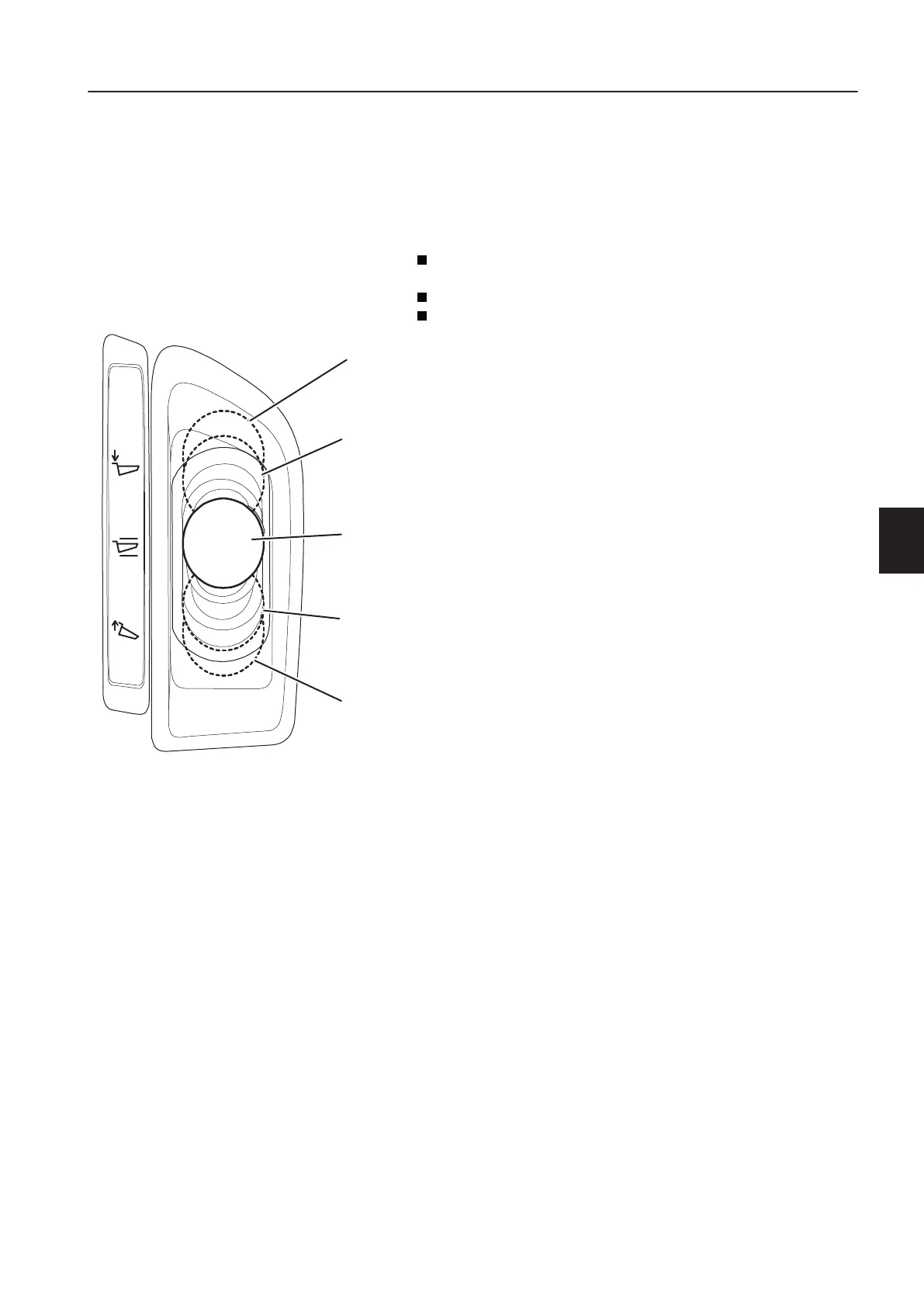

1 Lowering position with hold function
2 Lowering position
3 Hold position/Float position
4 Dumping position
5 Dumping against hard stop
Operating instructions
Tipping
217
