Volvo A30G - Instrument Panel, Centre

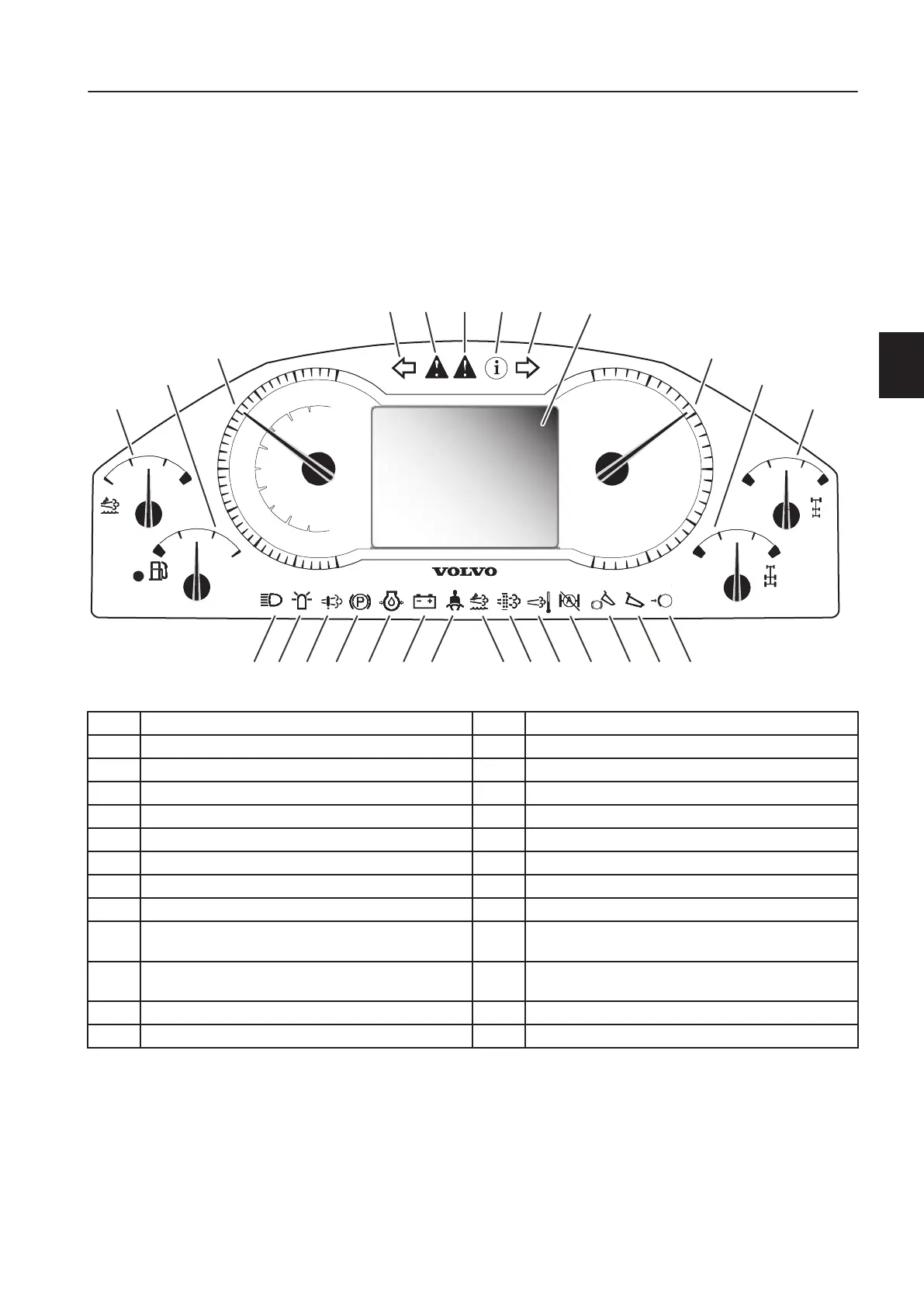

Instrument panel, centre
Instrument panel, centre
At start all control lights come on for a few seconds. If any of these
lights do not turn on when the ignition key is turned to operating
position (1), the light is defective or there is a malfunction in the
electrical system. This should be taken care of before start.
V1201363
5
0
80
0
10
km/h
20
30
40
50
10
20
30
40
mph
60
70
30
25
20
15
10
r/min x 100
26
25
24
201918 21 22
23
17
16
15
1
141312111098
72 3 4 5 6
1 High beams (blue) 14 Service brakes applied (green)
2 Rotating beacon (yellow) 15 AdBlue®/DEF-level
3 DPF particulate filter, malfunction (yellow) 16 Fuel level
4 Parking brake (red) 17 Speedometer
5 Low engine oil pressure (red) 18 Direction indicator, left (green)
6 Charging failure (red) 19 Central warning (red)
7 Seatbelt reminder (red) 20 Central warning (amber)
8 AdBlue®/DEF general warning (amber) 21 Central warning (green)
9 Regeneration requested (amber) 22 Direction indicator, right (green)
10 Regeneration in progress, high exhaust temperature
(amber)
23 Information display unit
11 ATC (Automatic Traction Control) disengaged
(yellow)
24 Tachometer
12 Load and dump brake (amber) 25 Accumulator pressure in trailer unit's brake circuit
13 Load body up (red) 26 Accumulator pressure in tractor unit's brake circuit
Instrument panels
Instrument panel, centre

45

