- assembled
2 The machine's serial number is stamped into the frame on the
left side of the tractor unit, by the steering joint.
3 The drive axles' serial numbers are located on the axle
housing.
4 The dropbox's serial number is located at the front, on its right
side.
5 The transmission's type designation and serial number are
located on its left side.
6 The decal ”Important Engine Information” is located on the
front of the engine and on the left side of the tractor unit's frame
by the steering joint.
7 The engine's type designation, part number, and serial
number are stamped into the engine on both sides.
8 Cab type, type approval, and serial number are located on the
left side in the cab, on the pillar to the left of the door (seen from
inside the cab), closest to the rear window.
9 Engine and exhaust decal with the engine's type designation
and component number.

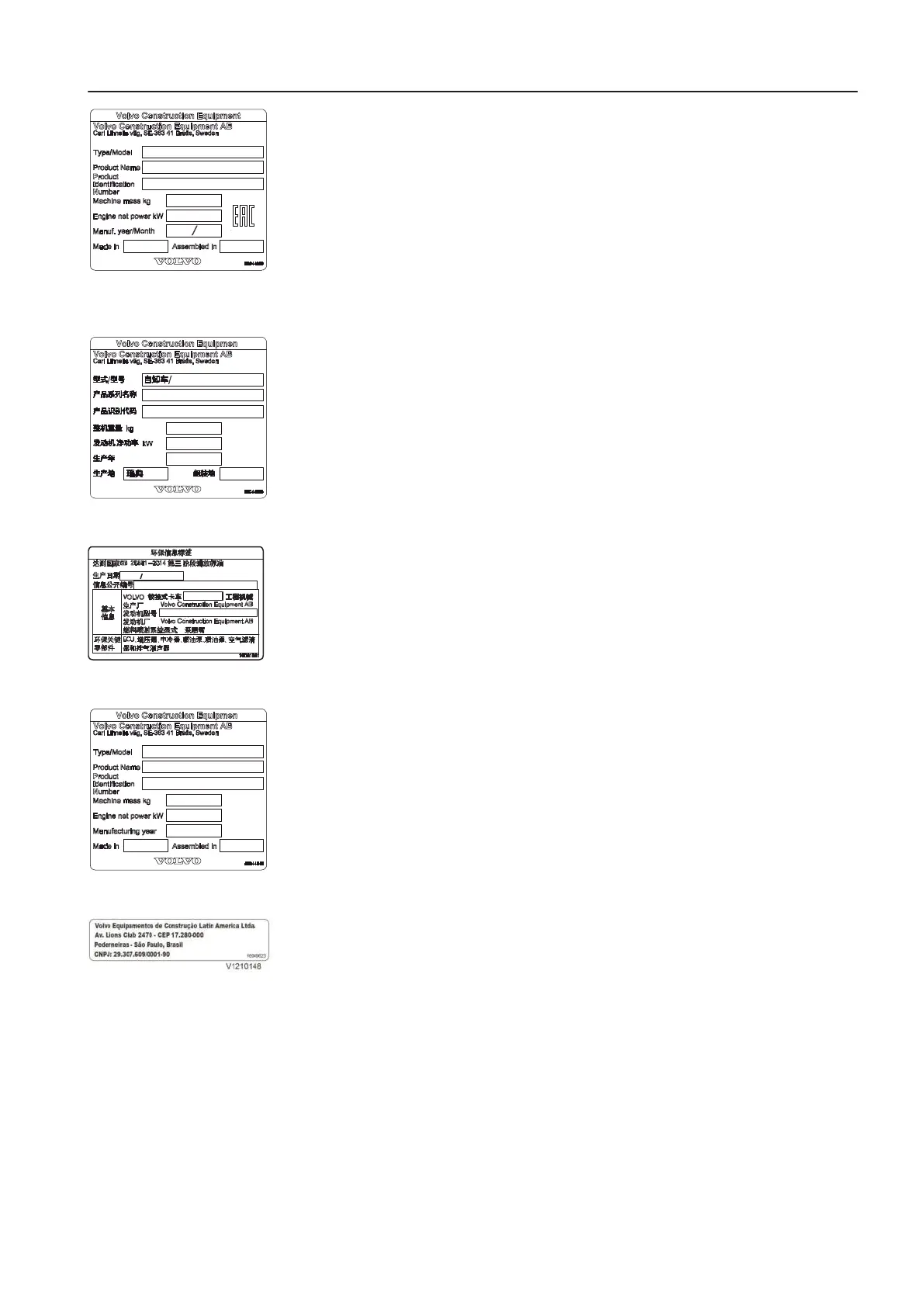

Data plate for countries within Eurasian Customs
Union
Data plate for China
Additional eco label for China
Data plate for rest of the world
Additional sign with Brazilian address
Product plates
31
