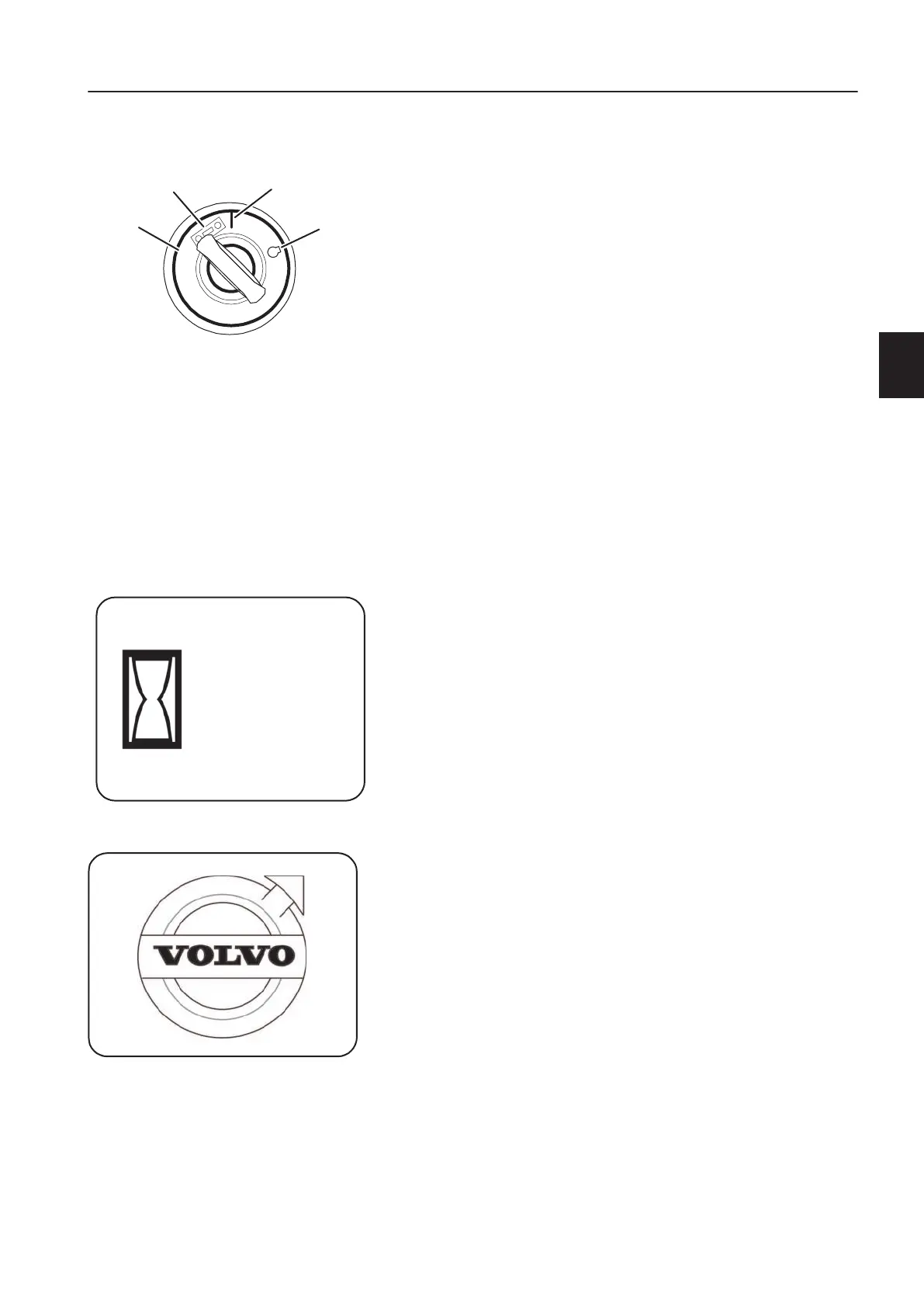

Display unit
The information display unit, located on the middle instrument
panel, shows start sequence, component information, operating
information, alarm display figures, and vehicle messages.
At start of electronics
Initial display
When the ignition is turned from position 0 to position R, the
machine's battery disconnector (main switch) connects the power
supply and accumulated machine hours are shown on the
information display unit for three minutes.
When the ignition is turned to position 1, the electronics start and
the control light test is run. Start display is shown on the
information display unit with a rotating Volvo logo.
This sequence takes a few seconds. Thereafter the electronics
are ready for engine start and the start key can be turned to start
position (position 2).
Ignition
0 Off position
R Radio position
1 Operating position
2 Start position
In position 0 the battery disconnector is OFF (after a
certain delay). It is ON in positions R, 1, and 2.
Machine hours
Volvo logo
Instrument panels
Display unit
51
