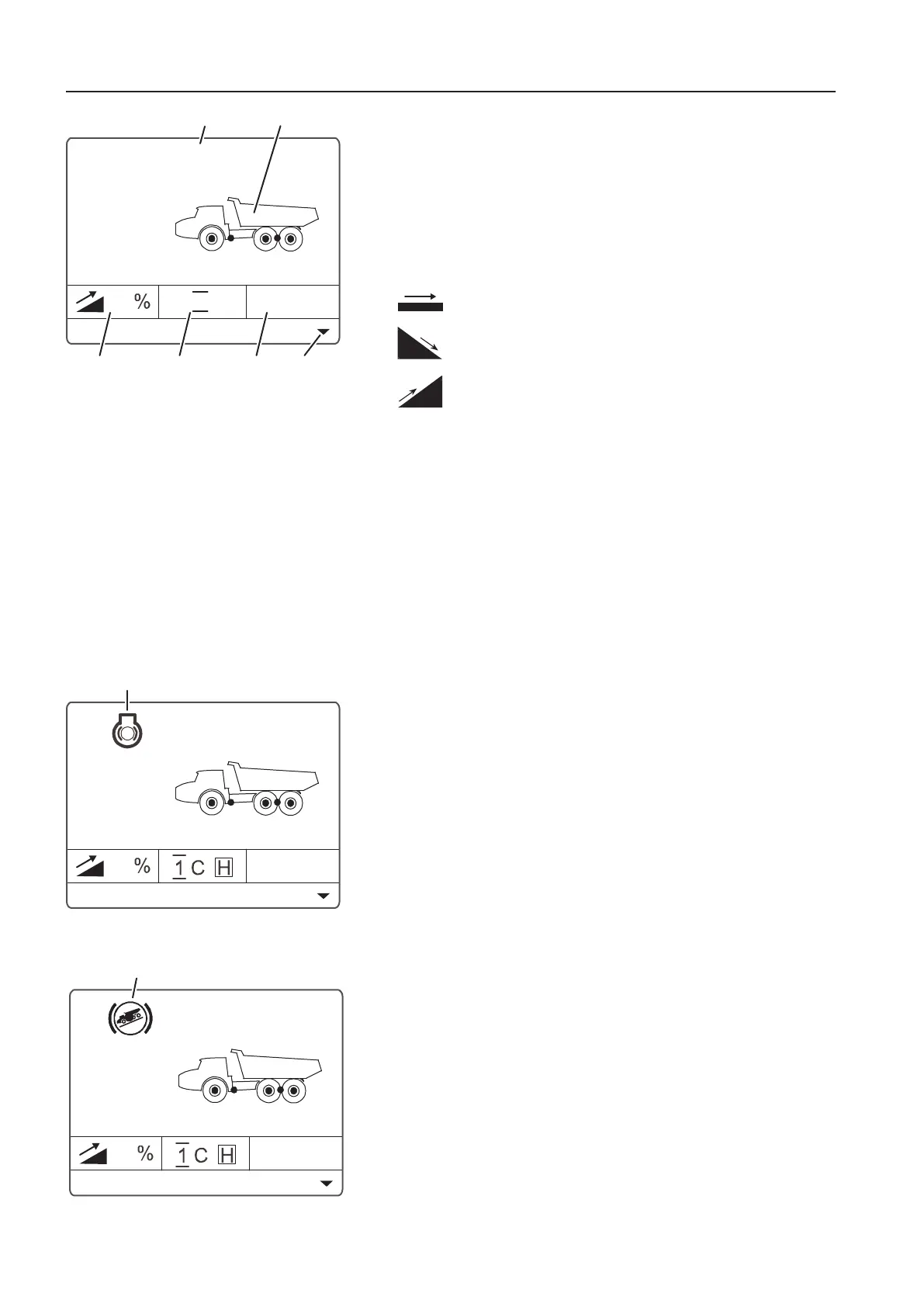

1 An clock is shown in the upper field of the operating display
when the machine is running.
2 The hauler is always shown in the operating display. This
display can also show, for example, if differential locks are
engaged or if the load body is up. Engagement of longitudinal
differential lock and 6x6–drive is shown on the hauler.
3 Angle indicator (inclination), longitudinal
Grade less than 3%
Grade downhill in %
Grade uphill in %
4 Gear indicator shows active gear; N/1/2/3/4/5/6/R1/R2.
A 'C' is shown after the gear indication, when Forward or
Reverse gear is active, and if the Lock–up clutch (see page
16
)
is disengaged.
A line above and below, respectively, the gear indication
shows that the gearshift lock-out function (see page
184
) is
engaged.
5 Ambient temperature.
6 Several selections possible. When operating display 1 is
shown, it is possible to use the arrow down key on the keypad
for the operating information display unit (see page
52
) to
select operating display 2.
7 The symbol for Engine retarding is shown when it is activated
(also see page
190
).
8 The symbol for Downhill Speed Control (applies to machines
with this function) is shown when it is activated (also see page
252
).
3
15 °C
4
14:59
V1201222
2
3
4 5
6
1
Operating display 1
Alternative operating display 1
Alternative operating display 1 applies to machines
with Downhill Speed Control
54
Instrument panels
Display unit
