Group 25 Intake and Exhaust System Service Procedures
Service Procedures
2562-03-02-01
Air Filter Element, Replacement
Before working on a vehicle, set the parking brakes,
place the transmission in neutral, and block the
wheels. Failure to do so can result in unexpected
vehicle movement and can cause serious personal in-
jury or death.
WARNING
HOT ENGINE! Keep yourself and your test equipment
clear of all moving parts or hot engine parts and/or
fluids. A hot engine and/or fluids can cause burns or
can permanently damage test equipment.
CAUTION
When removing and installing the intake manifold on
engines equipped with VEB, keep the work area as
clean as possible to prevent impurities from entering
the oil system. This also applies to the compression
brake oil delivery pipe between the cylinder block and
intake manifold.
Removal
1
Apply parking brakes. make sure the
shift lever is in neutral.
2
Tilt hood.
3
W2000940

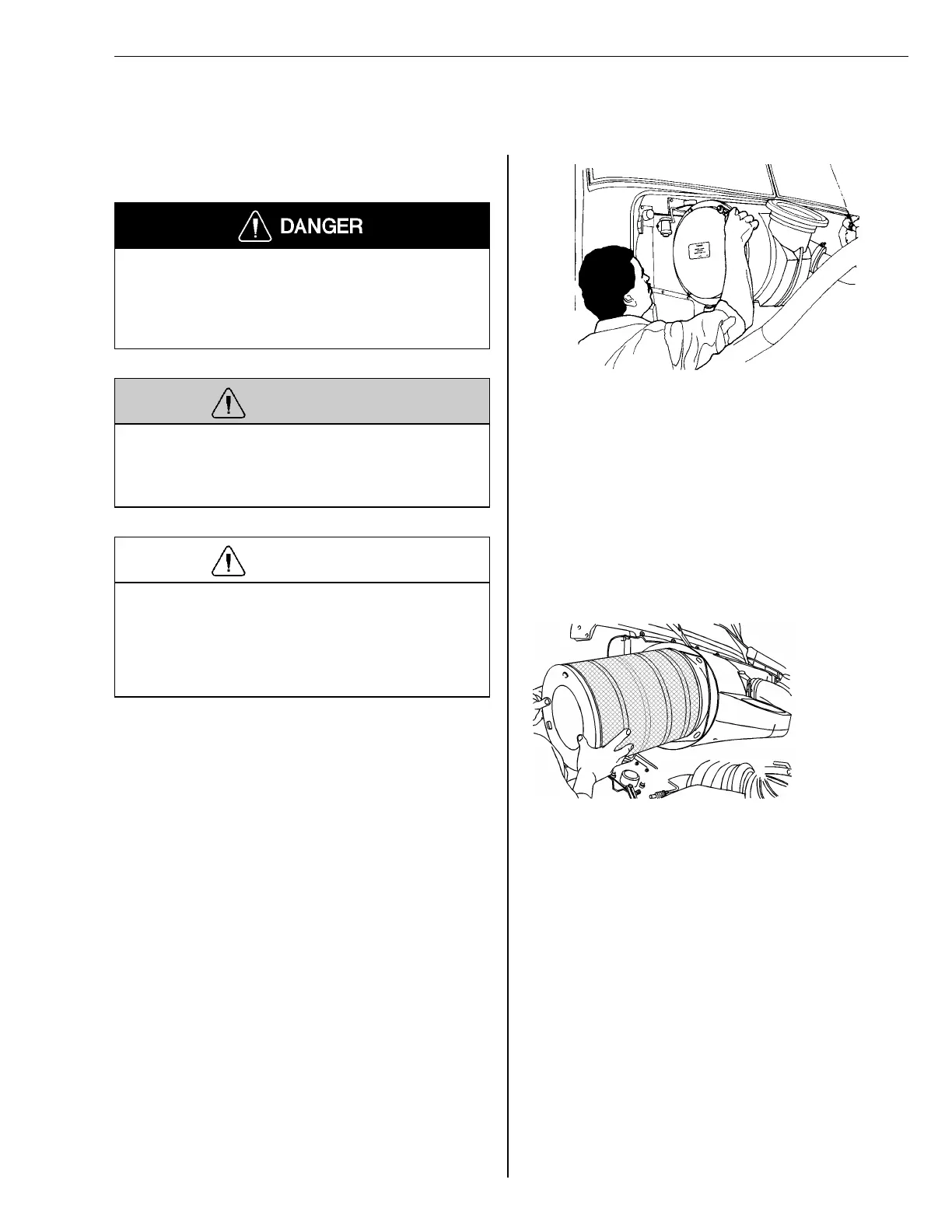

Fig. 31: Removing the endcap,(WG, AC)
Remove the endcap by removing the
hardware (depending on the type of
endcap) that attaches the endcap to
the air filter.
Note: The type of hardware used to
hold the endcap varies, depending on
the style of air cleaner and air cleaner
assembly.
4
W2002051
Fig. 32: Removing the air filter (VN,VHD and VNM)
Remove the air filter.
