Group 25 Intake and Exhaust System Design and Function
Crankcase Ventilation
D12C
The D12C has new crankcase ventilation with its outlet
from the upper timing gear cover.
The timing gear cover is designed with an oil trap to pre-
vent oil from escaping through the ventilation tube.
T2012791

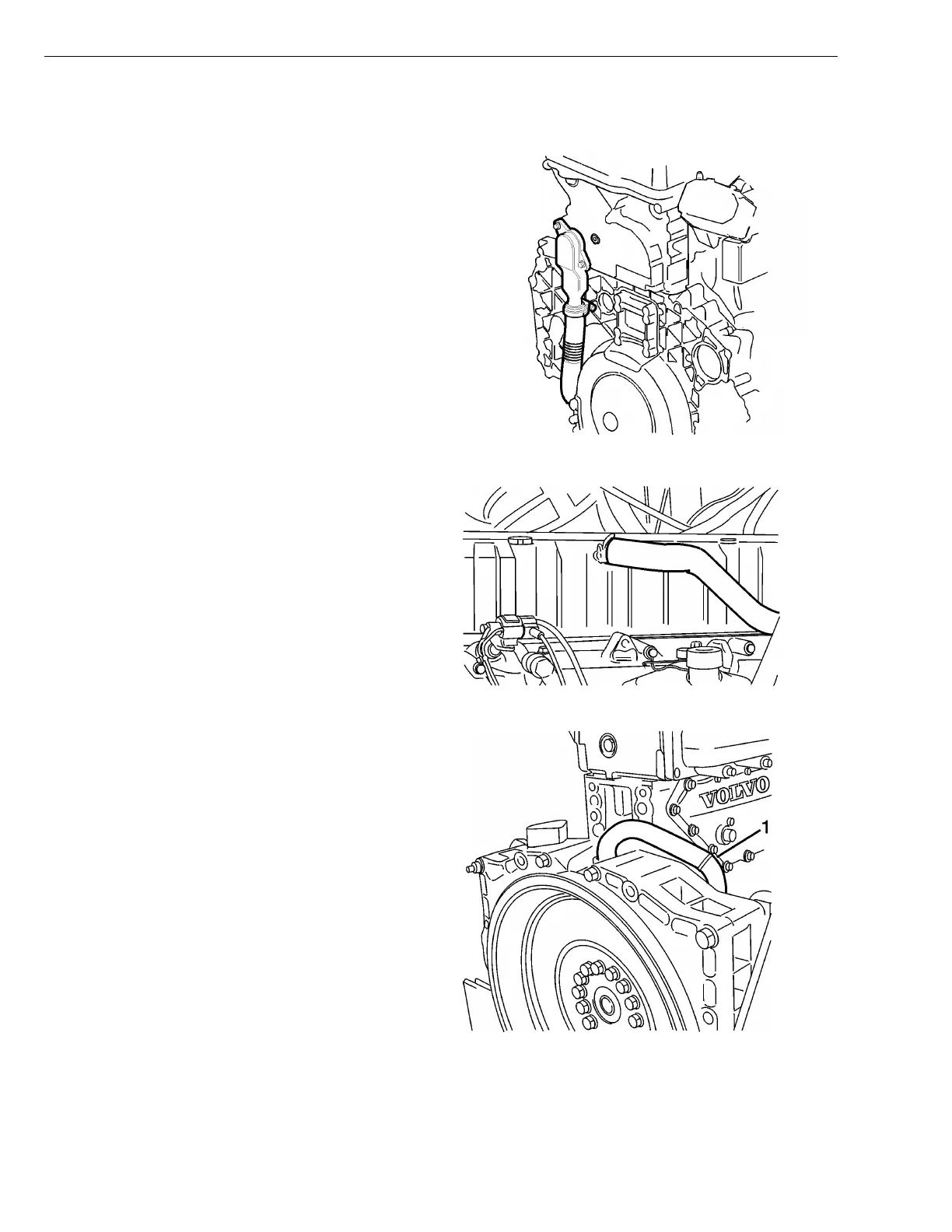

Fig. 14: Crankcase Ventilation, D12C
W2003503
Fig. 15: Crankcase Ventilation, D12B and D12C
W2003504
Fig. 16: Crankcase Ventilation, D12A
