Volvo L60F - Middle Instrument Panel with Warning Lights

Middle instrument panel with warning lights
Regarding: L60F, L70F, L90F
0
rpm
V1049000
4
5
6
7
8
9
1
23
10
11
13
14
15
17
12
Fig.13

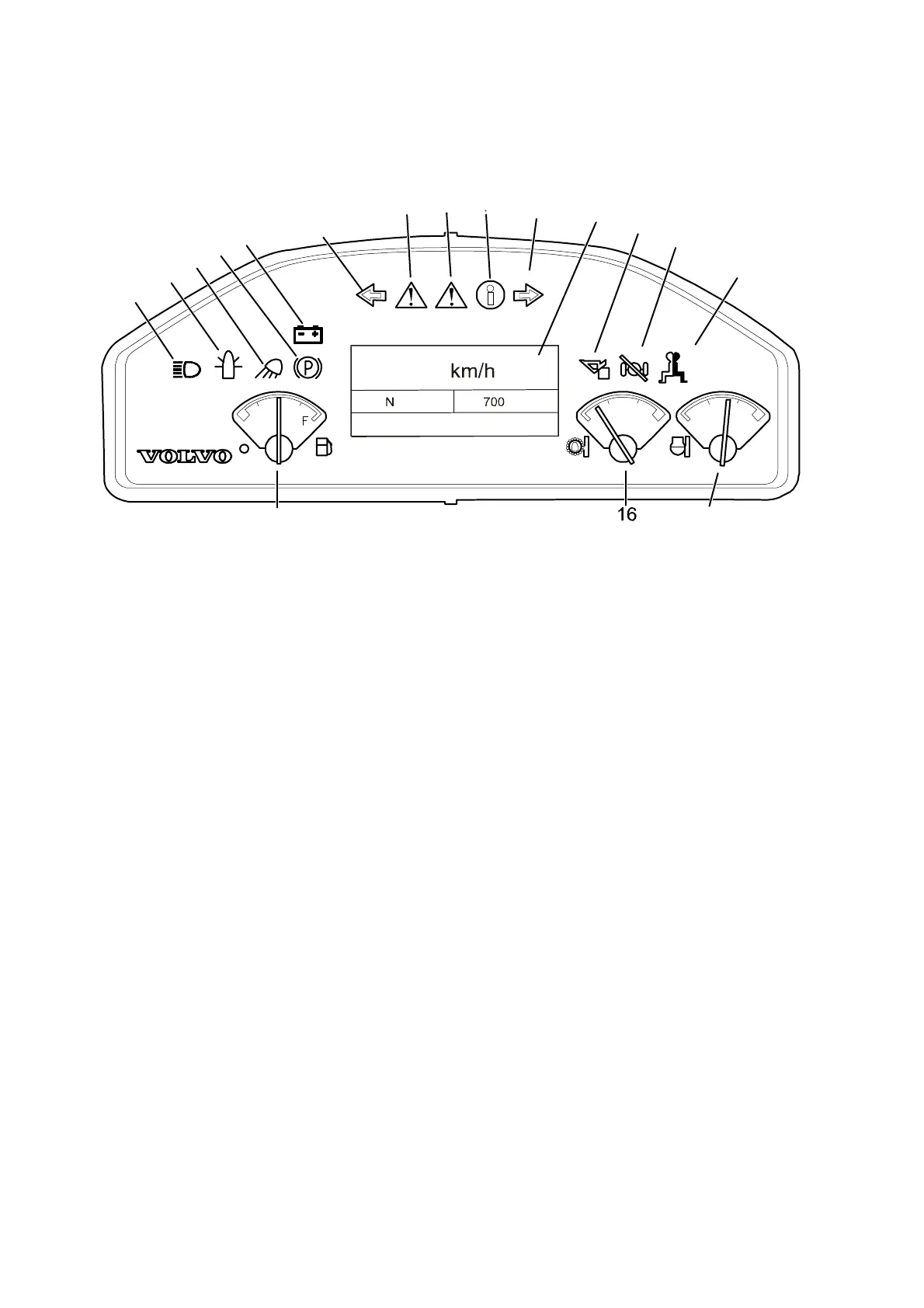

1 Amber central warning 11 Display unit
2 Red central warning 12 Boom Suspension System activated (green)
3 Information symbol (green) 13 Differential lock engaged (green)
4 High beams (blue) 14 Lever steering activated (green)
5 Rotating beacon (amber) 15 Fuel level
6 Working lights (amber) 16 Transmission oil temperature
7 Parking brake applied (red) 17 Coolant temperature
8 Charging, battery (red)
9 Direction indicator left (green)
10 Direction indicator right (green)
