Volvo S40 2012 - Floor Harness, V50 LHD

348 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

TP 39212202 C30/S40 (04-)/V50/C70 (06-) 2012 261

Cable harness routing in vehicle

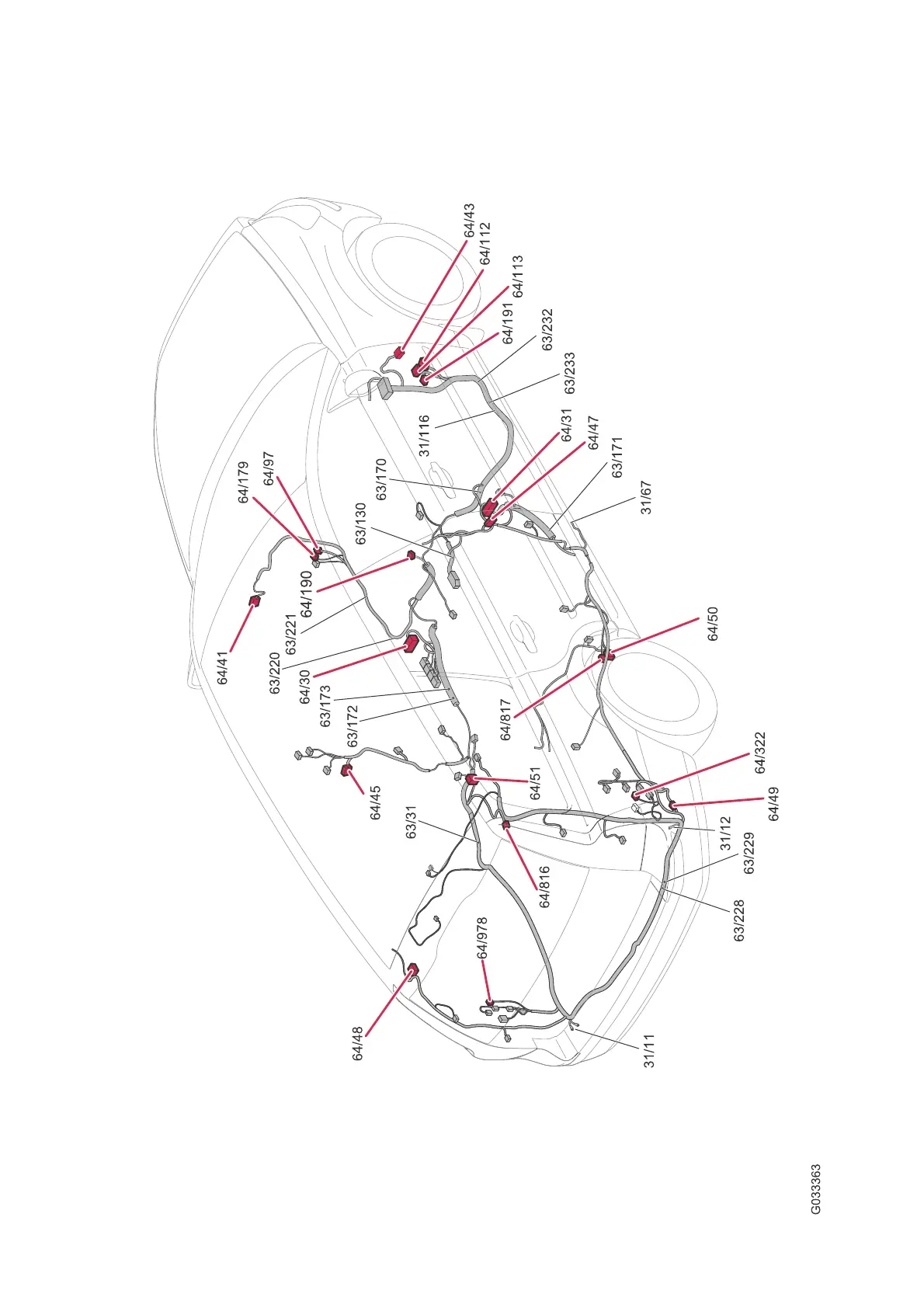

Floor harness, V50 LHD

Table of Contents

Default Chapter2
- Vehicles with SRS (Airbag)/Sips Bag/IC (Inflatable Curtain)2
- Table of Contents3
- Electrical Distribution 1:29
Fuses11
- Engine Compartment Distribution Box F1-F1011
- Distribution Box in Engine Compartment F11-F2012
- Distribution Box in Engine Compartment F21-F3113
- Distribution Box in Engine Compartment F32-F3414
- Distribution Box in Engine Compartment F35-FH115
- Main Fuse Box Battery16
- Fuse Holder MIDI17
- Central Electronic Module (CEM) F43-F4818
- Central Electronic Module (CEM) F49-F6119
- Central Electronic Module (CEM) F62-F6920
- Central Electronic Module (CEM) F73-F8521
- Central Electronic Module (CEM) F8622
- Battery PF1-PF223
Relays24
- Ignition Switch and Relays24
- Distribution Box in Engine Compartment R1-R1425
- Engine Compartment26
- Central Electronic Module (CEM) R15-R1827
- Central Electronic Module (CEM) R1-R11B28
- Other Relays29
Ground Connections30
- Overview30
- 31/3 - 31/10 Cont31
- Grounded to Chassis37
- Overview Locations38
Control Modules39
- Overview Designations39
- Central Electronic Module (CEM) 1:240
- Data Communication, Low Speed CAN 1:242
- Data Communication High Speed CAN44
- Data Communication most45
- Data Communication, LIN 1:246
- Ignition Switch (SCU)48
- Accessory Electronic Module (AEM)49
Group 26 Cooling System50
- Cooling Fan50
Group 27 Engine Controls51
- Cruise Control 4-Cyl51
- Tp 39212202 C30/S40 (04-)/V50/C70 (06-)51
- Cruise Control 5-Cyl52
- Start/Stop Function53
Group 28 Ignition System/Control System54
- Engine Management System, 4-Cyl. 1.6L 1:254
- Engine Management System, 4-Cyl. 2.0L 1:256
- Engine Management System, 5-Cyl. Turbo 1:258
- Engine Management System Diesel, 4-Cyl. 1.6L D4162T 1:260
- Engine Management System Diesel, 5-Cyl. 2.0L 1:362
- Emission Control 4-Cyl. 1.6L65
- Emission Control 4-Cyl. 2.0L66
- Emission Control 5-Cyl67
Group 32 Alternator and Voltage Regulator68
- Power Supply 4-Cyl68
- Power Supply 5-Cyl69
Group 33 Starting System70
- Starting System 4-Cyl70
- Starting System 5-Cyl71
Group 35 Lighting72
- High and Low Beam72
- Active Headlight, (Dual Xenon)73
- Running Light/Parking Light, Tail Lights S40/V5074
- Running Light/Parking Light, Tail Lights75
- (Dual Xenon) S40/V5075
- Running Light/Parking Light, Tail Lights C30/C7076
- Running Light/Parking Light, Tail Lights77
- (Dual Xenon) C30/C7077
- Brake Lights S40/V5078
- Brake Lights C30/C7079
- Reversing Lights S40/V5080
- Reversing Lights C30/C7081
- Fog Lights S40/V5082
- Fog Lights C30/C7083
- Fog Lights RHD Japan S40/V5084
- Fog Lights RHD Japan C30/C7085
- Interior Lighting C30/S40/V50 1:286
- Interior Lighting C70 1:288
- Follow-Me-Home Lighting90
- Instrument and Control Illumination91
- Auxiliary Lights92
Group 36 Additional Electrical Equipment93
- Direction Indicator and Hazard Warning Flashers S40/V5093
- S40/V5093
- Direction Indicator and Hazard Warning Flashers94
- (Dual Xenon) S40/V5094
- Direction Indicator and Hazard Warning Flashers C30/C7095
- C30/C7095
- Direction Indicator and Hazard Warning Flashers (Dual Xenon) C30/C7096
- Wiper/Washer Windshield97
- Washer Headlights98
- Wiper/Washer Rear Window C30/V5099
- Rain Sensor100
- Parking Assistance101
- Keyless Vehicle C30/S40/V50 1:2102
- Keyless Vehicle C70 1:2104
- Immobilizer/Steering Column Lock (SCL)106
- Horn107
- Anti-Theft Alarm C30108
- Anti-Theft Alarm S40/V50109
- Anti-Theft Alarm C70110
- Alcohol Lock111
- Accessory Electronic Module (AEM) C30112
- Accessory Electronic Module (AEM), S40/V50/C70113
Group 37 Wiring and Fuses114
- Outlet C30/S40/V50114
- 12V Outlet, C70115
- Diagnostics System116
- Cable Harness Towbar/Tow Hitch 4-Pin S40/V50117
- Cable Harness Towbar/Tow Hitch 4-Pin C30118
- Cable Harness Towbar/Tow Hitch 7-Pin S40/V50119
- Cable Harness Towbar/Tow Hitch 7-Pin C30/C70120
- Cable Harness Towbar/Tow Hitch 13-Pin S40/V50/C70121
- S40/V50/C70121
- Cable Harness Towbar/Tow Hitch 13-Pin C30122
- Accessory USB Unit (AUU)123
Group 38 Instruments124
- Driver Information Module124
- Seat Belt Reminder C30/S40/V50125
- Seat Belt Reminder C70126
Group 39 Other127
- Audio C30/S40/V50127
- Alternative Connection Audio S40/V50128
- Audio C70129
- Audio High Performance/Premium Sound C30/S40/V50 1:2130
- Audio High Performance/Premium Sound C70 1:2132
- Tp 39212202 C30/S40 (04-)/V50/C70 (06-)133
- Cellular Phone 1:2134
- Multimedia & Traffic Information136
- Satellite Radio137
- Subwoofer C70138
- Navigation System, Portable139
- Bluetooth140
- Bluetooth Handsfree, Internal Amplifier141
- Bluetooth Handsfree, External Amplifier142
- Bluetooth Handsfree & AUU, Internal Amplifier143
- Bluetooth Handsfree & AUU, External Amplifier144
- Bluetooth Handsfree with AEM, Internal Amplifier, LHD145
- Bluetooth Handsfree with AEM, Internal Amplifier, RHD146
- Bluetooth Handsfree with AEM, External Amplifier, LHD147
- Bluetooth Handsfree with AEM, External Amplifier, RHD148
Group 43 Transmission149
- Automatic Transmission AW55-51149
- Automatic Transmission AWF21150
- Transmission M66151
- Automatic Transmission MPS6152
Group 59 Brake System Brake Control System & STC153
- Brake Control System & DSTC154
Group 64 Steering155
- Speed Dependent Power Steering155
- Central Locking Front Doors C30/S40/V50156
- Central Locking Rear Doors S40/V50157
- Central Locking C70158
Group 83 Doors and Openings159
- Central Locking Trunk Lid/Tailgate C30159
- Central Locking Trunk Lid/Tailgate S40/V50160
- Central Locking Trunk Lid/Tailgate C70161
- Central Locking Storage Compartment C70162
- Child Safety Lock S40/V50163
- Central Locking Fuel Filler Flap164
- Signal Receiver Central Locking C30/S40/V50165
- Signal Receiver Central Locking C70166
- Power Windows Front Doors C30/S40/V50167
- Power Windows C70168
- Power Windows Rear Doors S40/V50169
- Power Sunroof C30/S40/V50170
- Power Roof C70171
Group 84 Exterior Decorative Elements, Etc172
- Power Door Mirrors C30/S40/V50172
- Power Door Mirrors C70173
- Heated Door Mirrors174
- Heated Rear Window175
- Blind Spot Information System176
Group 85 Interior Equipment177
- Power Driver's Seat with Memory Function LHD S40/V50177
- S40/V50177
- Power Driver's Seat with Memory Function RHD S40/V50178
- S40/V50178
- Power Driver's Seat with Memory Function LHD C30/C70179
- C30/C70179
- Power Driver's Seat with Memory Function, RHD C30/C70180
- C30/C70180
- Power Driver's Seat LHD181
- Power Driver's Seat RHD182
- Power Passenger Seat LHD S40/V50183
- Power Passenger Seat RHD S40/V50184
- Heated Seats185
Group 87 Climate Control System186
- Climate Control System PTC-Elements186
- Climate Control System, 4-Cyl. Gasoline 1:2187
- Climate Control System, Diesel 1.6L 1:2189
- Climate Control System, 5-Cyl. 1:2191
- Parking Heater, Auxiliary Heater193
- Relay, Electric Engine Heater194
- Electric Engine Heater Flexifuel195
Group 88 Internal Equipment196
- Rear-View Mirror with Automatic Dimming196
- Supplemental Restraint System C30/S40/V50 1:2197
- Supplemental Restraint System C70 1:2199
- Remote Control Garage Opening201
Connectors202
Branching Points240
Cable Harness Routing in Vehicle252
- Engine Harness, Gasoline 4-Cyl.1.6L252
- Engine Harness, Gasoline 4-Cyl.2.0L252
- Engine Harness, Gasoline 5-Cyl. Turbo253
- Engine Harness, Diesel 1.6L253
- Tp 39212202 C30/S40 (04-)/V50/C70 (06-)253
- Harness Engine, Diesel 2.0L254
- Engine Compartment Harness, 4-Cyl255
- Engine Compartment Harness, 5-Cyl255
- Harness Dashboard, LHD256
- Harness Dashboard, RHD256
- Floor Harness, C30 LHD257
- Floor Harness, C30 RHD258
- Floor Harness, S40 LHD259
- Floor Harness, S40 RHD260
- Floor Harness, V50 LHD261
- Floor Harness, V50 RHD262
- Floor Harness, C70 LHD263
- Floor Harness, C70 RHD264
- Roof Harness, C30265
- Roof Harness, S40265
- Roof Harness, V50266
- Roof Harness, C70266
- Tunnel Harness, C30/S40/V50267
- Tunnel Harness, C70267
- Driver's Door Harness, C30268
- Passenger Door Harness, C30268
- Driver's Door Harness, S40/V50269
- Passenger Door Harness, S40/V50269
- Driver's Door Harness, C70270
- Driver's Door Harness Supplement, C70270
- Passenger Door Harness, C70271
- Passenger Door Harness Supplement, C70271
- Harness Rear Door, Right S40/V50272
- Harness Rear Door, Left S40/V50272
- Rear Side Panel Harness, Left C70273
- Rear Side Panel Harness, Right C70273
- Trunk Lid/Tailgate Harness, C30274
- Trunk Lid/Tailgate Harness, S40274
- Trunk Lid/Tailgate Harness, V50275
- Trunk Lid/Tailgate Harness, C70275
Component Illustrations276
Index 1:2333
- Table of Contents334
List of Components 1:7335
