VORON TAP - Toolhead Clearance and Attachment; Leave Room for Toolhead Mating

25
WWW.VORONDESIGN.COM
(2) M3x16 SHCS
(2) M3x20 SHCS

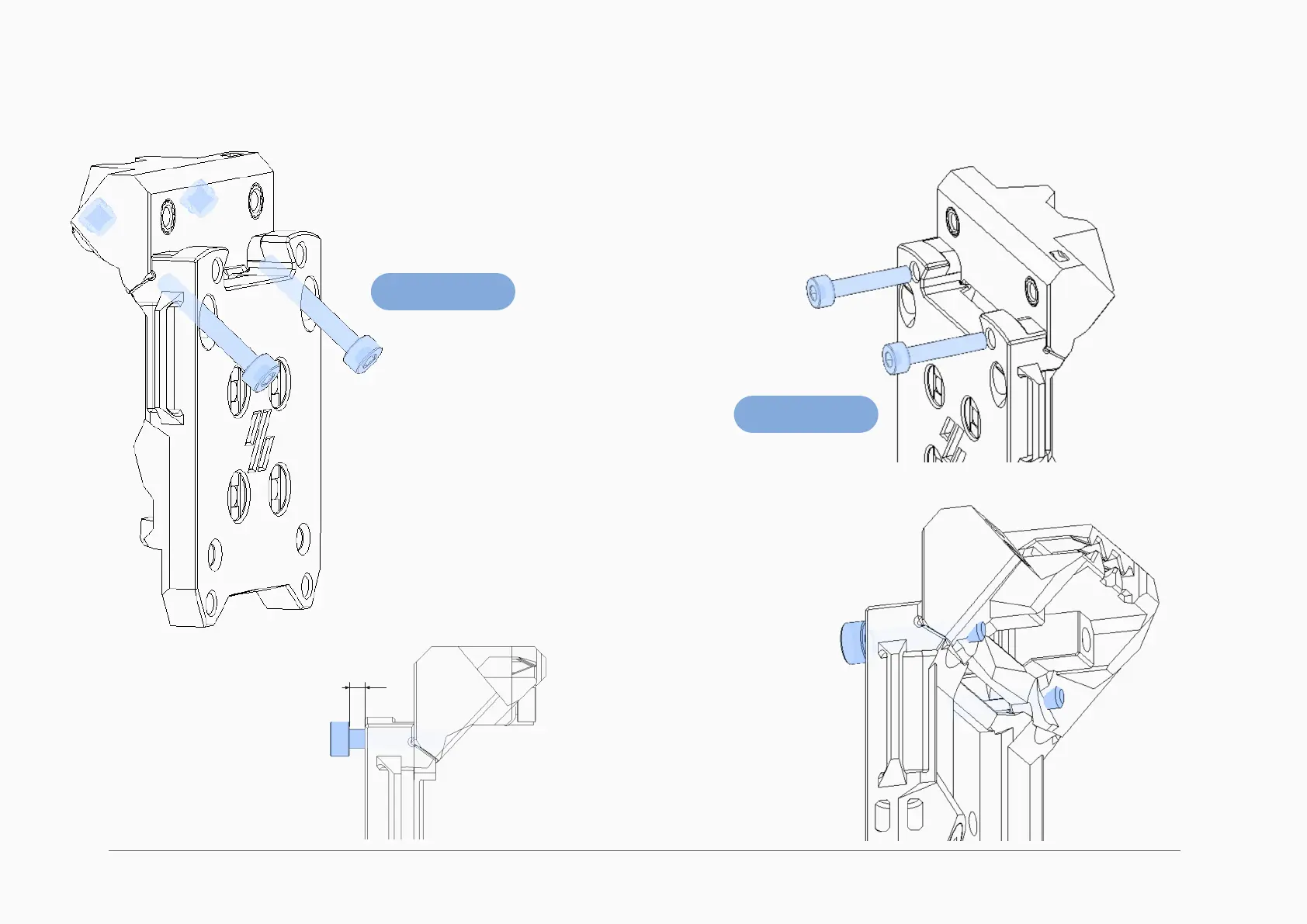

LEAVE ROOM FOR THE TOOLHEAD
The M3x16’s thread into the plastic directly.
Don’t tighten fully, leave approximately 2.5
mm for the toolhead to mate with them.
2.5 mm
