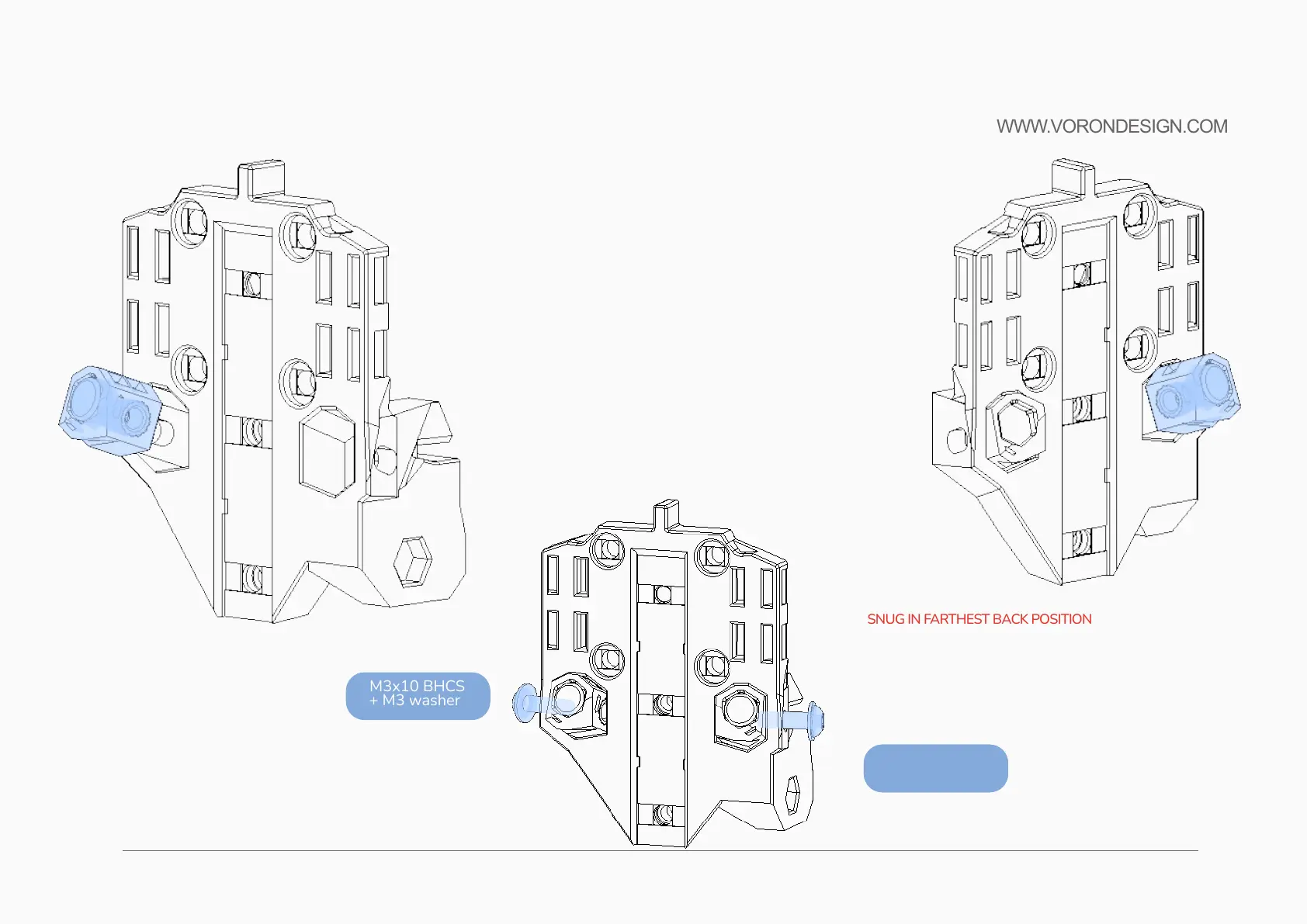

ASSEMBLE CENTER
2 DOTS LEFT, ONE DOT RIGHT
The magnet holders are marked with dots.
The left has two dots, the right has one dot.
We could say that there is only one way they
t, but we don’t want to underestimate you.
SNUG IN FARTHEST BACK POSITION
These are the magnet adjustment screws. For now,
just snug them up with the magnet holders as far
back as they will go. We’ll adjust them later.
M3x10 BHCS
+ M3 washer
M3x10 BHCS
+ M3 washer
M3x10 BHCS
+ M3 washer
