VORON TAP - Center Assembly: Screws and Standoffs; Installing M3 Screws and Heatsets

29
WWW.VORONDESIGN.COM
ASSEMBLE CENTER
HEATSET USED AS STANDOFF

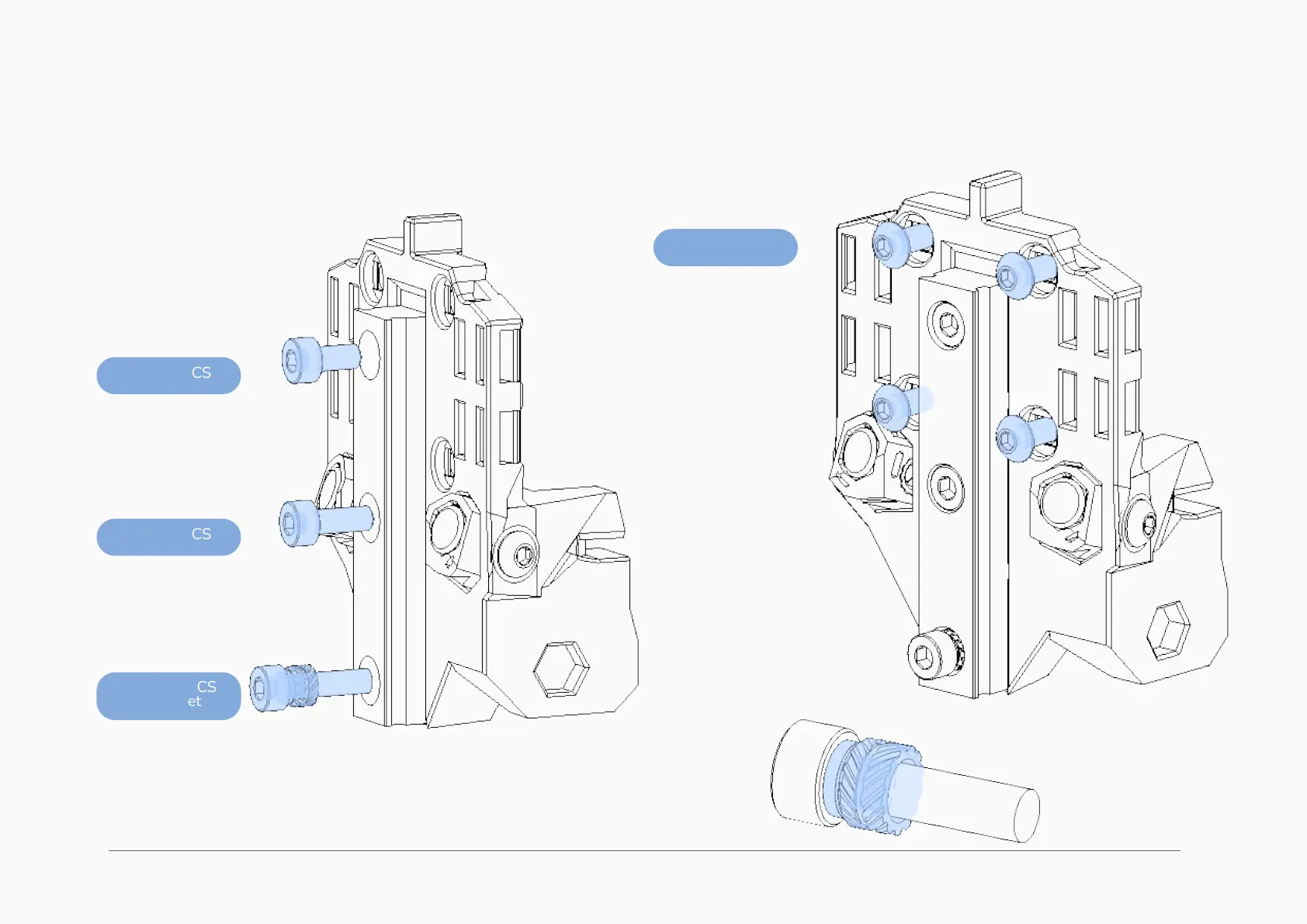

This heatset is used as a standoff. Thread it onto the M3x12 as shown before using the M3x12 to secure the
rail to the center. When tightened, the M3x12 head will still be above the rail surface and act as a carriage
M3x12 SHCS
+ heatset
M3x8 SHCS
M3x6 SHCS
(4) M3x6 BHCS
