5.1 Meaning of the air vents (fig.2)
A: Clean air supply toward inside
B: Stale air exhaust from inside
C: Fresh air intake from outside.
D:Stale air exhaust toward outside
6 Installation
Note well:The device is not suitable for outdoor installation.
The device must be installed in compliance with the safety regulations in force in the destination country and with the
instructions in this manual. The device must be installed on a surface or wall inside the dwelling that is structurally suitable
to support its weight (max 20 kg). Adhesives cannot be used for device installation. The connection of ventilation ducts to
the machine must be carried out with the aid of a tool.
6.1 Assembly

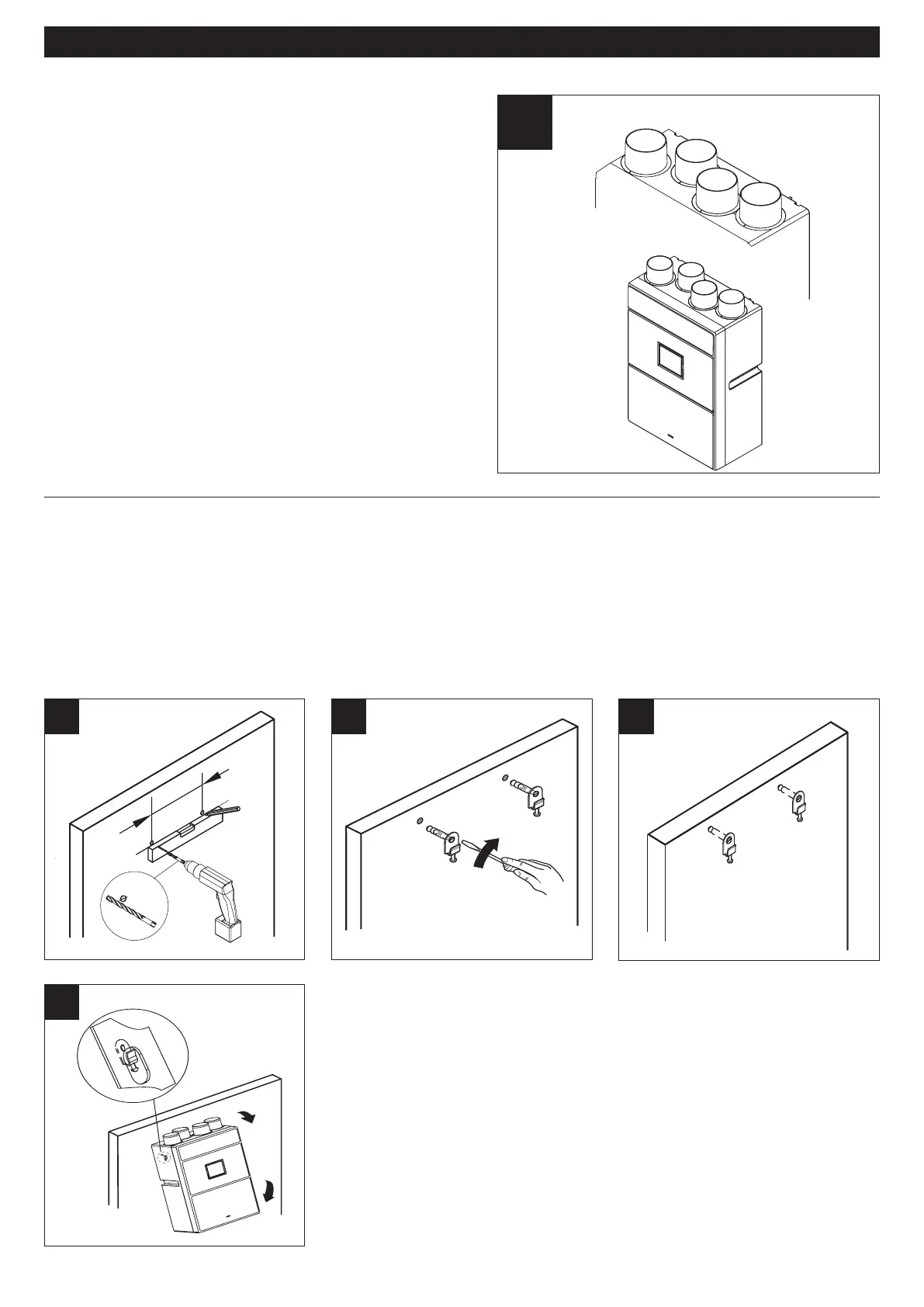

The device can be installed on a wall (fig.3,,,6,7)
300÷330 mm
9 mm
3
4 5
6
A
B
C
D
